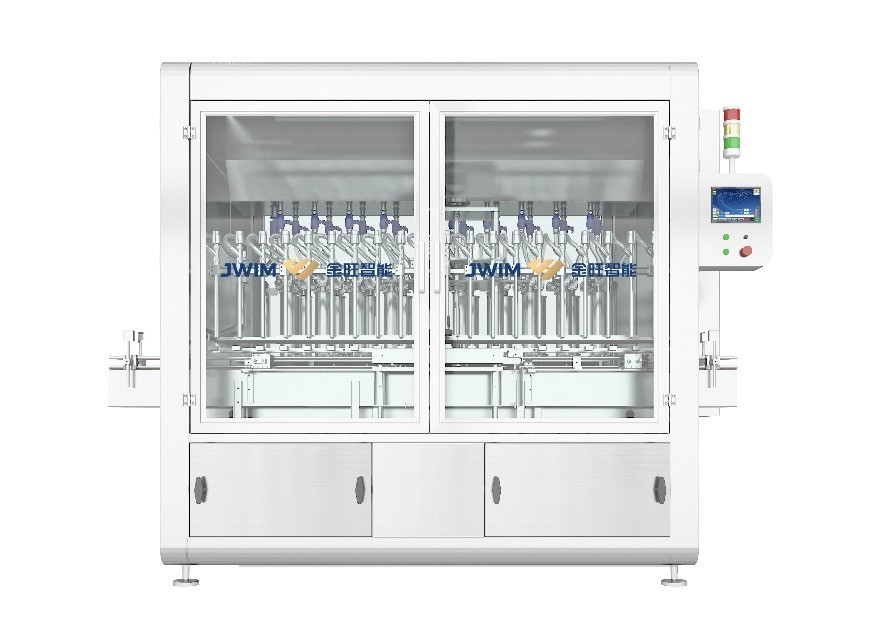

6000 BPH 100ml 16 Filling Heads Pesticide Piston Chemical Liquid Filling Machine Lubricating Oil Filling Machine
1. General Introduction of 16 Filling Heads Piston Liquid Filling Machine Horizontal 6000 BPH For 100ml Bottle
CCG1000-16TJ Pesticide Filling Machine measure and dispense free flowing products - such as thin and/or moderately dense liquids - onto a container. Each machine is equipped with 16 volumetric piston. Each fill/release cycle consists of an intake stroke, where the product is withdrawn from the container or hopper and taken into the product cylinder. The down stroke commences as soon as the product cylinder has reached its predetermined fill level. The piston pushes the product out of the cylinder and into the container.
The amount of product to dispense is set by a simple adjustment of the length of the piston stroke (the distance covered by the piston). Once the machine is set, the piston filler will dispense accurately and repeatedly. Two repeated cycles can be performed to fill volumes that are higher than the cylinder capacity.
Our Volumetric Piston Fillers Equipments are used by industries in the Agricultural, Animal Care, daily chemical, and lubricating oil fields.
2. Technical Parameters of 16 Nozzles Piston Liquid Filling Machine for Daily Chemical, Veterinary Drug
Capacity |
100ml: ≤6000 BPH 1000ml:≤3000 BPH
|
Applicable Bottle Size |
Round Bottle: Φ40-95mm Height:80-230mm Flat/Square Bottle: L: 40-95mm W: 40-95mm H: 80-230mm
|
Filling Volume |
50-1000ml
|
Filling Precision |
±1g (50-200ml) ±1.5g (200-500ml) ±2g(1000ml)
|
Filling Nozzle Diameter |
φ18mm
|
Power Source |
~380V 50Hz/3.55KW
|
External Dimension |
2435×1490×2480mm(L×W×H)
|
Weight |
About 1200kg
|
3. Electrical Configuration of Pesticide Chemical Liquid Filling Machine
No. | Name | Brand |
1 | PLC | Schneider |
2 | HMI | Schneider |
3 | Inverter | Schneider |
4 | Servo System | Schneider |
5 | Counting Sensor | SICK |
6 | Proximity Switch | Schneider |
7 | Power Switch | Schneider |
8 | Pressure Gauge | SMC |
9 | Cylinder | FTEC |
10 | Solenoid Valve | FTEC |
11 | Button | Schneider |
12 | Alarm Light | Schneider |
13 | Circuit Breaker | Schneider |
② The filling unit uses piston off structure, it can completely discharge the product in the tank, effectively avoid the cross-contamination. This structure also makes the sealing ring changing easier.
