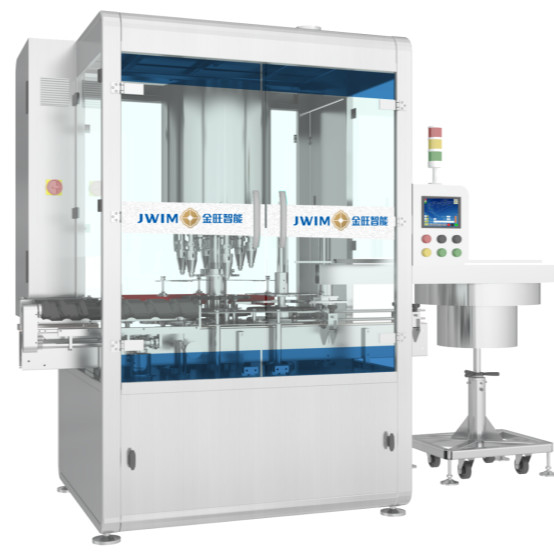

FX-8AS High Speed Pick And Place 8 Heads Automatic Capping Machine 4.0KW 100ml-1L

FX-8AS High Speed Pick And Place 8 Heads Automatic Capping Machine 4.0KW 100ml-1L

100ml-1L Automatic Capping Machine

8 Heads Automatic Capping Machine

4.0KW Automatic Capping Machine

Place of Origin:

made in China

Brand Name:

Jinwang

Certification:

CE,CO,ISO

Model Number:

FX-8AS

Contact Us
Request A Quote
Product Details
Model:
FX-8AS
Name:
High Speed Automatic Capping Machine(100ml-1L) 6/8 Capping Heads Pick And Place Type
Capping Speed:
Capping Capacity
Pass Rate:
≥99.5%
Cap Heads:
8 Heads
Power Source:
~380V/50Hz
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
wooden cases
Delivery Time
15-90 work days
Payment Terms
L/C, T/T
Supply Ability
10 sets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

8 Heads Automatic Capping Machine FX-8AS 4.0KW 100ml-1L High Speed Pick And Place



Pick and place type Rotary Capping Machine is used for closing plastics screw caps, especially for the caps with lock ring. It is widely used in industries like foodstuff, pharmacy, daily chemical, cosmetic, fertilizer, etc.
Automatic rotary cappers are designed to handle a wide range of caps including screw caps, press-on caps, tamper-proof caps, aerosol over caps, inserts, ROPP caps, twist-off caps onto plastic and glass containers. Rotary cappers have much higher speed capabilities than in-line capping machines.
PLC control system, rotary type structure, the machine is with the function of automatic cap feeding, loading, and closing.
The containers are fed onto the rotary screw capper and are separated and positioned on individual capping stations. The caps are presorted and fed on the sliding table of the machine. The continuously rotating chucks are lowered over the cap to pick up and secure the caps, then apply the caps to the containers. When the preset applied torque value is achieved, the magnetic clutch disengages, the chuck releases the cap and the closed container is discharged from the machine.
With 6 mechanical hands, the model is suitable for multi-geometry containers. It dispatches caps at a fast speed without any cap reversed. Supplying cap system and mechanical hands work together in phase. When the cap is tightened, bottle and cap standstill relatively, and the clutch separates immediately so that able and not apt to be damaged.



Technical parameters:

1 Capping capacity 6000-8000BPH
2 Pass rate ≥99.5%
3 Suitable bottle size Φ40-95mm H80-250mm
4 Cap size Φ25-60mm H20-40mm
5 Cap heads 6 heads
6 Air pressure 0.6-0.8 Mpa
7 Power source ~380V/50Hz/4.0KW
8 Weight around 1600Kg
9 Dimensions 1995×1300×2246mm(L×W×H)





Bottle Inlet Part

FX-8AS High Speed Pick And Place 8 Heads Automatic Capping Machine 4.0KW 100ml-1L 0



Capping Feeding Part

FX-8AS High Speed Pick And Place 8 Heads Automatic Capping Machine 4.0KW 100ml-1L 1



3. Detection and rejection of no aluminum foil cap

FX-8AS High Speed Pick And Place 8 Heads Automatic Capping Machine 4.0KW 100ml-1L 2



4.  The cap sorter

FX-8AS High Speed Pick And Place 8 Heads Automatic Capping Machine 4.0KW 100ml-1L 3



Electric Cabinet



FX-8AS High Speed Pick And Place 8 Heads Automatic Capping Machine 4.0KW 100ml-1L 4



Key Features:

1. Carbon steel base mounted on adjustable floor levelers for easy alignment.

2. Bearing frame and all surface components manufactured in 304 stainless steel.

3. Magnetic clutch capping heads for screw caps complete with pick & place cap system.

4. Caps in chute photocell, the machine will not work if there are no caps present on the chute.

5. Automatic cap feeder, chute, and applicating head.

6. Electrical socket for optional elevator feed.

7. Safety guarding with interlock devices.

8. Cap change parts complete set to run a different size cap.(option)

9. Cap elevator to load the cap feeder automatically.(option)
