GX-12-6B Integrated Filling Capping Machine 4000BPH 380V 3.8KW

GX-12-6B Integrated Filling Capping Machine 4000BPH 380V 3.8KW

380V Integrated Filling Capping Machine

4000BPH Integrated Filling Capping Machine

3.8KW Integrated Filling Capping Machine

Place of Origin:

made in China

Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
GX-12-6B Integrated Filling Capping Machine
≤4000 BPH
Cap Dimension:
Diameter: Φ20-60mm Height:50-150m
Air Source:
0.6-0.8 Mpa Stable And Clean Air
Power Source:
~380V 50Hz
External Dimension:
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
wooden cases
Delivery Time
15-90 work days
Payment Terms
L/C, T/T
Supply Ability
1 Osets per month
Contact Us
Contact Now
Product Description

GX-12-6B Integrated Filling Capping Machine

1. Introduction

GX-12-6B Automatic Integrated Filling Capping Machine, filling part is driven by servo motor and volume metering filling principle, which realizes high precision of filling dosage. It adopts PLC control, all the operations can be done in the touch screen. Capping part is making up with cap supply, cap scratch, pressing, clamping and conveyor.

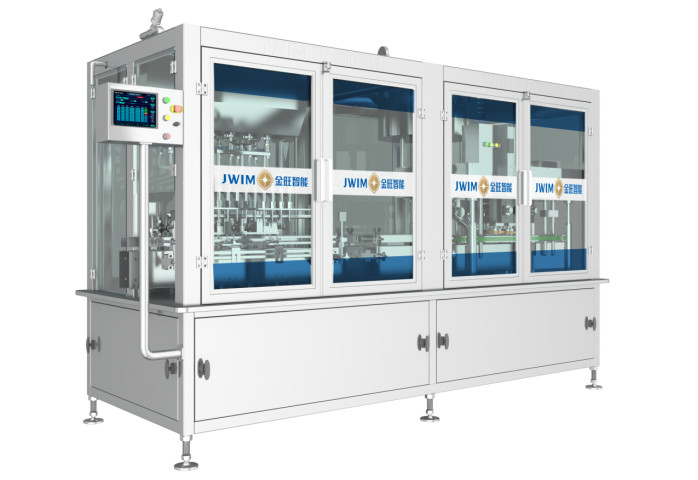

The machine has compact structure, small occupation area, integrated filling and capping in one, SUS304 frame and toughened glass door cover which is more safe, environmental-friendly and easy for cleaning.


2. Technical Parameters

1 Capacity

20ml: ≤4000 BPH

Capacity differs from product, drum and product characteristic.

2 Applicable Bottle Diameter: Φ20-60mm Height:50-150m
3 Applicable Cap Cap Diameter: Φ20-50mm Height:15-40m
4 Filling Precision


Capacity differs from product, drum and product characteristic.

5 Product Feeding Height 1980mm
6 Product Feeding Diameter Φ26mm
7 Filling Nozzle External Diameter Φ9mm
8 Min Opening Diameter ≥Φ13mm
9 Air Pressure 0.6-0.8MPa
10 Power Source ~380V 50Hz/3.8KW
11 External Dimension 2990×1180×2073mm(L×W×H)
12 Weight About 1000kg

3. Advanced Features

3.1. It is widely used for the automatic filling and screw capping from 20-100ml in agrochemical, chemical, fertilizer, personal care products, oil and other related industries.

3.2. The control system uses France Schneider, the integrated control system is more stable, safe, green and low energy consumption.

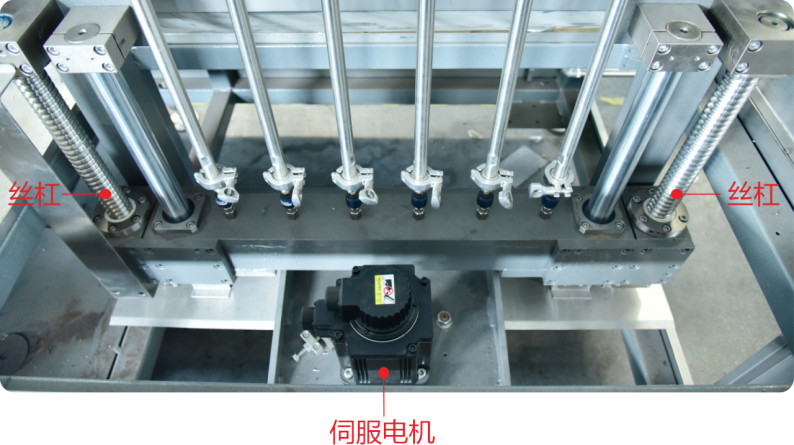

3.3. Jinwang uses Schneider PLC control, servo motor drives the synchronous belt+stable operated double screw rod lifting structure to make sure the high precision of piston movement and filling.

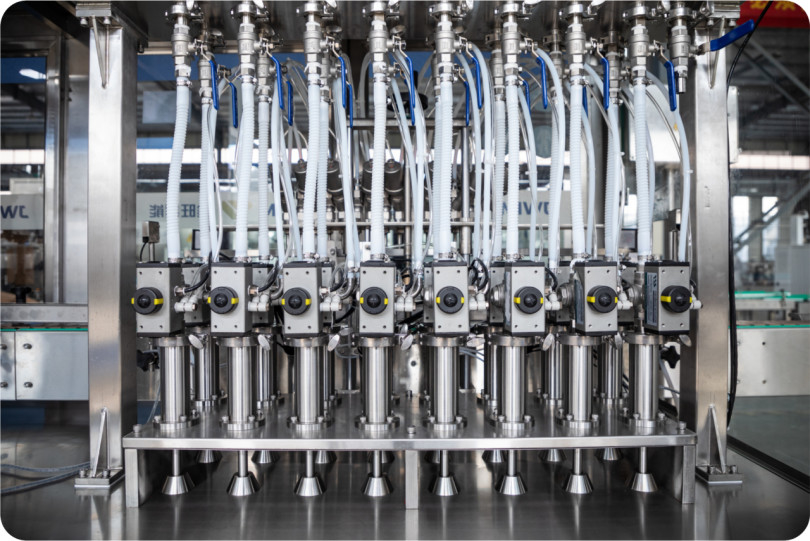

3.4. 100ml pistons make sure the filling precision of small volume.

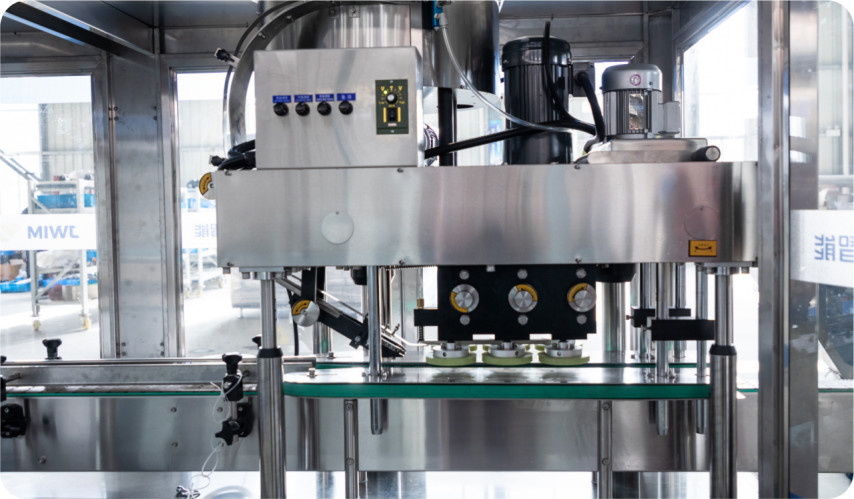

3.5. The screw cap part has good versatility, convenient adjustment and economical application without extra format. The latest capping wheel material will not make any damage to the caps. The molding clamping belts are durable.

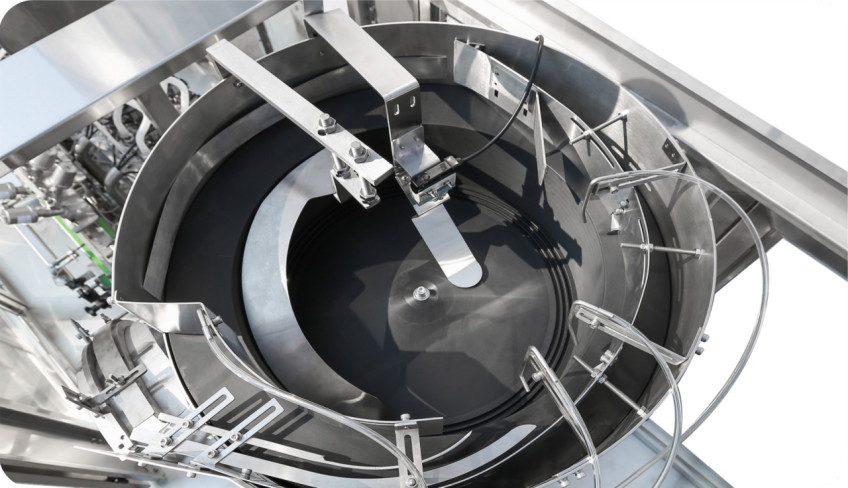

3.6. The cap sorter installs with auto inspection device, the cap elevator will automatically start if there is not enough caps (can work with the cap elevator). This will make sure the supply of caps.
