20-40 Pouches/Min DGD-280AJ Automatic Horizontal Pouch Packing Machine

20-40 Pouches/Min DGD-280AJ Automatic Horizontal Pouch Packing Machine

20 Weighing Pouch Packing Machine

40Pouches/Min Pouch Packing Machine

Horizontal Pouch Packing Machine

Place of Origin:

China

Brand Name:

JWIM

Certification:

CE,ISO

Model Number:

DGD-280AJ

Contact Us
Request A Quote
Product Details
Machine Name:
DGD-280AJ Automatic Horizontal Pouch Packing Machine
Applicable Pouches Size:
W120-280mm L180-380mm
Machine Frame:
SUS304
Volume:
≤1000g
Air Pressure:
0.5-0.7Mpa
Packing Volume:
20(Weighing)-40Pouches/Min
Accuracy:
±1-2%
Power Source:
Three Phase, AC380V, 50Hz
Power:
6KW
Air Consumption:
840L/MIN
Dimension:
3650×2400×1400mm(L×W×H)
Weight:
3100KG
Control:
PLC
Power Unit:
Servo Motor
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
wooden cases
Delivery Time
15-90 work days
Payment Terms
L/C, T/T
Supply Ability
1 set per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

20(Weighing)-40Pouches/Min DGD-280AJ Automatic Horizontal Pouch Packing Machine

1. Introduction

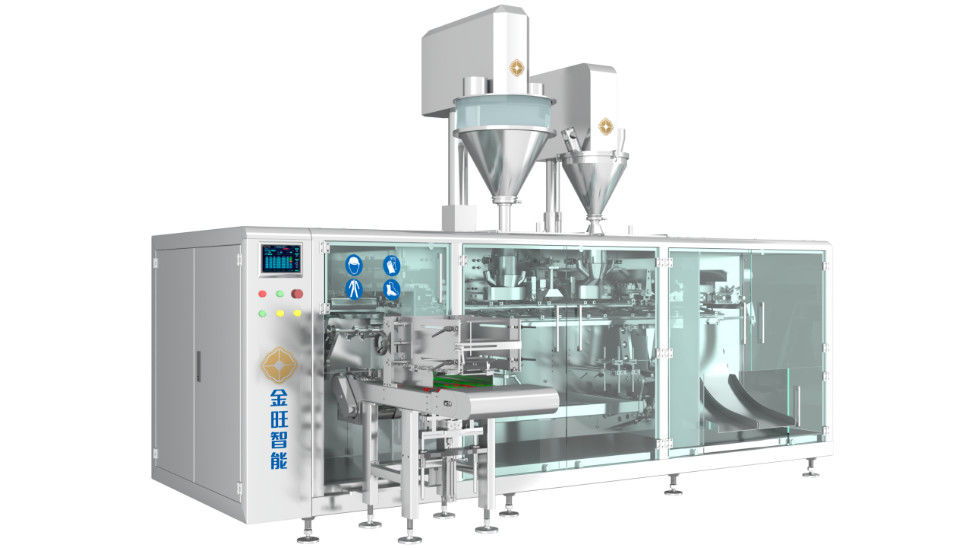

DGD-280AJ Automatic Horizontal Pouch Packing Machine is our newly developed online weighing bagging machine. Under the programmable control of the PLC, the function of bag removal → bag opening → detection → filling → sealing → finished product is realized .

It adopts SUS304 arc-shaped frame and tempered glass door cover, with a complete dust removal system, which is suitable for packaging production of various prefabricated bag products.



2. Technical Parameters



1 Capacity

20(Weighing)-40Pouches/Min

*Actual capacity: According to product size, packaging material, material characteristics, etc.



2

Applicable Pouches Size



W120-280mm L180-380mm

3 Volume ≤1000g *According to the physical properties of the raw materials and the different feeding devices.
4 Precision

±1g(100g);≤±2g(200-300g);≤±3g(300-500g)

≤±3g(500- 1000g)(Optional weighing mode)

*According to the physical properties of the raw materials and the different feeding devices

5 Air Pressure 0.6-0.8MPa 500L/MIN
6 Power Supply ~380V 50Hz/6.0KW



7

External Dimension



3650×2400×1400mm(L×W×H) *Without powder filling device

8 Weight About 3100Kg





3. Functions

3.1.This equipment is mainly used in the production of various types of pre-made bags. The packaging is beautifully formed and well formed, without packaging materials and material waste.

3.2. More environmentally friendly: The entire confidential closed design, isolates the dust in the machine, and is equipped with a stainless steel dust removal pipeline system, which is environmentally friendly and pollution-free. (Dust removal pipeline and dust collector are optional functions)

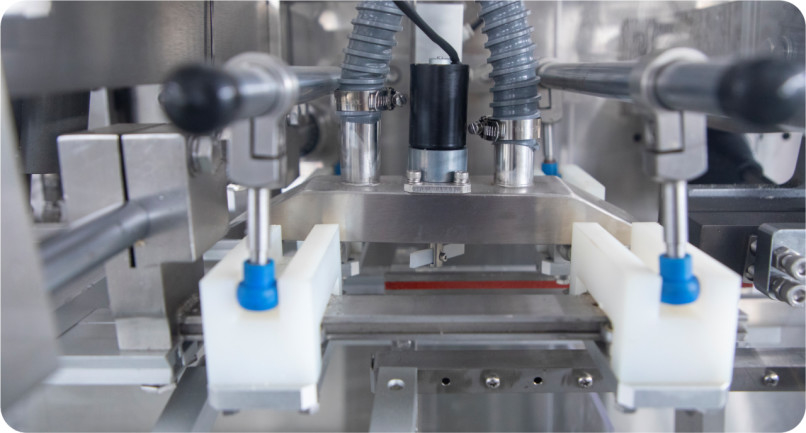

3.3.Easy to maintain: upturned ironing block structure, convenient for maintenance and cleaning.

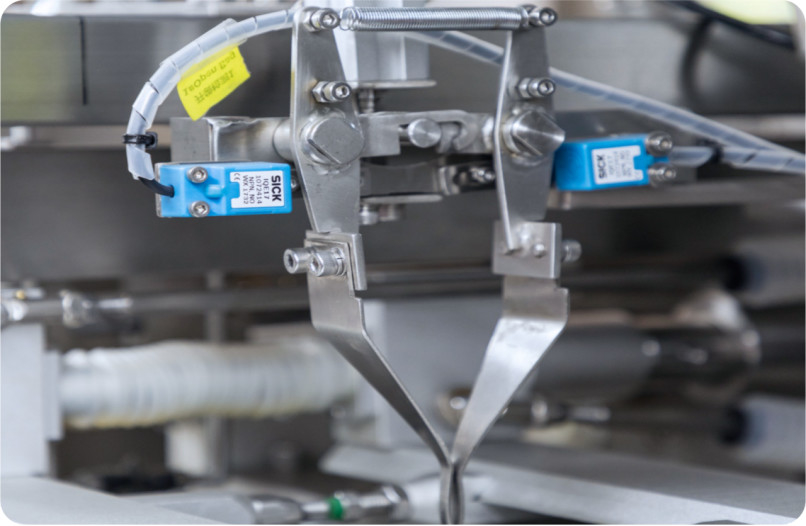

3.4. Cost saving: unique bag opening detection function, no bag opening, no filling, no heat sealing, the bag can be reused, and no material is wasted.If the bag is not opened successfully, it will be automatically shunted with the finished bag.

Auxiliary machine of 200g pouch packaging line.

3.5.Using Spanish cam technology, the cam generally uses an internal cam, which does not run position and has a higher operating accuracy.

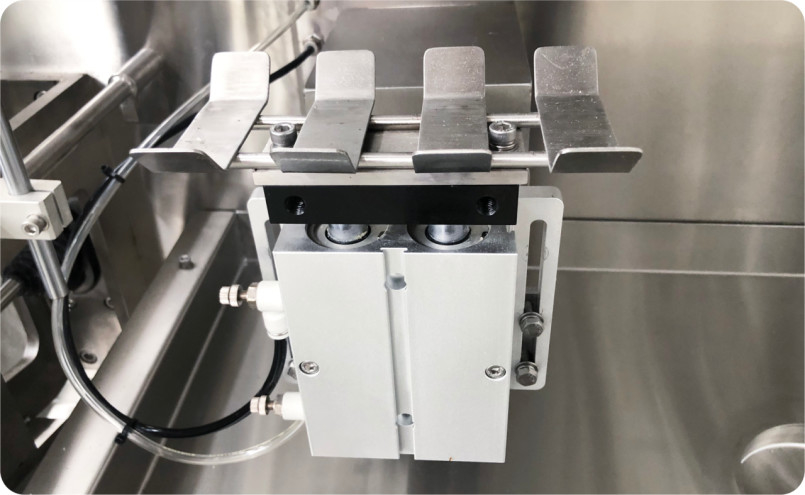

3.6.Optimization of bag taking structure,Extend the suction bag time, and take the bag more accurately. At the same time, the large-capacity bag placement mechanism can store about 300-500 bags. When the equipment is running, the bag placement frequency is reduced and the production efficiency is improved.

3.7.More durable: Superb design technology and imported CNC parts processing, high precision and high standards, to ensure the stability and durability of each spare parts.
3.8.Temperature control integrated module: real-time monitoring of temperature changes, touch screen operation control, clear at a glance, to maximize the stability and reliability of equipment operation.

3.9. Built-in vacuum pump to reduce the influence of outside air pressure fluctuations on bag loading and bag opening.

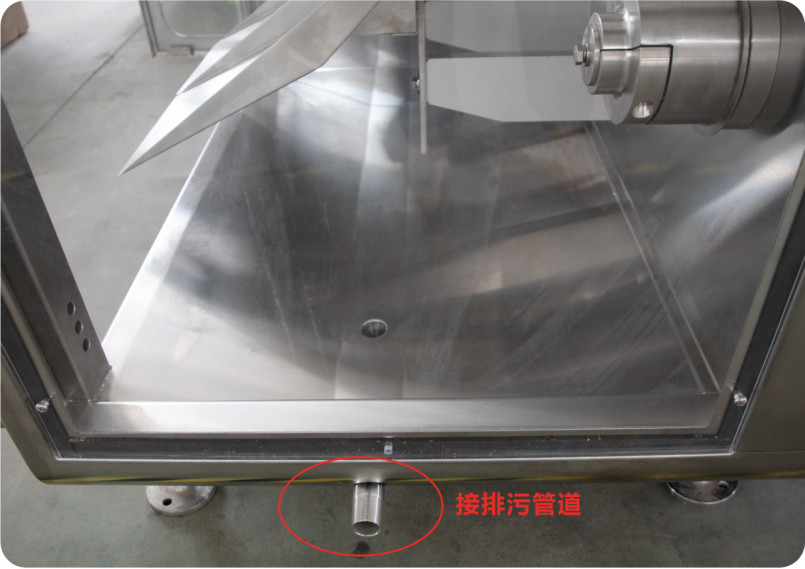

3.10.There is a trapezoidal water tank at the bottom of the whole machine, and the water outlet is connected to the sewage pipe, which makes cleaning and drainage more convenient.
