Place of Origin:
CHN
Brand Name:
JWIM
Model Number:
50ml-1000ml safe,environmental friendly,intelligent filling line
50ml-1000ml safe,environmental friendly,intelligent filling line

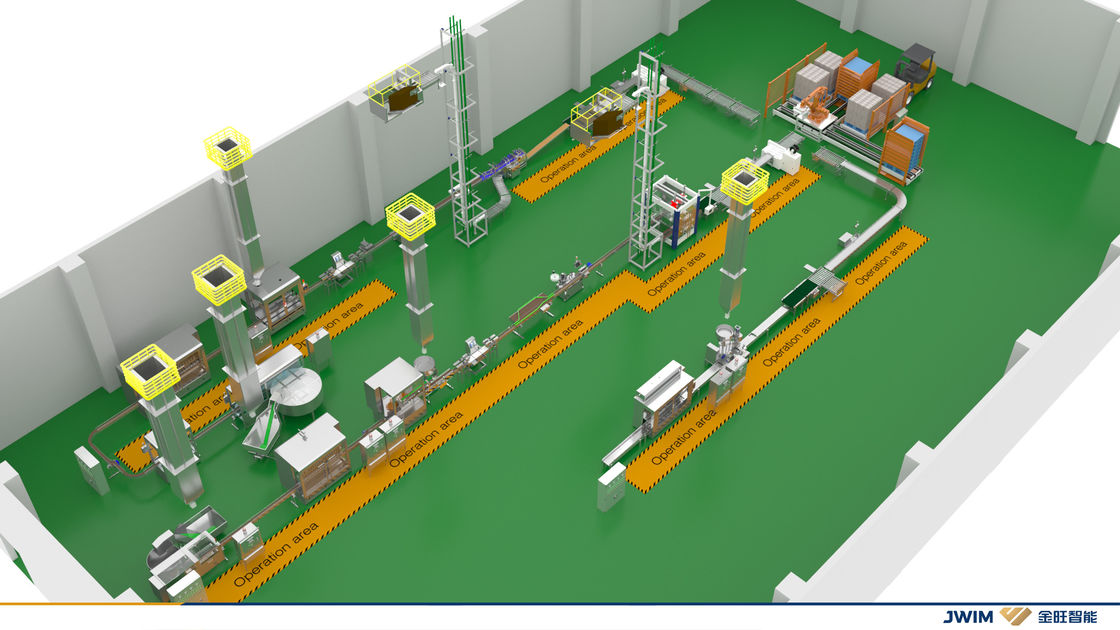

This line is applicable for automatic packaging many kinds of liquid fertilizer.The whole line can complete the bottle unscrambling,filling,capping,labeling,carton erecting,carton packing,carton sealing and palletizing automatically.In the reoduction process,the whole line is automatically coordinated, stable and efficient.
Component
1.LP-200E automatic bottle unscrambler
| Technical Parameters | |
| Unscramble speed | ≤10000 bottles/hour (100ml round bottle) |
| Bottle size | φ45~φ95mm H80-230mm |
2.Electric control cabinet
3.CCG1000-16TS intelligent high ciscosity filling machine
| Technical Parameters | |
| Filling capacity | ≤6000 bottles/hour(100ml round bottle) |
| Precision | 200ml,±1%；200-1000ml,±0.5% |
| Bottle size |
round bottle:φ45~φ95mm H80-230mm square bottle:L&W45~95mm,H80~230mm |
3.FX-6AS automatic rotary capping machine
| Technical Parameters | |
| Capping speed | ≤6000bottles/hour(for filling 100ml round bottle) |
| Cap size | φ25~φ60mm H20-40mm |
| Bottle size | φ45~φ95mm H80-230mm |
4.SGJ-2B automatic cap elevator
5.DG-4000B induction sealer
6.9018 ink print machine
7.TN-150AS intelligent sticker labeling machine
| Technical Parameters | |
| Labeling speed | ≤6500 bottles/hour |
| Precision | ±1mm |
| Label size | 0~130mm,L50~290mm |
| Bottle neck size | φ35~φ95mm |
8.GPK-50 automatic case erector
| Technical Parameters | |
| Capacity | 480-600 cases/hour |
| Case size | L300-600mm,W200-450mm,H200-450mm |
9.MH-FJ-3A case sealing machine
10.MH-102B strapping machine
11.KZ-1D automatic carton packing machine
| Technical Parameters | |
| Packing capacity | 180-360 cases/hour |
| Case size | L300-500mm,W200-400mm,H100-300mm |
| Bottle size | 1L:φ45~φ95mm H80-230mm |
12.IRB-460 robotic palletizing unit
| Technical Parameters | |
| Load | 110kg(including grabs) |
| Grab speed | 6-8 seconds/single grab |
| Installation requirements | concrete thickness≥200mm |
| Power | 3.67kw |
| Gas source | 0.6-0.8Mpa |
