Place of Origin:
China
Brand Name:
JINWANG
Certification:
CE, ISO,GMP
Model Number:
CCG1000-8Ex

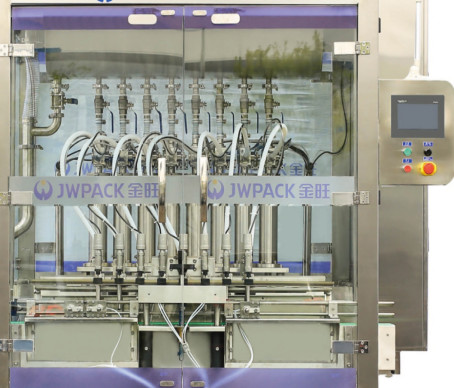

Explosion-proof 50-1000ml Pesticide Filling Machine 1500BPH for 1L bottle SS304
Explosion-proof Pesticide filling line features:
| 1 | Less labor | Intelligent Production Line | Reduce personnel intervention and labor intensity |
| 2 | Easy to use and fast to switch | Handle adjustment | Reduce Tool Use and Adjustment Time |
| Calibration marking | Specification adjustment has reference, once in place | ||
| 3 | High quality and high appearance | Rotary capping | High qualified rate and good sealing |
| 4 | Safety, Environmental Protection and Visibility | Safety equipment | Explosion-proof type for transmission protection, electrical protection and filling and capping |
| Environmental protection equipment | Stainless steel environmental protection cover, air intake, liquid tray, etc. | ||
| Strong visibility | Intelligent Production Line, High-end Upgrade |
Explosion-proof Pesticide filling machine parameters:
| 1 | Filling Capacity |
100mL:≤2800 bottles/hour 500mL:≤1900 bottles/hour 1000mL:≤1500 bottles/hour *Filling water, (capacity is related to different products) |
| 2 | Applicable Bottle Size |
Round bottle:Φ40－95mm H 80－230mm Square bottle:L40－95mm W40－95mm H80－230mm |
| 3 | Filling range,filling nozzles | 80-1000mL 8 nozzles |
| 4 | Accuracy | ±1g(100mL) ±2g(1000mL)(*water) |
| 5 | Height of Feeding Port | 2300mm |
| 6 | Feeding Port Diameter | Dn40 |
| 7 | Nozzle Diameter | Φ18mm |
| 8 | Minimum Bottle Opening | ≥Φ22mm |
| 9 | Air Pressure | 0.6-0.8MPa |
| 10 | Power Source | ～380V 60Hz/3.55KW |
| 11 | Machine size | 1995×1490×2470mm(L×W×H) |
| 12 | Machine Weight | 1200Kg |
The equipment uses explosion-proof cabinet, contains PLC, touch screen, frequency converter, switching power supply and other components inside. The exterior uses motor, photoelectric, solenoid valves and explosion-proof junction boxes.
Explosion-proof motor Explosion-proof cabinet
Explosion-proof coiling tube
Why do you choose Jinwang?
Select spare parts with high quality and well-known brands only.
We are approved by ISO, CE, GMP.
One year warranty; perfect after-sales service for spare parts.
Best prices with good quality and reliable performance, easy maintenance.
Increased foreign trade exports 30% every year.
