5L-30L Agrochemical Fully Automatic Drum Filling Machine Auto Weighing Filling Machine

Product Details:
Place of Origin: Changzhou, China
Brand Name: JWIM
Certification: CE, ISO9001
Model Number: CZ-4B/6B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden cases
Delivery Time: 15-90 work days
Payment Terms: L/C, T/T
Supply Ability: 1 Osets per month
Specifications Product Description Request A Quote
Specifications
Specifications
Machine: Automatic Weight Filling Machine
Material: SUS304
Filling Type: Weight Filling
Weighing Brand: Mettler Toledo
Filling Range: 5L-30L
Capacity: 200-400 Drums/hour
Container Loading: 40HQ LCL Loading

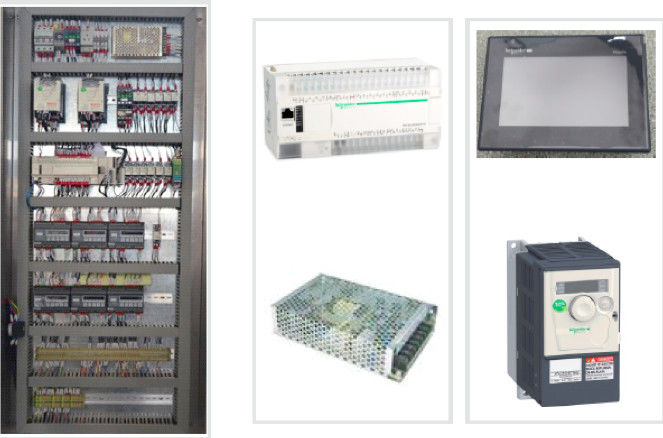

Control System: France Schneider
High Light:

5L Agrochemical Fully Automatic Drum Filling Machine

,

30L Drum Filling Machine Auto Weighing

,

Corrosive Liquid Filling Machine

Product Description

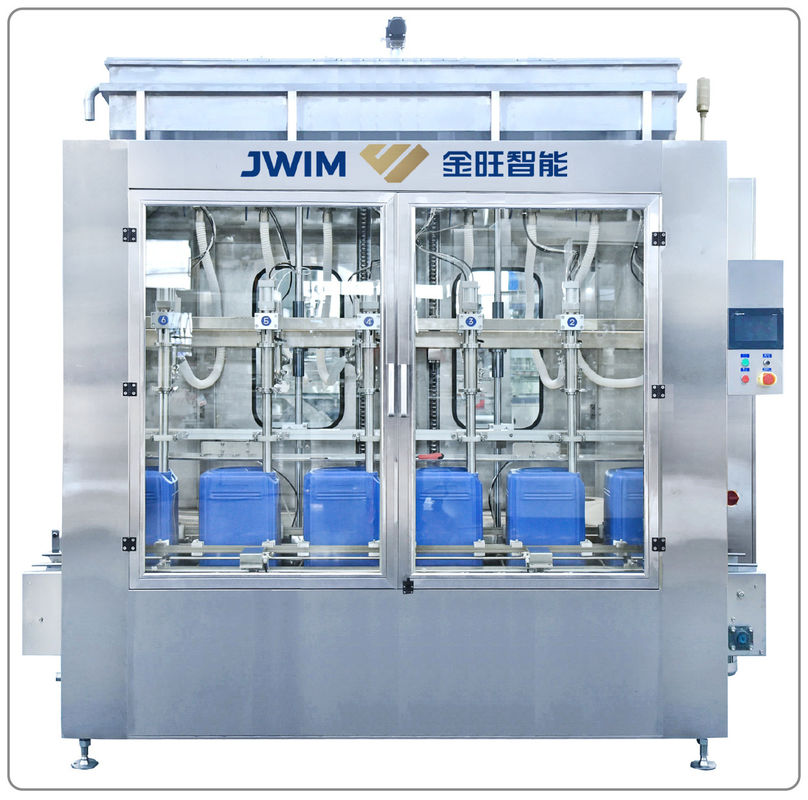

5L-30L Pesticide Drum Weight Filling Machine



Introduction:

Weight Filling Machine is making up of the weighing scale (with roller), chain-driven drum in and out structure, fast and slow filling (with dive function), material tank, weight control meter and PLC control unit. This filling machine can do the auto filling of different materials (with or without foam). It is widely used for the 5L to 30L liquid filling.



Feature:

1. High Precision: American METTLER TOLEDO weighing sensor and control meter) ensures that the high filling precision.

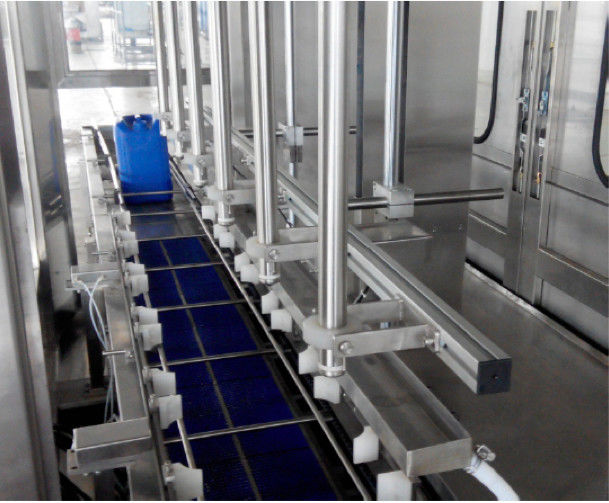

2. Fast & slow filling valve, diving filling heads do under level filling which can avoid the foaming problem when filling.

3. The liquid tray will collect the drops to prevent polluting to the bottles after filling.

4. France Schneider Control System which is stable, safe, green and low energy consumption.

5. Machine uses SUS304 with the features of anti corrosive. The sealing parts of scales and product contact parts are PTFE.



Technical Parameters

Model CZ-4B/6B
Filling Heads 4/6
Filling Range 5L-30L
Capacity 5L: 300-400 BPH, 20L 200-350BPH
Air Pressure 0.6-0.7MPA
Power 380V, 50HZ
Material SUS304
Advantage Mettler Toledo Weigh Scale
