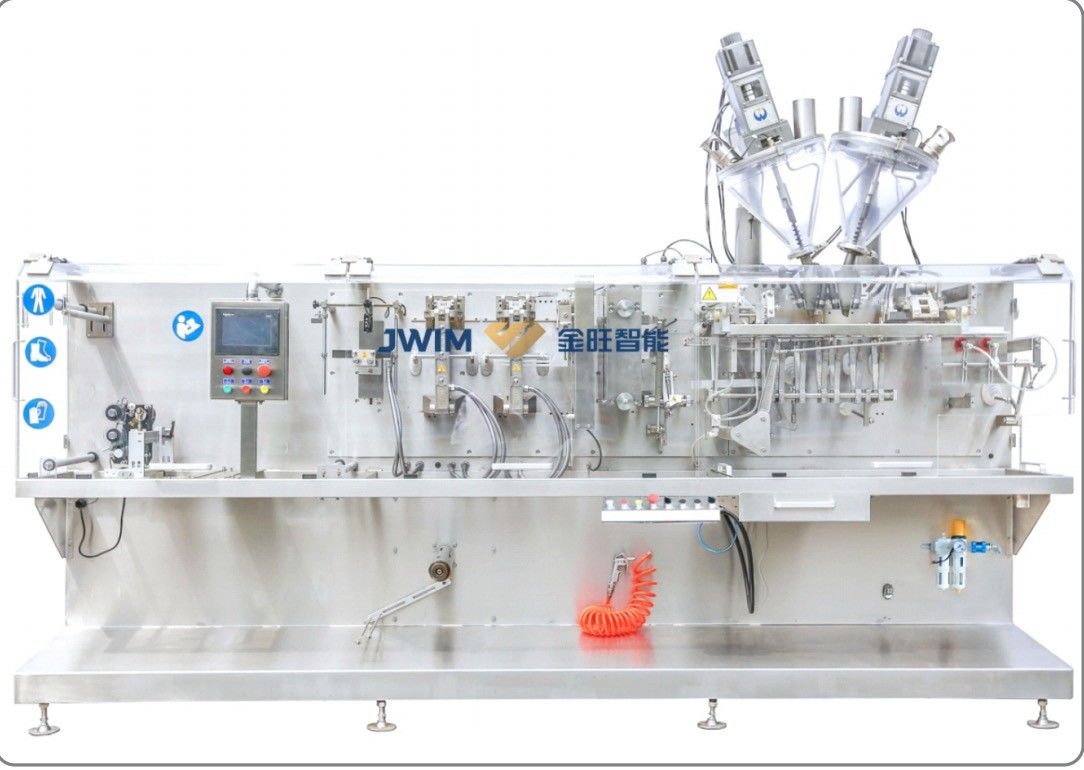

3-200g Automatic Horizontal Pouch Packing Machine Double Bags 120pouches min

3-200g Automatic Horizontal Pouch Packing Machine Double Bags 120pouches min

horizontal pouch machine

3-200g Horizontal Pouch Packing Machine

Horizontal Pouch Packing Machine 120pouches min

Place of Origin:

CHINA

Brand Name:

JWIM

Certification:

CE ISO9001 ISO18000 ISO14000

Model Number:

DXD-180D

Contact Us
Request A Quote
Product Details
Name:
DXD-180D Automatic Horizontal Pouch Packing Machine
PLC:
Schneider
HMI:
Schneider
Inverter:
Schneider
Servo Motor:
Schneider
Proximity Switch:
Autonics
Encoder:
Omron
Vacuum Generator:
SMC
Contractor:
Schneider
Color Sensor:
Sunx
Fun:
Sunon
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
wooden cases
Delivery Time
15-90 work days
Payment Terms
L/C, T/T
Supply Ability
1 Osets per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

3-200g Powder DXD-180D Automatic Horizontal Pouch Packing Machine



1. Introduction:

DXD-180D Automatic Horizontal Pouch Packing Machine contains motor film-releasing, film forming, bottom sealing, vertical sealing, cutting, filling, pouch transferring and top sealing. The cams on the main shaft finish the coordinated action driven by the motor and the encoder on the main shaft feedback the position single. Under the control of the PLC, it realizes the function of film roll→film forming→film in-shape→powder filling→sealing→ finished products transferring. At last, the finished products enter the counting device, and then manually put them in boxes or cartons. The machine designs properly with a beautiful appearance. It adapts standard stripe sealing. It can realize automatic power, granule, SC, EC, AS filling with changing the filling device. The organic glass cover can prevent the flowing of dust which is more environmental-friendly.



2.Main Technical Parameter

2.1 Capacity: ≤60 pouches/minute (Single Bag), ≤120 pouches/minute (Double Bags)

2.2 Applicable Pouch Size: Single Bag: 60*100mm (Minimum), 180*220mm (Maximum)

Double Bag: (60+60)*100mm (Minimum), (90+90)*160mm (Maximum)

2.3 Packing Volume: 400ml (Single Bag), 100ml (Double Bag)

2.4 Filling Precision: ±1%

2.5 Film Roll Inner Diameter: Φ70-80mm

2.6 Film Roll External Diameter: Φ500mm

2.7 Power Source: Three Phase, AC380V, 50HZ

2.8 Power: 4.5KW

2.9 External Dimension: 3260×1000×1550mm (Dusting Pipe+60) (L*W*H)

2.10 Weight: 1350KG
