6000 BPH bottle automatic Linear Screw Capping Machine Vial Filling And Capping Machine

Product Details:
Place of Origin: Changzhou, China
Brand Name: JWIM
Certification: CE, ISO9001
Model Number: FXZ-6J
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden cases
Delivery Time: 15-90 work days
Payment Terms: L/C, T/T
Supply Ability: 1 Osets per month
Specifications Product Description Request A Quote
Specifications
Specifications
Inverter: France Schneider
Material: SUS304
Capping Type: Wheel Screwing
Capping Speed: 6500 Bottles/hour
Structure: Linear Capping Machine
Cap Diameter: 20-50mm
High Light:

6000 BPH Linear Screw Capping Machine

,

linear bottle capping machine

,

automatic linear capping machine

Product Description

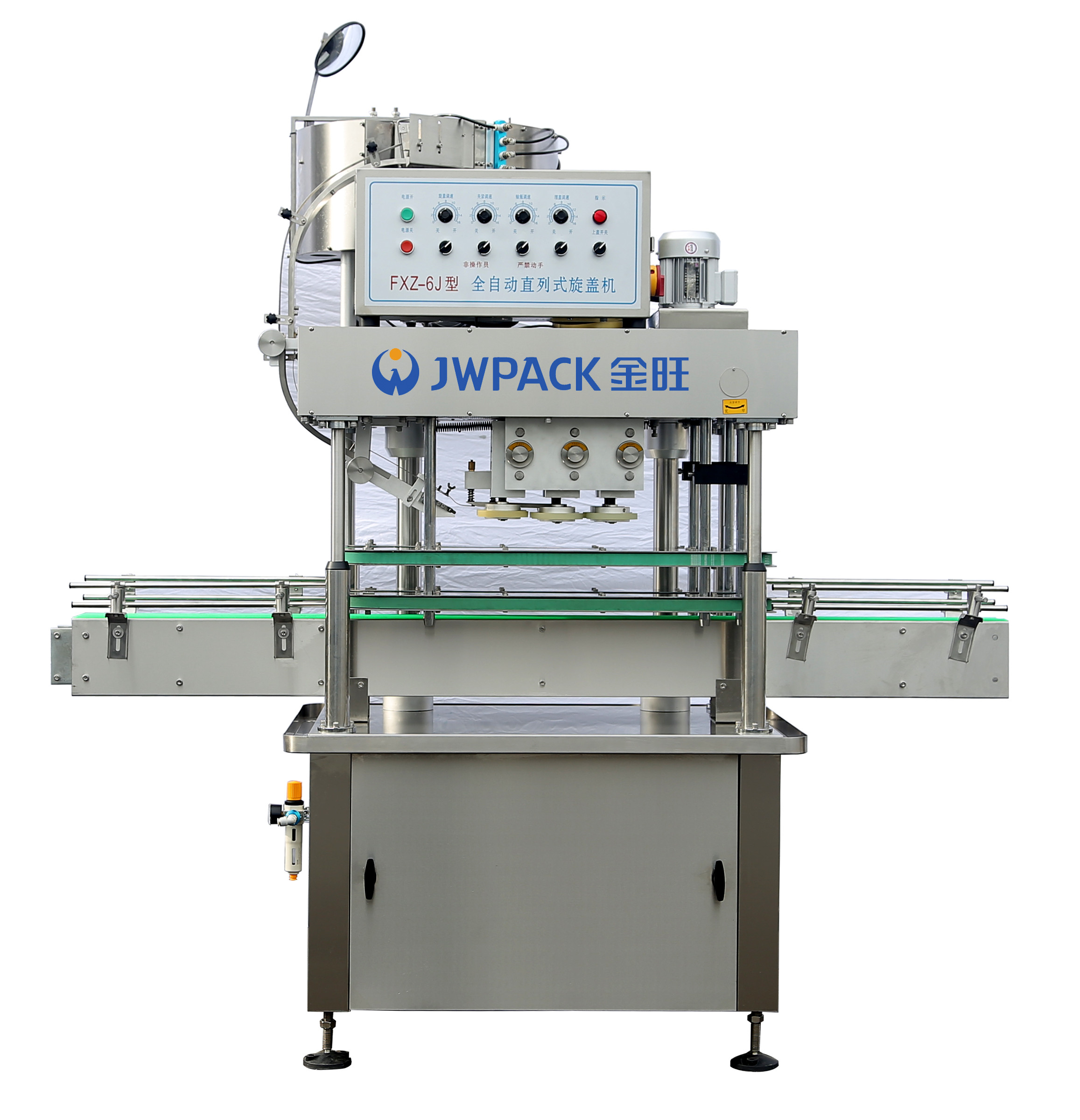

6000 BPH Auto Screw Linear Capping Machine



Auto Screw Linear Capping Machine



Introduction:

FXZ-6J Automatic linear capping machine includes the bottle tightening conveying structure and capping wheels. Under the horizontal movement of the conveyor, it will finish the complete process of capping. It can be widely used for capping of round and flat bottles. The machine is with simple structure, easy adjustment and quick change-over between different bottles.



Features:

1.Widely used for the capping of different bottles in different industries

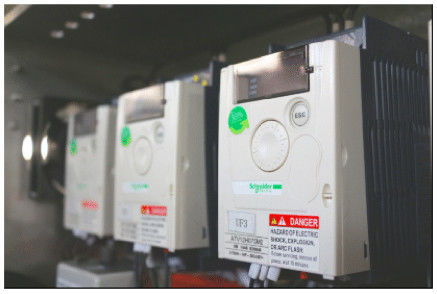

2. France Schneider low consumption inverters

3. Synchronous belts and capping wheels which reduces the consumption of materials



Technical Parameters:

1 Capacity 6500BPH
2 Applicable Bottle Φ35-95mm,Height: 80-230mm
3 Applicable Cap Φ20-50mm,Height: 15-40mm
4 Air Pressure 0.5-0.7MPA
5 Power Supply 1P/220V/50Hz
6 Power 2.4KW
7 Gross Weight 850KG
8 External Dimension 2000×900×1960mm(L×W×H)
