100 BPM Bottle Automatic Rotary Capping Machine Glass Bottle Filling And Capping Machine

Product Details:
Place of Origin: Changzhou, China
Brand Name: JWIM
Certification: CE, ISO9001
Model Number: FX-6AS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden cases
Delivery Time: 15-90 work days
Payment Terms: L/C, T/T
Supply Ability: 1 Osets per month
Specifications Product Description Request A Quote
Specifications
Specifications
Material: SUS304 Frame
Structure: Rotary Capping
Capping Head Number: 6 Capping Heads
Addition: Extra Bottle & Cap Format Needed
Control System: France Schneider
Capacity: 6000 BPH
Wooden Case Measurement: 10.6CBM, Two Wooden Cases
Weight: 1900KG
High Light:

Automatic Rotary Capping Machine 100 BPM

,

rotary bottle capping machine

,

rotary bottle capper machine

Product Description

6000 BPH SUS304 Automatic 6 Heads Rotary Capping Machine

1. Introduction

The capping machine combines bottle input, cap unscrambler, capping and bottle output together, it is positioning capping. The machine is rotary structure, it will not damage the bottle and cap during operation and has the features of high capping qualification rate, stable operation and wide application. It is used for capping of different sizes of glass and plastic bottles. The machine is controlled by PLC, touch screen and easy operation.



2. Features

High Qualification Rate: 100% capping qualification rate, adjustable torque and easy operation.

Wide Application Range: Different capping heads can be used for different caps.

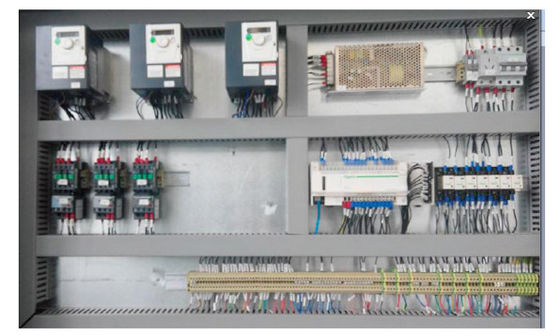

France Schneider Control System, central control system which is stable, safe, green and low energy consumption.

Quick change over design, no need tools when changing different moulds.



3. Main Technical Parameters

1 Capacity

6000BPH

2 Applicable Bottle Size

Φ40-90mm, Bottle Height: 80-230mm

Flat/Square: L: 40-95mm W: 40-95mm H: 80-230mm

3 Cap Diameter 20-55mm
4 Cap Height 15-30mm
5 Capping Head Number 6
6 Qualification Rate 99.9%
7 Air Pressure 0.6-0.8MPa
8 Power Source 380V, 50Hz/4KW
9 Dimension 2135×1360×2400mm (L×W×H)
10 Weight About 2000Kg
