5-30L Drum Double sided Automatic Sticker Labeling Machine for glass PET bottles

Product Details:
Place of Origin: Changzhou, China
Brand Name: JWIM
Certification: CE, ISO9001
Model Number: TN-200LDS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden cases
Delivery Time: 15-90 work days
Payment Terms: L/C, T/T
Supply Ability: 1 Osets per month
Specifications Product Description Request A Quote
Specifications
Specifications
Material: SUS304 Frame
Control System: France Schneider
Servo System: France Schneider
Applicable Drum: 5-30L Drum
Labeling Precision: ±2mm
Min Drum Size: 140×200×320mm
Max Drum Size: 260×290×500mm
Capacity: 1500-2000 Drums/hour
High Light:

Double sided Automatic Sticker Labeling Machine

,

5-30L Drum Automatic Sticker Labeling Machine

,

automatic bottle labeling machine

Product Description

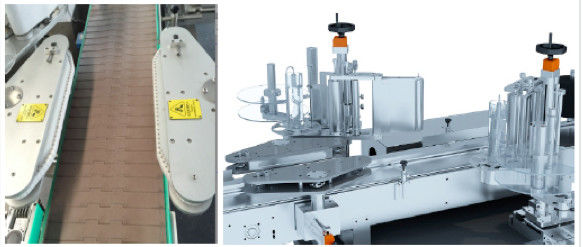

TN-200LDS Automatic 5-30L Drum Two Sides Self Adhesive Labeling Machine



Introduction:

TN-200LDS Drum Double-sides Labeling Machine is making up with the PLC, touch screen, servo motor label pressure structure. It is of multi-help functions and alarm showing function. It is suitable for the two sides self-adhesive labeling of square and flat bottles.



Features:

1. High Capacity: bottle shaping +dislocation labeling, which improves stability.

2. Servo motor system and France Schneider system enables the high efficiency, stable and low energy consumption.

3. Labeling module uses the imported emery, composed the driven roller structure: good friction ensures the labeling precision.

4. Multi-coordination, alarm units together guaranteed the safety of the equipment

5. Whole machine is easy to clean

6. Digital regulating handle makes specification easier

7. Pure alloy labeling stick, which is better than plastic type

8. High precision of photoelectric: all adopted qualified specification brand model



Technical Parameters:

Model TN-200LDS
Labeling Precision ±2mm
Applicable Bottle Size Min 140×200×320mm, Max: 260×290×500mm (L*W*H)
Labeling Speed 1500-2000 Drums/hour
Label Height ≤190mm (Customized)
Power 220V, 50HZ, 3KW
Material SUS304
Weight 400KG



Allocations:

No. Name Country Origin Remark
1 PLC France Schneider 5-30L Drum Double sided Automatic Sticker Labeling Machine for glass PET bottles 0
2 Touch Screen France Schneider 5-30L Drum Double sided Automatic Sticker Labeling Machine for glass PET bottles 1
3 Servo System France Schneider 5-30L Drum Double sided Automatic Sticker Labeling Machine for glass PET bottles 25-30L Drum Double sided Automatic Sticker Labeling Machine for glass PET bottles 3
4 Inverter France Schneider 5-30L Drum Double sided Automatic Sticker Labeling Machine for glass PET bottles 4
5 Power Switch France Schneider 5-30L Drum Double sided Automatic Sticker Labeling Machine for glass PET bottles 5
6 Button France Schneider 5-30L Drum Double sided Automatic Sticker Labeling Machine for glass PET bottles 6
