16 Head 4000 BPH Volumetric Liquid Filling Machine Edible Oil Bottle Filling Machine 80ml-1000ml

Product Details:
Place of Origin: Changzhou, China
Brand Name: JWIM
Certification: CE, ISO9001
Model Number: CCG1000-16TJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden cases
Delivery Time: 15-90 work days
Payment Terms: L/C, T/T
Supply Ability: 1 Osets per month
Specifications Product Description Request A Quote
Material: SUS304 Frame
Control System: France Schneider
Filling Range: 80ml-1L
Filling Numbers: 8/12/16/20 Heads
Optional Function: SUS316 Product Contact Parts/Weight Feedback System
Dimension: 2435*1253*2250mm
Weight: 1800KG
Structure: Linear Piston Filler
High Light:

4000 BPH Volumetric Liquid Filling Machine


edible oil packaging filling machine


volumetric container filling machine

Product Description

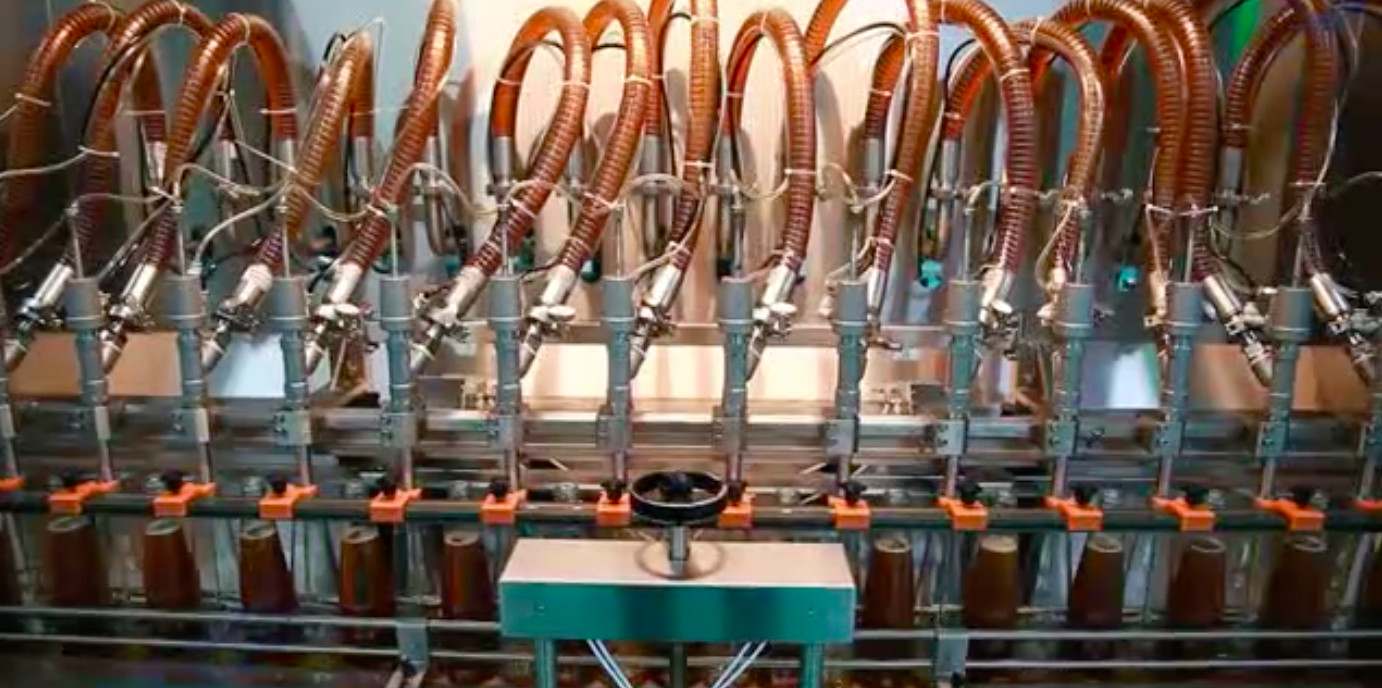

16 Heads 4000 BPH Automatic Edible Oil Flling Machine for 80ml-1000ml Plastic & Glass Bottles

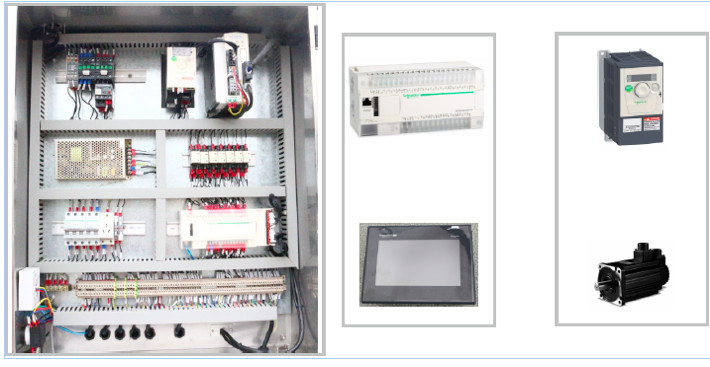

CCG1000-16TJ Automatic Piston Filling Machine is the new-generation improved volumetric filling machine. JW PACK patented design: visible round product tank that can be thoroughly cleaned without any waste product storage. One key cleaning system and recycle product tank cleaning can avoid the cross-contamination of different products. It is widely used for the edible oil, motor oil and different kinds of high viscosity oil product filling. The machine is linear structure and driven by the servomotor. Volumetric filling principle can realize the high precision of filling. It is controlled by the PLC, human interface and easy operation. The machine is equipped with electric scale weight feedback system that makes the volume adjustment easier.



1. It is widely used for 80-1000ml bottles in different oil industry filling.

2. FESTO and JWPACK developed new angle seat valve for oil industry. This valve has long service life. It will not leak after operating for over millions times. It is convenient to maintain because of the modularization design.

3. Cylinder off structure is adopted in the filling unit. It can empty the product in the tank to prevent cross contamination between different products. Besides, it is more convenient to change the sealing ring.

4. Nozzles can be adjusted fast without tools and are equipped with scale ruler. Air pipe and sensor have independent name marks that are convenient for maintenance and inspection.


Technical Parameters:

1 Filling Capacity

100ml: ≤6000BPH 500ml: ≤4000BPH

1000ml: ≤3000BPH

(Filling water, capacity is related to different products)

2 Applicable Bottle Size

Round: Diameter: Φ40-95mm, Bottle Height: 80-230mm

Flat/Square: L: 40-95mm W: 40-95mm H: 80-230mm

3 Filling Range 50-1000ml
4 Accuracy ±1g (100ml) ±2g (1000ml) (Filling water)
5 Filling Nozzle Diameter Φ18mm
6 Minimum Bottle Opening ≥Φ22mm
7 Air Pressure 0.6-0.8MPa
8 Power Source 380V, 50Hz/3.55KW
9 Dimension 2485×1540×2420mm (L×W×H)
10 Weight About 1800Kg
