Product Details:
|
|
| Place of Origin: | made in China |
|---|---|
| Brand Name: | Jinwang |
| Certification: | CE,CO,ISO |
| Model Number: | DGD-280AJ |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | wooden cases |
| Delivery Time: | 15-90 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1 Osets per month |
35 Bags Per Min Automatic Premade Horizontal Pouch Packing Machine For Veterinary Drugs Fertilizers And Pesticide

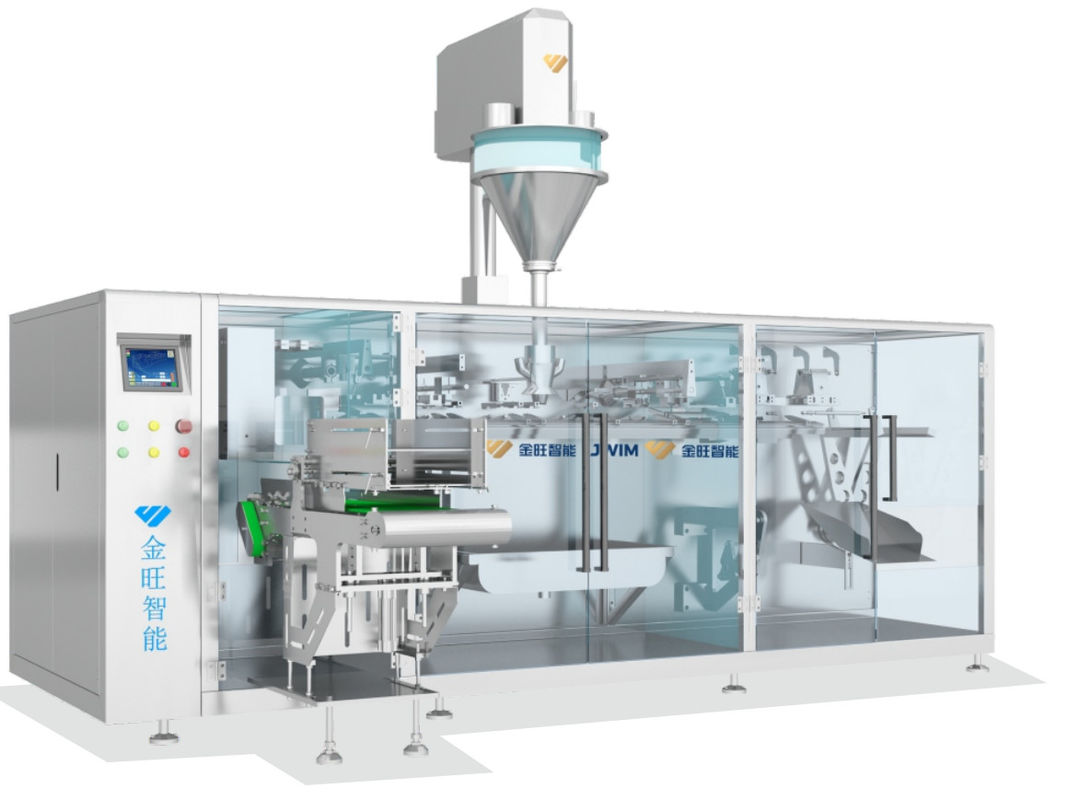

DGD-280AJ Automatic horizontal pre-formed pouch packing machine brief introduction
DGD-280AJ Automatic horizontal bag filling machine is our newly developed online weighing bag filling machine.Under the programmable control of PLC, the functions of bag taking→bag opening→detection→filling 1→sealing→finished product are realized. The machine adopts an arc-shaped frame and a complete dust removal system, which is suitable for the packaging and production of various prefabricated bag products.
Advantages of DGD-280AJ Automatic horizontal pre-formed pouch packing machine
1 One or two servo-driven powder dosing augers.
2 No bag no filling.
3 Easy to clean
4 Less dusty
5 Stable Running
Technical Parameters of DGD-280AJ Automatic horizontal pre-formed pouch packing machine
| 1 | Production Capacity | 15(weighing with load cell)~ 35bag/min *packing speed depends on packing material |
| 2 | Applicable Bag | W120-280mm L180-380mm |
| 3 | Packing Volume | ≤1000g *packing volume depends on density and packing size |
| 4 |
Filling Precision (with loadcell) |
±1g (100g); ≤±2g (200g-300g); ≤±3g (300g-500g); ≤±3g (500g-1000g);(depends on material) |
| 5 | Filling Precision |
±1g (100g); ≤±2g (200g-300g); ≤±5-6g (300g-500g); ≤±8-10g (500g-1000g);(depends on material) |
| 5 | Power Source | 3P/AC380V/50Hz/6.0KW |
| 6 | Duster Pipe | Φ98mm |
| 7 | Air Pressure | 0.6-0.8MPa |
| 8 | External Dimension | 3665×2420×1575mm(L×W×H) |
| 9 | Weight | 3100Kg |
After-sales Service:
(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 2 year
(2) Long-time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. The engineer's salary will be USD100.00/day/person.
We can also supply training processes for your engineers who come to china, so you can fit and debug machines by yourself.
