100-500g Powder Automatic Pouch Filling And Sealing Machine rotary pouch filler

Product Details:
Place of Origin: CHINA
Brand Name: JWIM
Certification: CE,ISO9001, ISO18000,ISO14000
Model Number: GD8-200
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden cases
Delivery Time: 15-90 work days
Payment Terms: L/C, T/T
Supply Ability: 1 Osets per month
Specifications Product Description Request A Quote
Specifications
Specifications
Name: GD8-200 Automatic Rotary Pouch Packing Machine
Touch: Sehneider
PLC: Omron
Connector: Schneider
Button: Schneider
Solenoid Valve: MAC
Cylinder: SMC
High Light:

100-500g Powder Pouch Filling And Sealing Machine

,

Automatic Pouch Filling And Sealing Machine rotary

,

auto bag filling machine

Product Description

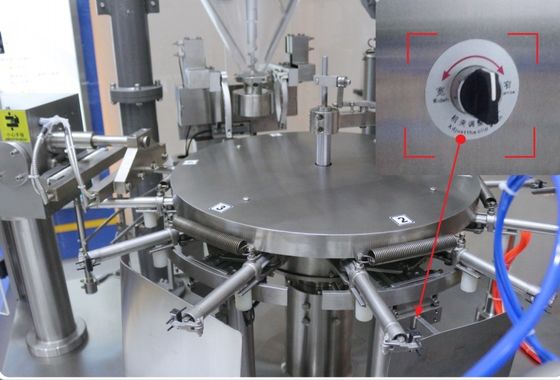

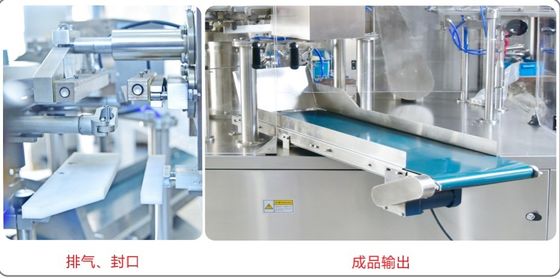

100-500g Powder GD8-200 Automatic Rotary Pouch Packing Machine

1. Introduction

The machine is making up with the automatic packing machine and filling system. It has wide application range and can pack liquid, powder, granule and solid products by changing different dosing system. The machine can change different packing volume in short period of time. The auto pouch feeding width can be adjusted by the handle. The machine is with inspecting device to make sure no fill and seal if the pouch is not opened successfully. This will save the pouch and products



2. Main Technical Parameters

   2.1 Model: GD8-200

   2.2 Mechanical Station: 8

   2.3 Pouch Size: Width: 100-230mm, Length: 100-300mm

   2.4 Packing Speed: 20-40 pouches/min

   2.5 Pouch Feeding: Bottom Pouch Feeding

   2.6 Sealing Type: Strip sealing, double sealing

   2.7 Power Source: 3KW

   2.8 Weight: 1500KG

  2.9 External Dimension: 1550*1350*1400mm (L*W*H)

  2.10 Station Explain: Bag Feeding-Transit-Bag Opening-Filling-Transit-Sealing-Sealing-Output
