8-10cartons min high speed case erector packaging machine for large boxes

Product Details:
Place of Origin: CHINA
Brand Name: JINWANG
Certification: CE,ISO9001,ISO18000,ISO14000
Model Number: GPK-50
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden cases
Delivery Time: 15-90 work days
Payment Terms: L/C, T/T
Supply Ability: 1 Osets per month
Specifications Product Description Request A Quote
Name: GPK-50 Automatic Carton Erector
The Material Of Frame: Carbon Steel Paint
Power: 200W
Capacity: 8-10 Cartons/min
Carton Storage Quantity: 100pcs(1000mm)
Air Pressure: 6kg/cm3
Air Consumption: 450L/min
Weight: 450kg
High Light:

case erector for large boxes


high speed case erector packaging machine


case erecting equipment

Product Description

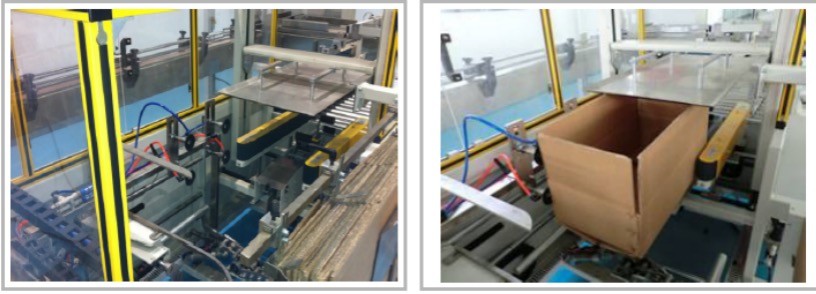

8-10 cartons/min GPK-50 Automatic Carton Erector

1. Introduction:

The working process of the carton erector is open the carton, carton in shaped, bend the carton bottom and seal the bottom with adhesive tapes. After the carton bottom is bend and sealed, it will convey to the carton packing machine. The carton erector is widely used in the automatic carton packing industry. The whole process is controlled by the PLC and touch screen. It is a necessary part in the automatic packing process


2. Features

1 It is with simple structure, intellectual coordinating function without human interval
2 The position of the machine is flexible which is easy for installation and testing
3 Vertical carton storing, cartons can feeding at any time without stop, this will save time
4 It can finish the carton forming, folding and bottom sealing at one time
5 It can both work separately and work with the complete filling line
6 It can use different sizes of cartons, only manually adjusting when change different cartons, it only takes 1-2 minutes
7 It has features of stable operation, wide application range and high packing qualification rate
8 The machine is with high automation: auto carton erecting, folding and bottom sealing. It uses PLC+Touch Screen control; it is a necessary part in the filling line
9 The parts are precise designed, no vibration during operation, stable running


3.Main Technical Parameters

1 Carton Size L: 200-500mm, W: 200-400mm, H: 200-500mm
2 Platform Height Min: 600mm, Max: 720mm
3 Sealing Speed 8-10 cartons/min
4 Power Source 220V, 50HZ
5 Air Supply 6-7KG
6 Air Pressure 6kg/cm3
7 Adhesive Tape Size W 48-60-75mm*L 1000
8 Weight 450Kg
9 External Dimension: 2100×1900×1450mm (L*W*H)
