Place of Origin:
Changzhou, China
Brand Name:
JWIM
Certification:
CE, ISO9001
Model Number:
GMB-02D

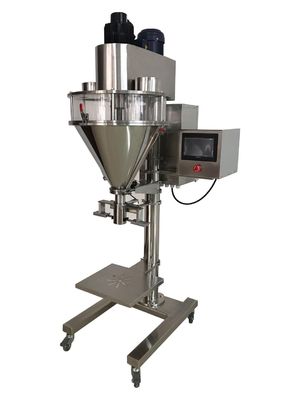

GMB-02D Semi Automatic Powder Packing Machine for Pre-formed bags from 10g-2KG
Features:
1.The machine could be cleaned even the corner within 10 minutes.
2.The stirring place could be adjusted at will which enable high filling precision of the powder.
3.Convenient maintenance to the stirrer, material screw, as well as the long axis.
4.High-precision makes the motor, long axis, bunker, material screw, material cupper, etc. of highly concentric.
5. It is with high working efficiency, low wear and tear of the material screw.
6. Measuring cup and bin is adopting clamp with fast connection, you can use it more easily.
Technical Parameters:
| Model | GMB-02D |
| Filling Volume | 10g-2000g |
| Speed | 1200 pouchs/minute |
| Precision | ±1% |
| Power Source | AC380V or 220V, 1.5KW |
| Weight | 180Kg |
| External Dimension | 1000*650*1900mm (L*W*H) |
Allocations:
| PLC | Taiwan Weinview |
| Touch Screen | Taiwan Weinview |
| Power Switch | Taiwan Delta |
| Emergency Stop Switch | Wenzhou Zhengtai |
| Weighing Sensor | XI'an China Electric Logging |
| Optoelectronic Swtich | Japan CDD |
