1kg Semi Automatic Auger Powder Filling Machine filler 1800bags Hour 1.8KW

Product Details:
Place of Origin: China
Brand Name: JWIM
Certification: CE,ISO
Model Number: GMB-02D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden cases
Delivery Time: 15-90 work days
Payment Terms: L/C, T/T
Supply Ability: 1 set per month
Specifications Product Description Request A Quote
Specifications
Specifications
Product Name: GMB-02D Powder Semi-automatic Pouch Packaging Machine
Body: SS304
Capacity: 1300 For 1kg
Accuracy: ±0.3%
Filling Range: 10-2000g
Power Supply: 1.8KW 220V 50Hz
Machine Size: 710×810×1900mm(L×W×H)
Machine Weight: Around 180kg
Auxiliary Machine: Powder Elevator
Environmental Protection Equipment: Dust Collector
High Light:

semi auto powder filling machine

,

semi automatic powder filler

,

semi automatic auger filling machine

Product Description

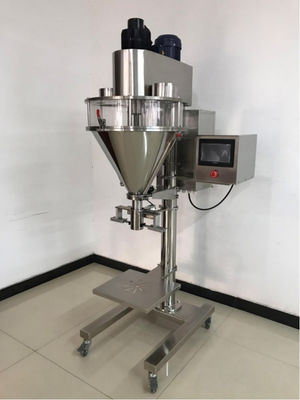

1kg Powder Semi-automatic Pouch Packaging Machine with 1300 Capacity



Introduction of 1kg Powder Semi-automatic Pouch Packaging Machine



This semi-automatic pouch packaging machine has industrial PLC with touch screen control. For workers, it is  very easy to operate.  High stability ensures the daily production. It can pack pesticide, fertilizer, veterinary drug, etc. A dust collector and powder elevator are recommended.



Parameters of Pouch packaging machine



1 Capacity 1200-1800 bags/hour
2 Accuracy ±0.3%
3 Packing Range 10-2000g
4 Power supply 1.8KW 220V 50Hz
5 Machine size 710×810×1900mm(L×W×H)
6 Machine weight Around 180kg




Features of Powder semi-automatic pouch packaging machine



1. The control system is industrial PLC, which has strong anti-interference and will not crash.

2. Touch screen operation, various parameters are clear at a glance, simple and convenient, suitable for new workers, easy to teach, easy to learn, easy to guide.

3. The weighing module adopts industrial special module, which solves the problem of electronic scale instability.

4. The mixing motor is maintenance free and noiseless.

5. The powder feeding motor adopts high speed, low noise three-phase digital stepping motor, which is convenient and simple for speed regulation.

6. The operation software is intelligent,it can be used by everyone.

7. All kinds of connectors are connected by quick clamp.

8. Transparent bin, the material running status is clear at a glance.

9. The silo can be opened, and it can be cleaned and maintained without removing the silo, which greatly reduces the labor intensity of workers and improves the labor efficiency.

Advantage:

(1) It can be cleaned at any time and in ten seconds without dead angle.

(2) The relative position between the agitator and the metering screw can be easily adjusted to achieve the best packing accuracy

(3) It is convenient to maintain the agitator, metering screw, long shaft and other parts.

10. High precision processing means and perfect mechanical structure make the motor, long shaft, silo, metering screw, cup and other parts highly concentric

11. Synchronous mixing function, to solve a large part of dry, bulk and fine materials leakage problem.

12. Photoelectric induction filling mode is compatible with foot switch filling mode.

13. Install the mobile caster with brake to facilitate the operation of female workers.

Recommendation of auxiliary equipment

1 Powder elevator

1kg Semi Automatic Auger Powder Filling Machine filler 1800bags Hour 1.8KW 0

2 Dust collector

1kg Semi Automatic Auger Powder Filling Machine filler 1800bags Hour 1.8KW 1
