Grasping Type Automatic Box Filling Machine

Product Details:
Place of Origin: made in China
Brand Name: Jinwang
Certification: CE,CO,ISO
Model Number: KZ-2D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden cases
Delivery Time: 15-90 work days
Payment Terms: L/C, T/T
Supply Ability: 1 Osets per month
Specifications Product Description Request A Quote
Model: KZ-2D
Name: Automatic Carton Packing Machine Automatic Grasping Type Carton Filling Machine Packer High Speed
Packing Speed: 4-8 Cartons/min
Suitable Carton Size: L300-480mm W200-400mm H100-300mm
Max Lifting Range: Highest Lifting Point To The Ground 3300mm
Machine Size: 1995×1990×2910mm(L×W×H)
Power: ~380V 50Hz/4KW
Machine Weight: Around 2000Kg
High Light:

Grasping Type Automatic Box Filling Machine


Automatic Box Filling Machine 4KW


milk carton filling machine

Product Description

Automatic Carton Packing Machine Automatic Grasping Type Carton Filling Machine Packer High Speed


This machine is suitable for the automatic packing of circular or square glass bottles and plastic bottles. It can realize the automatic secondary packaging of cartons and can be applied to the automatic production of bottled products in the food, cosmetic, pharmaceutical, and pesticide industries.



Working Process

1 Bottle input(Single channel automatic bottle feeding)

2 Bottle push(Cylinder pushes the bottles and in rows)

3 Grab bottle(Cylinder dives to grab the bottles automatically)

4 Bottle lifting(Lift the bottles to the top of bottle grab station)

5 Translation (Servo translation to the top of packing station)

6 Bottle release (Dive to place the bottles, finish the automatic carton packing)


Technical Parameters

1 Packing speed 4-8 cartons/min(without middle board)
2 Suitable carton size L300-480mm W200-400mm H100-300mm
3 Suitable bottle size Φ40-90mm H80-230mm
4 Air pressure 0.6-0.8MPa
5 Power ~380V 50Hz/4KW
6 Max lifting range Highest lifting point to the ground 3300mm
7 Machine size 1995×1990×2910mm(L×W×H)
8 Machine weight Around 2000Kg


Grasping Type Automatic Box Filling Machine 0


Major characteristics:
The carton packaging line opens, packages, and seals cartons full of regular or flat glass and plastic bottles. This carton packaging machine is used to package food, beverages, medicine, cosmetics, fertilizers, and chemicals.
1. Compact combined opening, packing, and sealing machine.

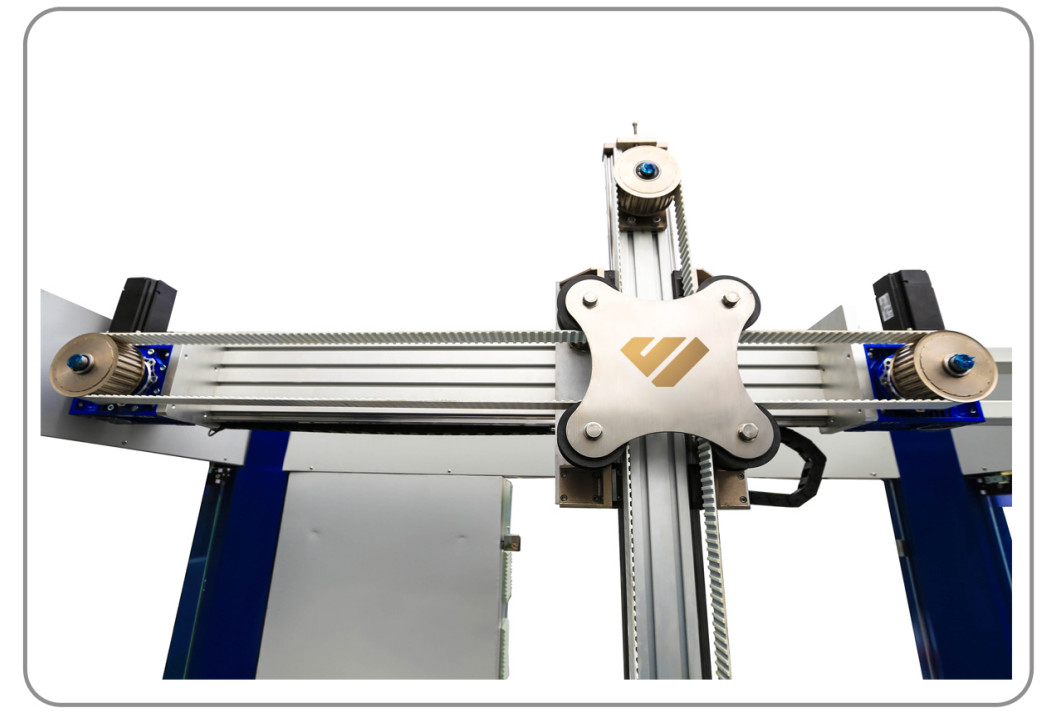

2. Double servo drive and cross move structure does automatic bottle selection and packing.
3. Inflatable bottle grab structure adjustable for different bottles.
4. Easily adjustable for height and other settings.
5. Efficient opening and carton conveying structures.
6. Effective and reliable sealing.
