Vertical Case Erector With Bottom Sealer

Product Details:
Place of Origin: made in China
Brand Name: Jinwang
Certification: CE,CO,ISO
Model Number: GPK-40
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden cases
Delivery Time: 15-90 work days
Payment Terms: L/C, T/T
Supply Ability: 1 Osets per month
Specifications Product Description Request A Quote
Specifications
Specifications
Name: Automatic Vertical Carton Erector Machine Opening Machine
Model: GPK-40
Speed: 8-10 Cartons/min
Suitable Carton Size: L300-650mm W200-500mm H200-500mm
Table Height: MIN:600mm MAX:720mmm
Air Pressure: 0.6-0.8MPa
Power: ~220V 50Hz/0.4KW
Suitable Tape Size: W48-60-75mm×L1000 Yards
Carton Storage: 50-80pcs
Machine Size: 2300×2100×1500mm(L×W×H)
High Light:

auto bottom case erector

,

case erector and sealer machine

,

case erector and taper

Product Description

Automatic Vertical Carton Erector Machine Opening Machine



The unpacking machine refers to the special equipment that automatically completes the unpacking, forming, and folding of the lower bottom leaves, and completes the pasting of the lower part of the adhesive tape. It opens the box, folds the bottom of the box according to a certain procedure, and seals it with adhesive tape, and then transmits it to the packing machine. The carton unpacking machine is controlled by PLC + display screen, which is very convenient for operation and is indispensable equipment for automatic scale production.



Technical parameters

1 Speed 8-10 cartons/min
2 Suitable carton size L300-650mm W200-500mm H200-500mm
3 Table height MIN:600mm MAX:720mmm
4 Air pressure 0.6-0.8MPa
5 Power ~220V 50Hz/0.4KW
6 Suitable tape size W48-60-75mm×L1000 yards
7 Carton storage 50-80pcs
8 Machine size 2300×2100×1500mm(L×W×H)
9 Machine weight ~450Kg

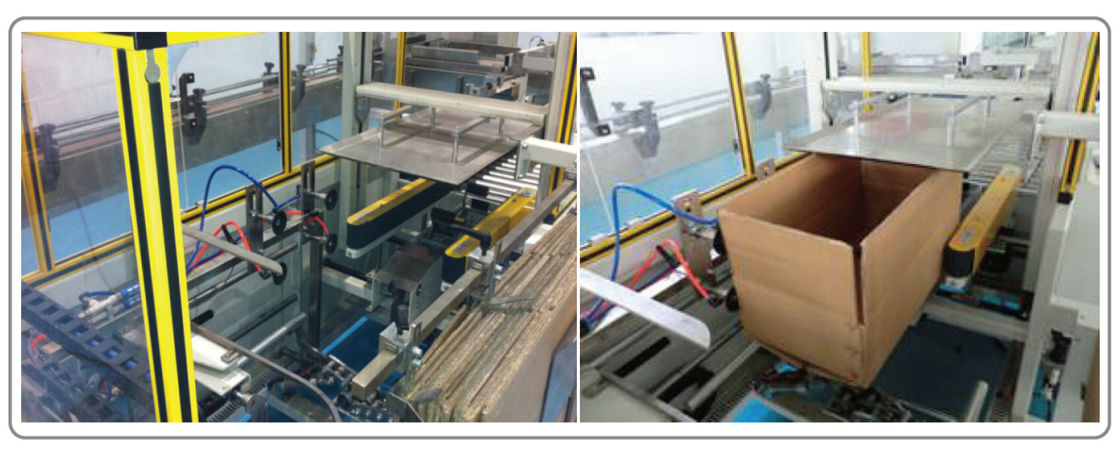

Vertical Case Erector With Bottom Sealer 0

Advantages

1. The structure is simple, the intelligent coordination function does not need human investment, and the volume is light and flexible.

2. Adopt vertical storage board mode, and can replenish carton board at any time without stop, more time, more packaging.

3. The machine has stable performance, reliable quality, strong applicability, high packaging efficiency, and long service life.

4. High degree of automation: automatic unpacking, automatic folding of the lower cover, automatic sealing of the lower adhesive tape. The machine is controlled by PLC + display screen, which is greatly convenient for operation. It is an essential assembly line equipment for automatic scale production.

5. The performance of the parts is precise and durable, the structural design is tight, the operation process is vibration-free, and the operation is stable and reliable.

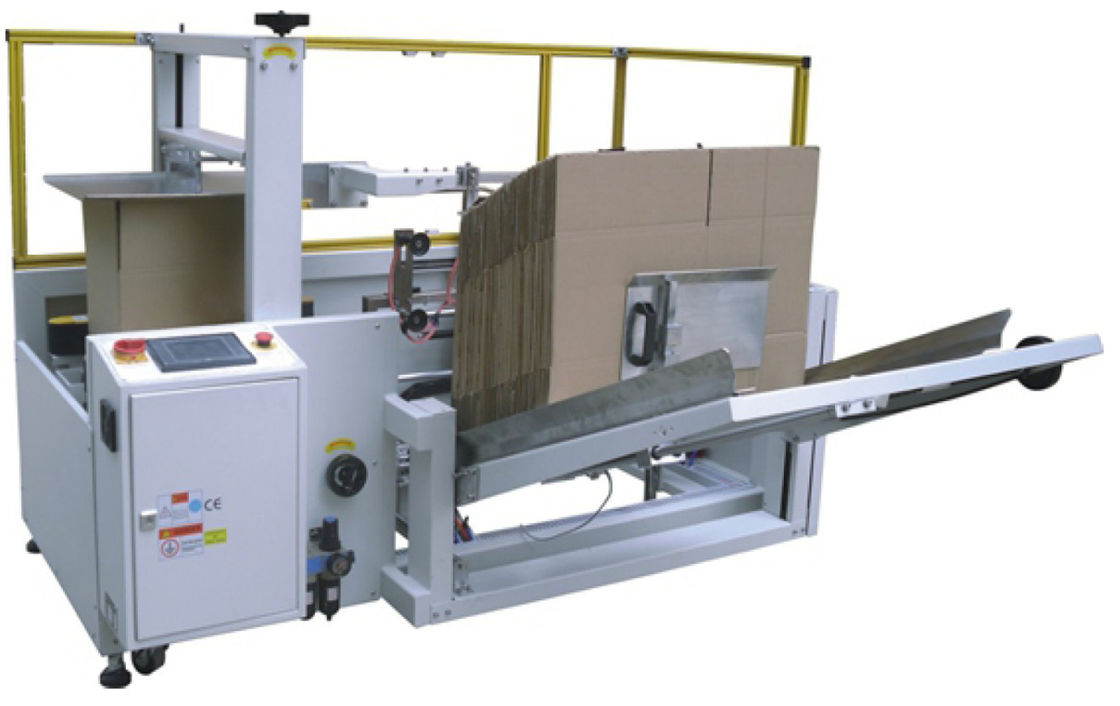

Vertical Case Erector With Bottom Sealer 1
