|Place of Origin:||made in China|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Packaging Details:||wooden cases|
|Delivery Time:||15-90 work days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||1 Osets per month|

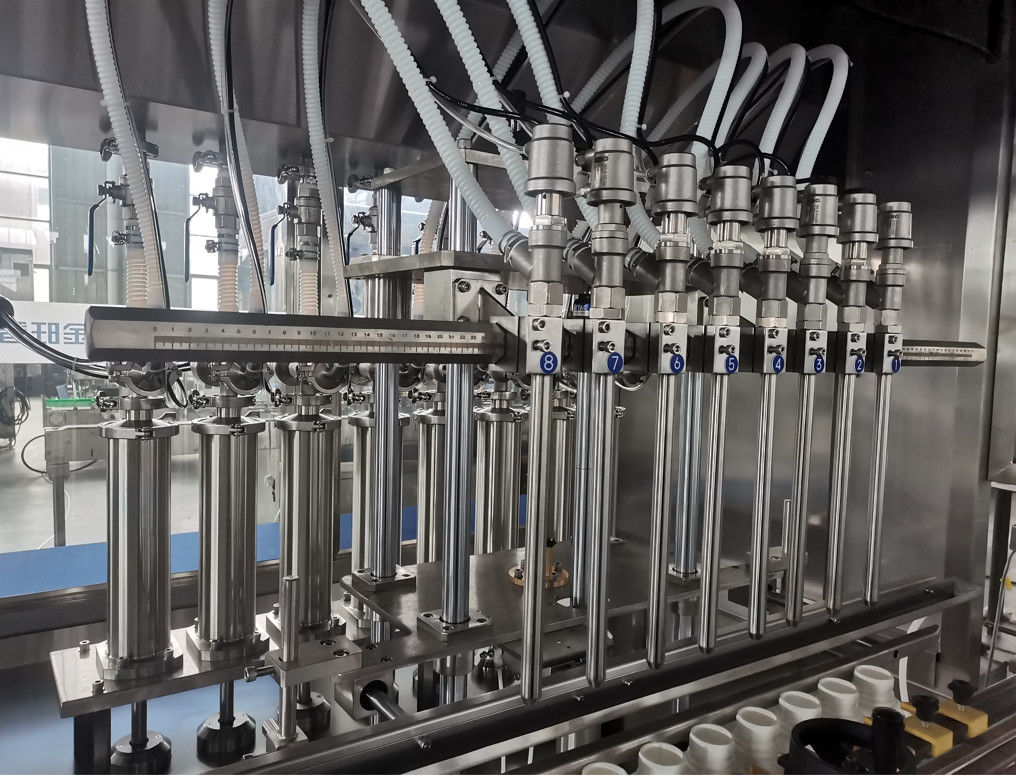

50ml, 250ml,1000ml chemical Filling Machine and capping machine linear piston filling machine (8/12/16/20 Filling heads)
Automatic linear piston filling machines are extremely flexible piston fillers capable of filling accurately and rapidly a wide variety of products from low viscosity liquids to high viscosity paste or cream with or without chunks or particulates. Widely used in the Chemical industry(e.g., grease filling machine, lubricant filling machine, etc); agrochemical industry(e.g EC filling machine, SC filling machine, SL filling machine, etc).
Automatic linear piston filler is designed for completely automatic, multiple positions, inline dispensing of liquids and pastes in volume ranging from 50ml to 1000m per cycle. Available in 4, 6, 8, 10,12, and 16 nozzle configurations to match specific production requirements, the Dual lane option is available to increase production by 100% while preserving valuable line space.
Linear piston liquid filling machinery is manufactured with a 304 stainless steel frame, It comes standard with PLC control and touch screen HMI ensuring reliable, repeatable control with minimal operator intervention, Precision bored, heavy-walled metering cylinders dispense product at accuracy up to +/- 0.2%, High-precision, the servo motor is driven screw movement faster and more precise than the pneumatic system, food-grade stainless steel, and plastics for sanitary operations or use, anodized aluminum components, plus many more features available with motorized conveyor and indexing package for integrated container handling and positioning, No container/No fill feature detects missing or mispositioned containers to prevent waste and product spillage. Unique variable, separate speed control, an actuator of a dual-stage fill provide precise “no-spill” control for top-off applications or filling difficult products.
Empty bottles are staged on the main drive conveyor prior to entering the piston filler. Bottles enter the filler and are counted by optical sensors to ensure the correct numbers of bottles are in position. Once in place, bottles are locked in position by the pneumatically operated bottle clamping mechanism. This ensures bottles are located correctly under each filling head to minimize under or over-fills. The filling process begins as a series of stainless steel valves descend into the bottles for fast, accurate, and consistent filling. After target volume is achieved, the out-gate cylinder withdraws itself from its position and allows the filled bottles to go further on the conveyor for the sealing operations.
Main Technical Parameters
|1||Nozzle Numbers||4/6/8/10/12/16/20 heads|
|2||Filling Volume||10ml-100ml/ 50ml-1000ml/ 1L-5L|
|3||Production Capacity||600bottle per hour -8000 bottles per hour|
|4||Filling Erro||±1g(100mL) ±2g(1000mL)(*Filling water)|
|5||Height of Feeding Port||2300mm|
|6||Feeding Port Diameter||Dn40|
|8||Minimum Bottle Opening||≥Φ22mm|
|13||Bottle Feeding Direction||From left to right|
Heavy-duty stainless steel constructed
Stainless steel Reservoir
Automatic Bottling Index kit with bottle counter
Pneumatic indexing gates (count in, count out)
Automatic product level sensing float system
Easily adjustable nozzle height settings accommodate vials to gallons
User-friendly PLC controls with touch screen HMI
No bottle/No fill sensor
Bottle backup sensor (downstream) delays operation until jam is cleared
Able to output multiple doses per container for large containers
Easy clean stainless steel quick connect fittings
Diving heads nozzles for the bottom-up filling to reduce foam
Neck grabbers for containers with a small opening
Specifications are subject to change without notice, All rights are reserved.
How to choose an automatic piston filling machine is a big challenge for customers, If you are unsure how to choose a piston filling machine, Please let me know
What product to fill
What output capacity to achieve
What material and shape of containers
What size of containers to fill
Our professional team will help you to choose
So please contact us for specific advice on the best solution for you now.
