Place of Origin:
Changzhou, China
Brand Name:
JWIM
Certification:
CE, ISO9001
Model Number:
CC50-2
CC50-2 Semi Automatic Two Heads Weight Filling Machine by Mettler Toldeo Weighing Scales
Introduction:
CC50-2 Semi-auto Scale Fixed-quantity Filling Machine is making up of the scale (with roller), fast and slow filling (with dive function), and weight control meter. This filling machine can do the filling of good fluidity materials.
Features:
1. Compacted structure and simple operation.

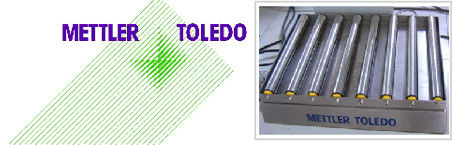

2. High Precision: Adopts America METTLER TOLEDO weighing sensor and control meter, ensures that the filling precision of measurement.
3. Electric weighing scale plus with intelligent control cabinet will monitor the weight timely. Fine-tune could be finished with a button.
4. Adopt fast and slow speed valve that ensuring filling accuracy and has no effect to speed.
5. Diving down filling nozzle, it will in prevent from the spilling out.
6. It is equipped with high performance pneumatic opponents, which is very reliable.
Technical Parameters:
| Model | CC50-2 |
| Filling Heads | 2 |
| Filling Range | 5L-50L |
| Applicable Bottle Dimension | Max: Φ450*600 mm Round and Flat drum |
| Capacity | ≤120 drums/hour (25Kg) |
| Air Pressure | 0.6-0.7MPA |
| Power | 220V, 50HZ, 75KW |
| Material | SS304 |
| Weight | 230Kg |
| External Dimension | 1340*720*1700mm (L*W*H) |
Allocations:
| No. | Name | Brand | Remark |
| 1 | Weighing System | METTLER TOLEDO |  |
| 2 | Low Voltage Apparatus | Schneider | |
| 3 | Switch Button | Schneider | |
| 4 | Cylinder | F-TEC | |
| 5 | Solenoid Valve | F-TEC | |
