Place of Origin:
Changzhou, China
Brand Name:
JWIM
Certification:
CE, ISO9001
Model Number:
GX-6B
GX-6B Automatic Monoblock Filling & Capping Machine Piston Filling+Screw Capping
Introduction:
GX-6B Filling, Capping integrated machine uses SUS304 which has the feature of anti-corrosive. The machine is making up with servo piston filling unit, bottle tightening transmission structure, capping wheels and cap unscrambler. It can finish filling and capping. The machine has the features of simple structure, easy cleaning, easy operation and quick change over. It is widely used in the filling of various products for both non viscosity and high viscosity. Only 1 man can operate the machine.
Features:
1. Simple structure and takes less space, it is an integrated filling, capping machine. The machine is SUS304 frame, organic glass cover which is safe, green and easy for cleaning.
2. France Schneider Control System, central control system which is stable, safe, green and low energy consumption.
3. Schneider system and servo motor structure (PLC control, servo motor drives the double transmission structure), this will make sure the high and stable filling precision.
4. Linear designed pistons and top & bottom quick fixing type which makes the cleaning and change of sealing rings faster.
5. PTFE sealing ring has features of high abrasive, long lifetime and low maintenance cost.
6. Combined with the development experience and market feedback, we develop the filling three way valves with the features of simple structure and good sealing. The three way valves are the patent of our company.
7. Each capping wheel is controlled by individual motor, the torque can be adjusted.
8. New material capping wheel which has the features of anti abrasion, tightening belts are one time forming with long lifetime.
9. Auto cap inspecting device is installed inside the cap sorter, the cap elevator will work automatically when there are not enough caps, and this will make sure the supply of caps.
Technical Parameters:
Model | GX-6B |
Applicable Bottle Diameter | 40-95mm |
Bottle Height | 80-230mm |
Applicable Cap Diameter | 25-50mm, Cap Height: 15-35mm |
Filling Range | 80ml-1000ml |
Filling Precision | 100ml: ±1g, 1000ml: ±2g |
Capacity | ≤2500 Bottles/hour |
Air Pressure | 0.5-0.7MPA |
Power Source | 220V, 50HZ, 3.7KW |
Air Consumption | 300L/min |
Weight | 1200Kg |
External Dimension | 2630×1175×2000mm (L*W*H) |

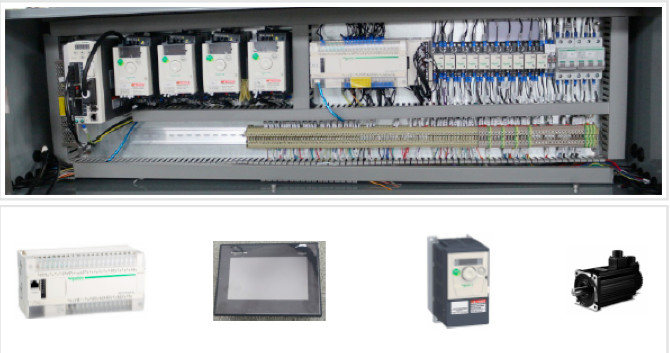

Allocations:
NO. | Name | Brand | Remarks |
1 | PLC | Schneider | ![]() |
2 | Touch Screen | Schneider | ![]() |
3 | Inverter | Schneider | ![]() |
4 | Sensor | Sick | ![]() |
5 | Proximity Switch | Leuze | ![]() |
6 | Pressure Switch | SMC | ![]() |
7 | Cylinder | F.Tec | ![]() |
8 | Solenoid Valve | F.Tec | ![]() |
9 | Button | Schneider | ![]() |
10 | Alarm Light | Schneider | ![]() |
11 | Circuit Breaker | Schneider | ![]() |
