2.4KW 7000BPH automatic linear capping machine Protection Cover screw cap

Product Details:
Place of Origin: made in China
Brand Name: Jinwang
Certification: CE,CO,ISO
Model Number: FXZ-6A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden cases
Delivery Time: 15-90 work days
Payment Terms: L/C, T/T
Supply Ability: 1 Osets per month
Specifications Product Description Request A Quote
Specifications
Specifications
Model: FXZ-6A
Name: Automatic Capping Machine Linear Type With Protection Cover (screw Cap)
Capacity: ≤7000BPH
Bottle Dimenison: Φ35-95mm H80-230mm
Cap Dimension: Φ25-50mm H15-40mm
Air Source: 0.5-0.7 Mpa Stable And Clean Air
Power Supply: ~220V 50Hz
Power: 2.4KW
Weight: 1000Kg
High Light:

7000BPH automatic linear capping machine

,

2.4KW automatic linear capping machine

,

linear bottle capping machine

Product Description

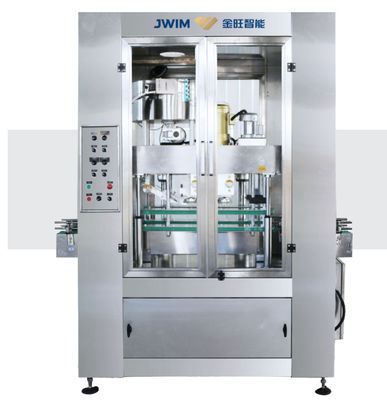

Automatic Capping Machine Linear Type with Protection Cover (screw cap)

This automatic capping machine is used for closing screw caps, it is made up of 3 parts: cap feeding system, cap loading system, and cap closing system.
The linear structure is flexible to run different size bottles without change parts.
The cap feeding system will be made according to the capped sample( by vibrating bowl or cap elevator).
It is also ok for closing the pump cap, trigger cap (cap feeding and loading have to be done by hand).
PLC control system and the touch screen are available for your option.
Simple system and easy operation, the machine is widely used in foodstuff, pharmacy, cosmetic, daily chemical, fertilizer, and chemical industries.



2.4KW 7000BPH automatic linear capping machine Protection Cover screw cap 0



Technical Parameters

1 Capacity ≤7000BPH
2 Bottle Dimension Φ35-95mm H80-230mm
3 Cap Dimension Φ25-50mm h15-40mm
4 Air Source 0.5-0.7 Mpa
5 Power Source ~220V 50Hz/2.4KW
6 Weight ~1000Kg
7 External Dimension 2000×1330×2255mm(L×W×H)
