Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | JINWANG |
| Certification: | CE,ISO9001,ISO18000,ISO14000 |
| Model Number: | MH-FJ-1A+MH-101B |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | wooden cases |
| Delivery Time: | 15-90 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1 Osets per month |

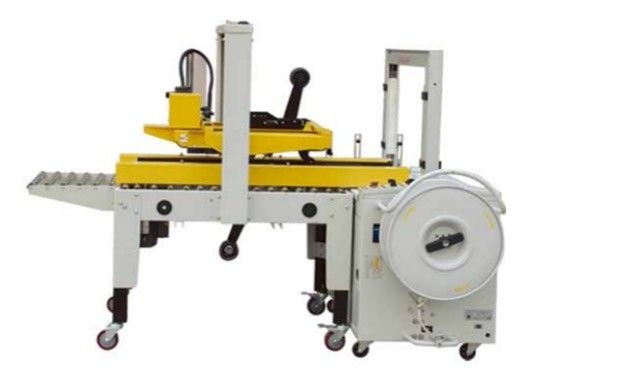

12-15 cartons/min, 2.5 second/lane Carton Sealing & Strapping Machine
1. Introduction:
The machine seals the carton and wrap with packing belts, then tighten the cartons by melting the two ends of the packing belt. The function of the wrapping machine is to make sure the packing belt closely tighten the cartons so it will not loose during transportation
2.The Technical Parameter
| 1 | Packing Speed | 12-15 cartons/min, 2.5 second/lane |
| 2 | Platform Size | 450mm (can be customized) |
| 3 | Carton Size | L (200-550)*W (150-480)*H (127-480) mm |
| 4 | Strapping: Parallel | 1-Multiple lane |
| 5 | Tape Size | 48-72mm |
| 6 | Strap Size | Thickness (0.55～1.2)mm, Width (9～15)mm (customized) |
| 7 | Power | 380V/50HZ, 1200W/5A |
| 8 | Weight | 290kg |
| 9 | External Dimension | W: 1070mm, H: 668mm |
| 10 | Control System | “OMRON”PLC, France“PE”and sensor switch control |
