1KW Carton Packing Machine 2-3Cartons Min Semi Automatic Box Packing Machine

Product Details:
Place of Origin: Changzhou, China
Brand Name: JWIM
Certification: CE, ISO9001
Model Number: KZ-S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden cases
Delivery Time: 15-90 work days
Payment Terms: L/C, T/T
Supply Ability: 1 Osets per month
Specifications Product Description Request A Quote
Specifications
Specifications
Machine: KZ-S 2-3 Cartons/minute Semi Automatic Carton Packing Machine
Material: Carbon Steel Frame
Speed: 2-3 Cartons/minute
Applicable Bottle Diameter: 40-90mm
Applicable Bottle Type: Plastic/Glass Round Bottles
Carton Size: (300-500)*(200-350)*(100-300) Mm (L*W*H)
High Light:

3Cartons Min Semi Automatic Box Packing Machine

,

Semi Automatic Box Packing Machine 1KW

,

semi automatic carton packing machine 1KW

Product Description

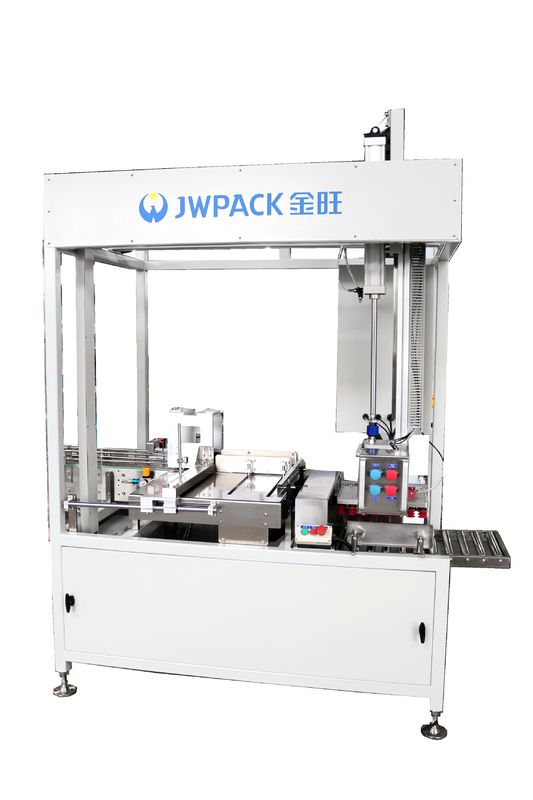

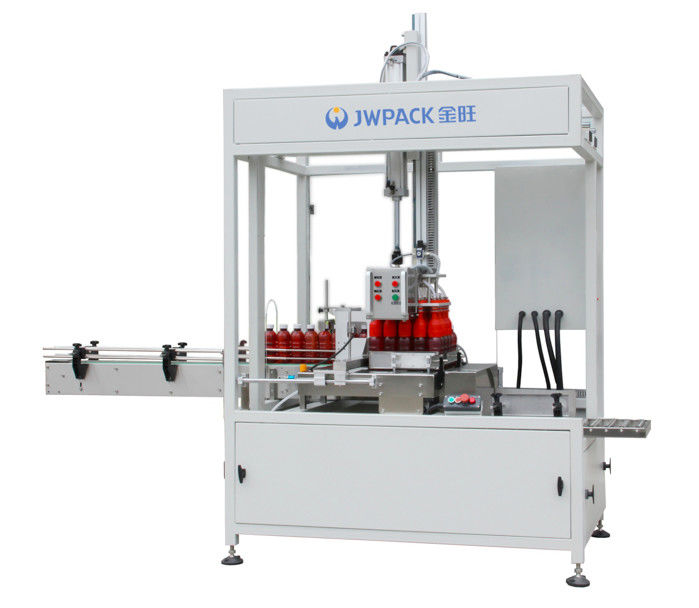

KZ-S 2-3 Cartons/minute Semi Automatic Carton Packing Machine



Introduction:

KZ-S Semi auto case packing machine is the new economical semi auto packing system. It can make the whole packing process more easy and simple. The machine can be operated by one operator to finish the whole process from bottle gripper to final packing.



Features:

1. One man operation can finish the hourly 3000-6000 bottles packing

2. It has simple structure about the length of 2 meters

3. Wide application: round plastic, glass, aluminum bottles

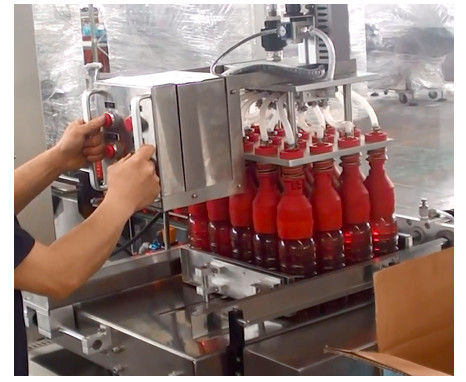

4. Bottle gripper operated by the buttons which is easy to learn and has low requirement of the operators



Technical Parameters:

Model KZ-S
Capacity 2-3 Cartons/min
Applicable Bottle Diameter 40-90mm
Applicable Bottle Height 80-230mm
Applicable Case Size (300-500)*(200-350)*(100-300) mm (L*W*H)
Power Source 220V, 50HZ, 1KW
External Dimension 2000*1100*3000mm (L*W*H)
Weight 350Kg
