1 2 Heads Bucket Automatic Capping Machine 4000BPH 10L-30L 4.1KW

Product Details:
Place of Origin: made in China
Brand Name: Jinwang
Certification: CE,CO,ISO
Model Number: FXG-1D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden cases
Delivery Time: 15-90 work days
Payment Terms: L/C, T/T
Supply Ability: 1 Osets per month
Specifications Product Description Request A Quote
Specifications
Specifications
Model: FXG-1D
Name: 10L-30L Bucket Automatic Capping Machine 1/2 Capping Heads
Power Supply: AC220V/380V; 50/60 Hz (may Customized)
Power: 4.1KW
Qualification Rate: ≥99.9% (Bottle Center Deviation < 1 Mm, Bottle Month Height Deviation < 1 Mm)
Bottle Feeding Direction: From Left To Right
Production Capacity: 2500 / 4000 Bottles/hour
Machine Weight: ~1200Kg
High Light:

Bucket Automatic Capping Machine 4.1KW

,

Automatic Capping Machine 4000BPH

,

bucket capping machine

Product Description

10L-30L Bucket Automatic Capping Machine 1/2 Capping Heads



This machine is specially designed for 1-5L lubricant products. It adopts CNC single-track electric single-head grab-type tracking screw cap.
France Schneider servo system, France Schneider PLC programmable control, touch screen man-machine interface operation, all parameters are evenly modified in the touch screen. Automatic gripping and capping are completed by the servo motor, and the movement is precise and the speed is fast. The servo system + torque module controls the capping head, and the cap tightness is freely set.
When the capping head is working, the set torque is automatically stopped. Electric rotary type capping machine adopts double photoelectric screening for positive and negative cover, and the screening pass rate is 100%.
The whole machine is made of 304 stainless steel material.

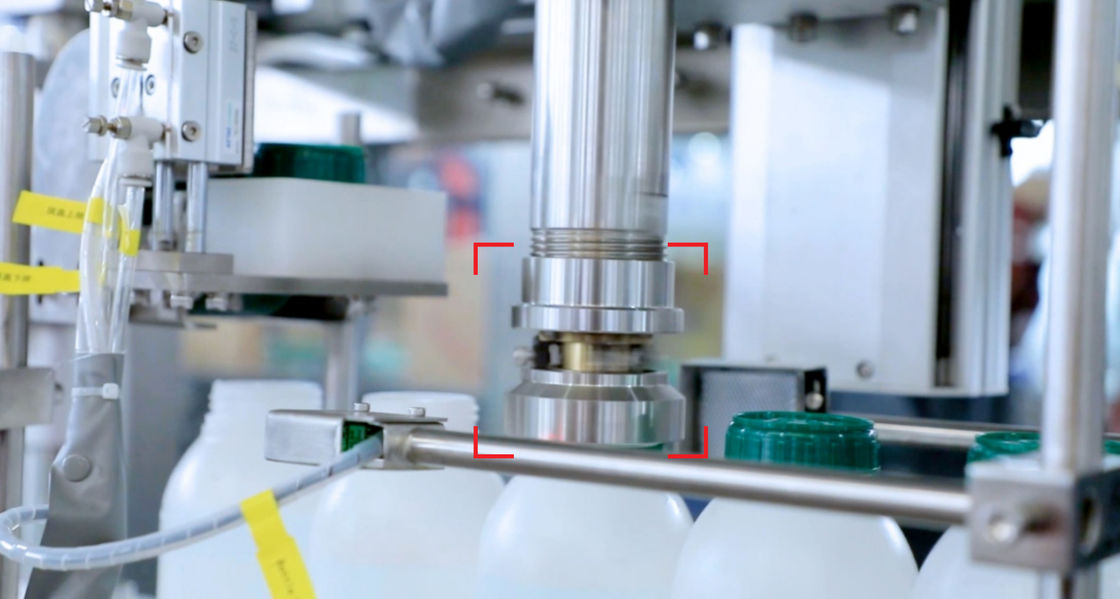

1 2 Heads Bucket Automatic Capping Machine 4000BPH 10L-30L 4.1KW 0



Technical Parameters

1 Capacity ≤2500BPH~4000BPH
2 Qualification Rate ≥99.9%
3 Applicable Drum

Min.:140×60×230mm Max.:260×145×330mm

(Bottle center deviation < 1 mm, bottle month height deviation < 1 mm)

4 Cap Size Φ25-70mm
5 Air Pressure 0.6-0.8 Mpa
6 Power Source ~380V 50Hz 4.1KW
7 Weight ~1200Kg
8 External Dimension 1995×1380×2237mm(L×W×H)


Advanced Features

1. Save labor: Conventional capping machine shakes the bottle's mouth. Contaminating the bottle body and the conveyor belt requires one person to clean the bottle body and the bottle mouth. The swing arm capping machine does not shake the liquid, eliminating the need to manually wipe the bottle body and the bottle mouth.

2. Quality Improvement: This equipment is the latest development of our company. It does not stop at the time of capping, no material shakes out of the bottle mouth, does not contaminate the bottle body and the conveyor belt, has no influence on the aluminum foil sealing, and improves product quality.
3. Adopting the imported motion module controller + motion module control follow-up capping method, the production capacity: ≤2500 bottles/hour.

4. Adopt servo motor control the bottle separating belt, and position the drum more precisely, which can ensure a high cap qualification rate.

5. No consumable parts: Replacement specifications only need to replace caps with different specifications and can be replaced in 10 minutes.

6. Fast Change Over. Electric adjustment in touch screen by fine-tuning. Mechanical adjustment is achieved by hand-cranked screw and scale ruler, which is quick and convenient.

7. The whole machine adopts an imported system France Schneider opponents, speed is faster and more stable.




1 2 Heads Bucket Automatic Capping Machine 4000BPH 10L-30L 4.1KW 1





After-sales Service:

(1) Under stable voltage, the machines' quality that we sold will be guaranteed for 2 year
(2) Long-time technology will be supplied.
(3) We can dispatch our engineer to your side for installing and debugging machines. Engineer's round-trip tickets, accommodation, and your side traveling fee will be charged by you. The engineer's salary will be USD100.00/day/person.
We can also supply training processes for your engineers who come to china, so you can fit and debug machines by yourself.
