100g-1kg Rotary Pouch Packing Machine For Salt Powder Veterinary Fertilizer Chemicals

Product Details:
Place of Origin: made in China
Brand Name: Jinwang
Certification: CE,CO,ISO
Model Number: GD6/8-300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden cases
Delivery Time: 15-90 work days
Payment Terms: L/C, T/T
Supply Ability: 1 Osets per month
Specifications Product Description Request A Quote
Specifications
Specifications
Name: 100g-1000g Rotary Pouch Packaging Line Suits For Veterinary, Fertilizer, Chemicals Powder Granule Product
Model: GD6/8-300
Capacity: 10-25pouch/min * Actual Capacity Depends On The Packaging Material
Applicable Size: Pouch Width 200-300mm; Pouch Length 150-410mm (customized)
Pouch Pattern: Flat Bag;
Packing Volume: 100g-1000g
Filling Precision: ±1%(depends On The Packaging Material)
Sealing Style: Net Type. Sealing Width 10mm-15mm (can Be Adjusted Slightly)
Power Supply: AC 380V±10%,3-phase 50Hz
Power: 4KW
Air Source: 0.6-0.8 Mpa Stable And Clean Air
External Equipment: 1960×1950×1660mm(L×W×H)
Gross Weight: 1700Kg
High Light:

1kg Rotary Pouch Packing Machine

,

1Kg Powder Packing Machine

,

1 Kg Salt Packing Machine

Product Description

The machine is rotary structure, eight working positions, wide range of packaging, can package liquid, powder, particles, solids, materials, just according to different materials choose different metering filling device can be. The machine can change the specification of the bag quickly, the width of the automatic feeding device can be easily and quickly adjusted by adjusting the handle; Testing machine in the absence of packaging or packaging not open the filling device is not filled, heat sealing device, sealing, so as to avoid wasting packaging materials and raw materials.

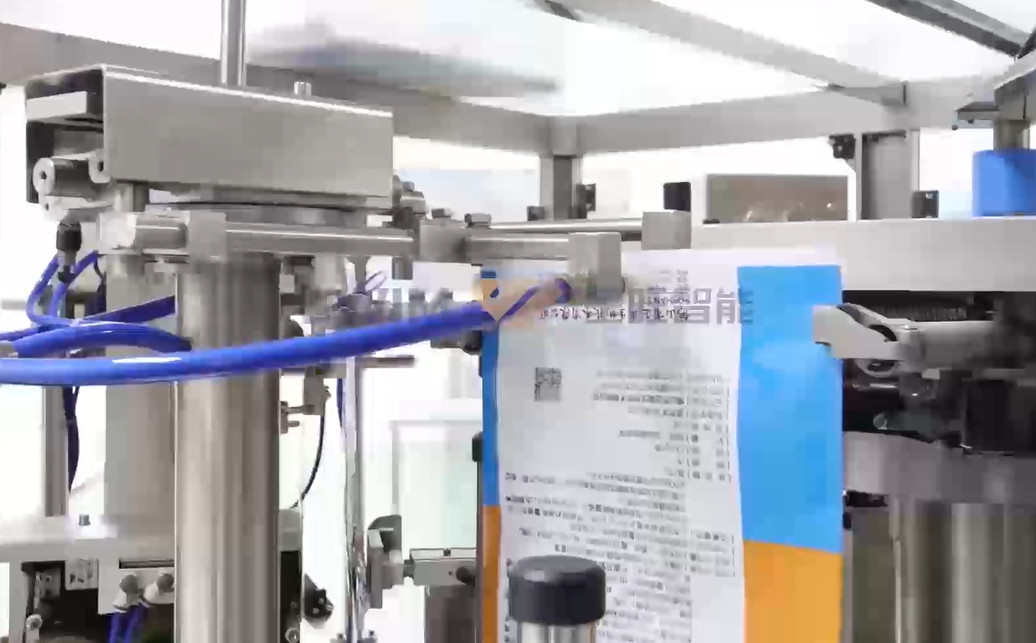

100g-1kg Rotary Pouch Packing Machine For Salt Powder Veterinary Fertilizer Chemicals 0



Technical Parameters

  Name Rotary Pouch Packing Machine
1 Working Position six/eight/ten working position
2 Pouch Material

Laminated Film

3 Pouch Pattern Flat bag;Stand-up bag; stand-up bag with zipper
4 Pouch Size

GD8-200: width 100-210mm; Length 100-350mm

GD8-300: width 200-300mm; Length 100-450mm

GD8-350: width 250-350mm; Length 200-560mm

5 Packing Range

GD8-200: 50g-500g

GD8-300: 100g-1000g

GD8-350: 1kg-5kg

6 Packing Speed

GD8-200: 20-40 bags per minute

GD8-300: 10-25 bags per minute

GD8-350: 10-15 bags per minute

7 Power Supply AC 380V±10%,3-phase 50Hz
8 Air Source 0.5-0.8kgf/cm²,0.4³/min
9 External Equipment 1960×1950×1660mm(L×W×H)
10 Gross Weight ~ 1700Kg



* The rotary pouch packing machine can be 6 or 8 or 10 stations reserved depends on the packaging product and the bag type.



Applications

Various bag types are available: All types of heat sealable performed side seal bags, block bottom bags,zip-lock recloseable bags, stand-up pouch with or without spout, paper bags, etc.

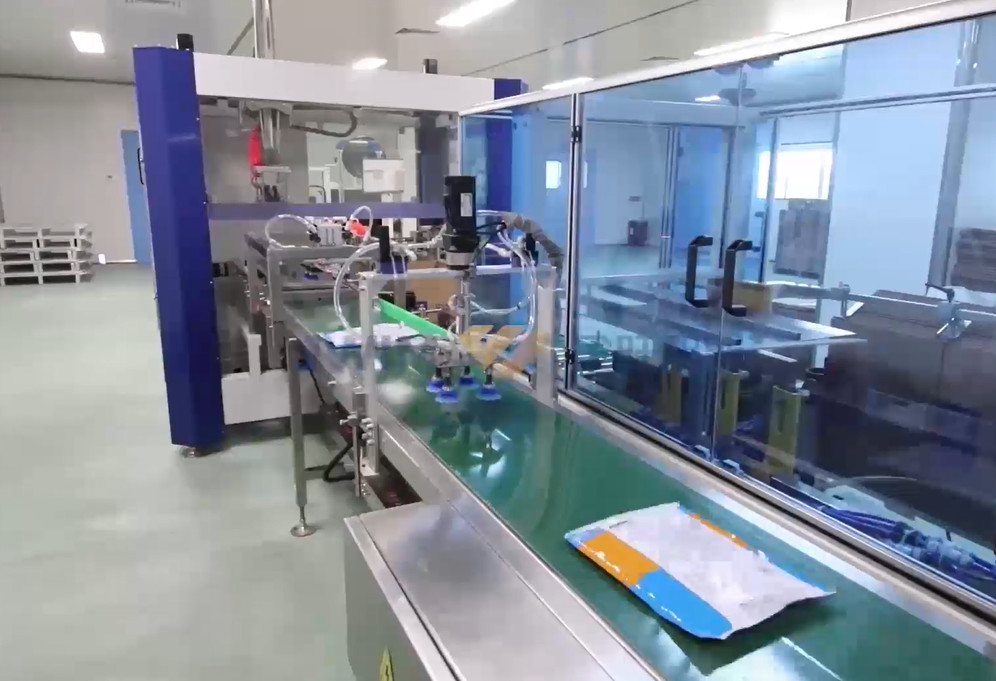

100g-1kg Rotary Pouch Packing Machine For Salt Powder Veterinary Fertilizer Chemicals 1



Work Process
Station 1 Bag Feeding
Station 2 Date Printing (option)and Open zipper bag
Station 3 Open bag
Station 4 Filling Materials
Station 5,6,7 Vibration, Air Removal, Nitrogen Filling, Close Zipper, Hole Punching, Heat Sealing
Remark: No.5.6.7 Stations are based on customer requirements for adjusting.
Station 8 Heat Sealing and Product Output
Safety Measures
1.no bag feeding, no filling, and no sealing.
2.no bag opening/open error, no filling and no sealing
3.no filling, no sealing
Stations are based on customer requirements for adjusting.

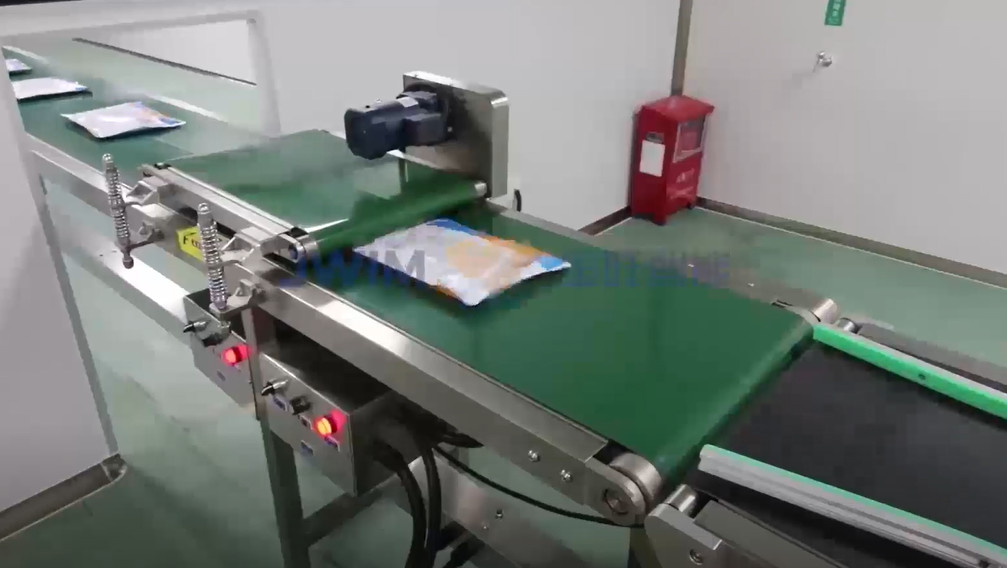

100g-1kg Rotary Pouch Packing Machine For Salt Powder Veterinary Fertilizer Chemicals 2

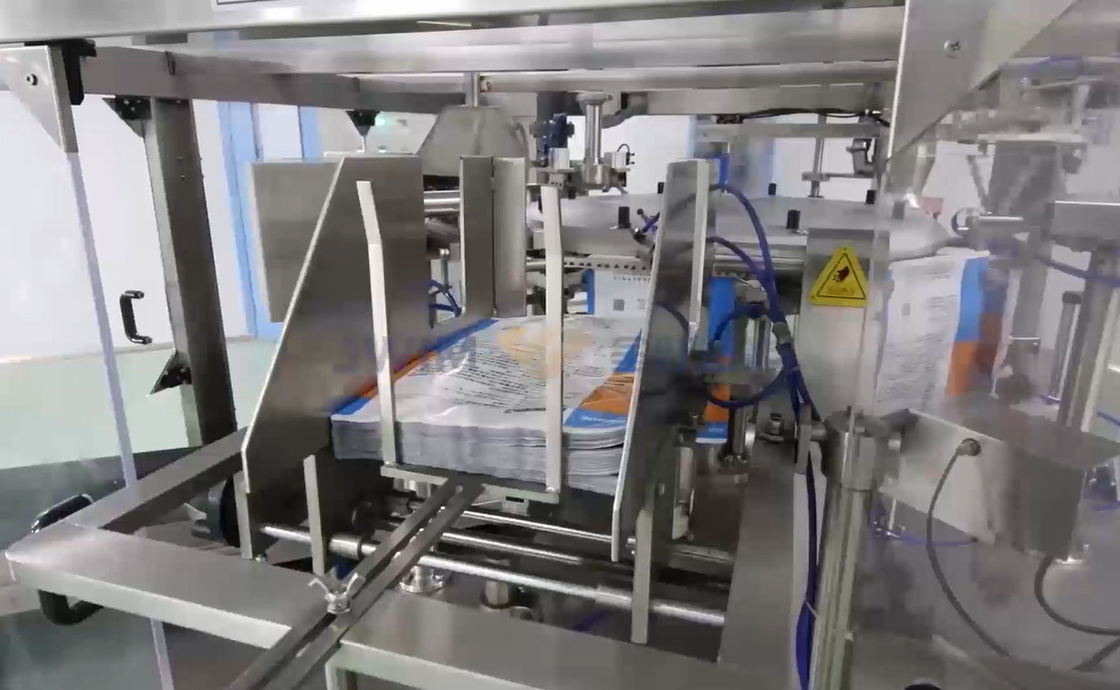

100g-1kg Rotary Pouch Packing Machine For Salt Powder Veterinary Fertilizer Chemicals 3

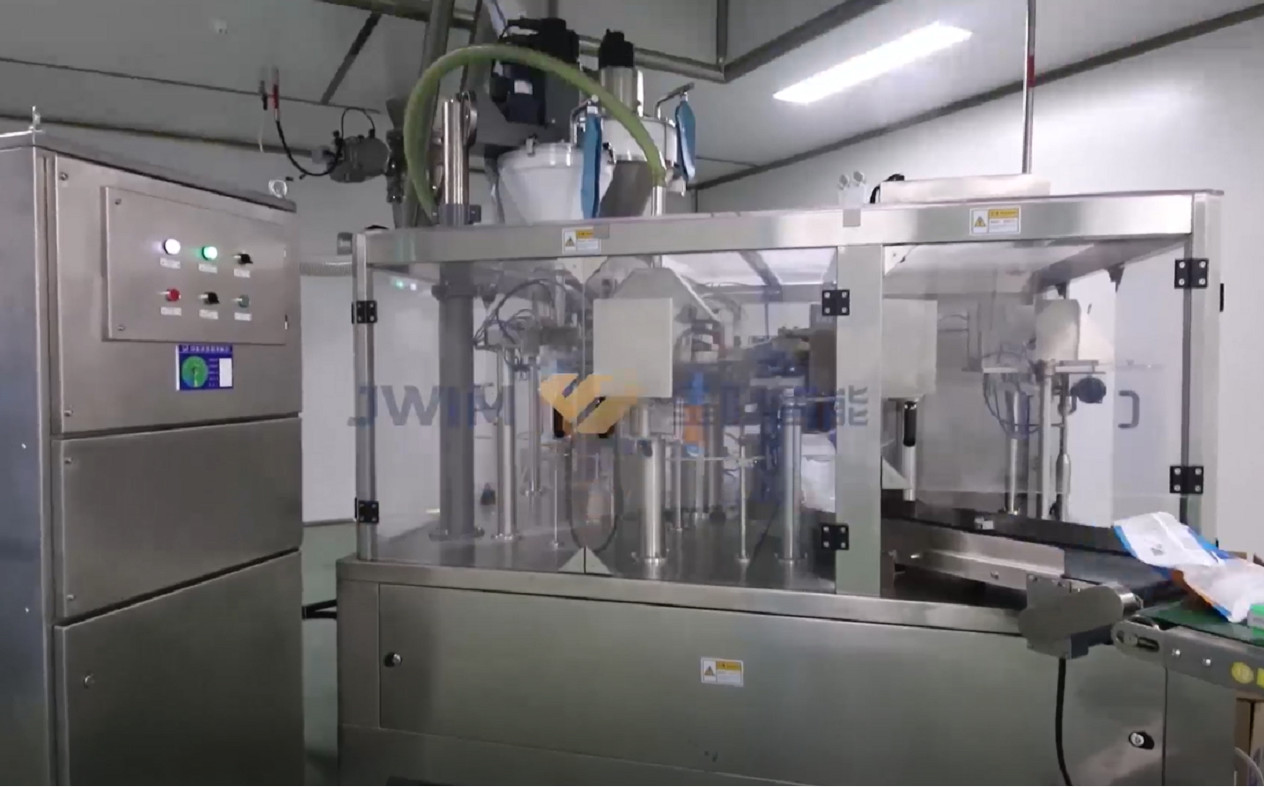

100g-1kg Rotary Pouch Packing Machine For Salt Powder Veterinary Fertilizer Chemicals 4
