Place of Origin:
CHN
Brand Name:
JWIM
Certification:
CE ISO
Model Number:
DGD-210
DGD-210 automatic horizontal bag bag machine
General information:
DGD-210 automatic horizontal bag bagging machine includes bag picking mechanism, bag detection, blowing mechanism, filling mechanism, hot sealing, cold sealing shaping and other institutions. The coordinated operation of each mechanism is accomplished through a high-precision inlet cam splitter, and the position signal is fed back by the encoder on the spindle, realized under the programmable control of the PLC
→ detects the function of → filling with → seal → finished product. The machine has reasonable design, novel appearance, large area arc organic glass door, meet the safety and environmental protection. At the same time, the powder, particles, water agent, suspension agent and other materials can be automatically filled on the machine. Suitable for the packaging and production of various prefabricated bag products.
(The main device without the main device is optional)
Technical parameters:
1 | Production capacity | 40-50 pack / sub * Actual capacity depends on the packaging material |
2 | Suitable for the bag type | W100-200mm;L120-300mm. |
3 | Packaging capacity | The actual ≤ 300g * is determined by the specific weight of the material and the package size |
4 | Fill accuracy | ± 1% (depending on the material condition) |
5 | Power Supply / Power | Three-phase AC380V,50Hz/4.5KW |
6 | Air source pressure | 0.5-0.7MPa. |
7 | Equipment dimensions | 2766 × 2044 × 1486mm (L × W × H) * In height without a filling device |
8 | Dust removal pipe diameter | Φ98mm. |
9 | Complete machine weight | Approximately 2,900 Kg |
Equipment dimension drawing:
Equipment advantages:
1, This equipment is mainly used in the production of various prefabricated bags, beautiful packaging molding; good forming; almost no packaging materials and material waste.
2,'s unique open bag detection function: no open bag, no filling, not hot seal, the bag can be used again, do not waste materials, and save the production cost for users.
3, uses Taiwan original imported cam splitter, making the drive high precision, stable and reliable.

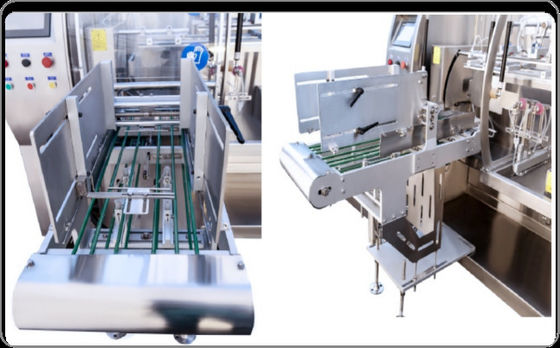

4, large capacity bagging mechanism: when the equipment operation, reduce the bagging frequency, improve the production efficiency.
5, is standard with large area arc organic glass safety door, with beautiful visual and large area. At the same time, the overall arc glass can effectively control the spillover of dust and odor generated in the material packaging, and truly achieve safe and environmental protection.
6, The adopts an integrated control system tailored by French Schneider Electric, with high compatibility, high temperature performance, and even lower energy consumption.
7, intelligent temperature control system: monitor the temperature change, so as to effectively control the thermal sealing mechanism, ensure the reliability of the sealing device, and further improve the beauty of the plastic shaping mechanism, so that the packaging products are easy to use and good.
8, has a small air storage tank to reduce the impact of external pressure fluctuations on the bag and opening. The air supply pressure detection system is also standard.
Main configuration of the equipment:
No ial | First name | Product Card |
1 |
Programmable controller CPU. |
Schneider. Schneider |
2 | Touch-screen |
Schneider. Schneider |
3 | Converconverter |
Schneider. Schneider |
4 |
Servo system |
Schneider. Schneider |
5 | Approach sensor |
Sick. Schker |
6 | Switch on the power supply |
Schneider. Schneider |
7 | Vacuum generator | SMC. |
8 | Heat fan |
SUNON. Completion permit |
9 | Encoder |
OMRON. The Omron |
10 | Button |
Schneider. Schneider |
11 | Circuit breaker |
Schneider. Schneider |
12 | Pressure switch | SMC. |
