Place of Origin:
China
Brand Name:
JWIM
Certification:
CE,ISO
Model Number:
FXZ-6J
7000 BPH Horizontal Automatic Capping Machine Fast Specification Switching
Introduction of Horizontal automatic capping machine

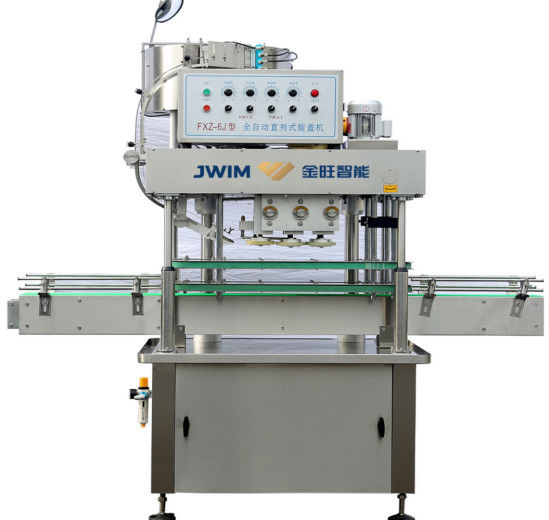

FXZ-6J horizontal automatic capping machine consists of cap sorting barrel and cap falling slot, bottle clamping transmission mechanism and cap rolling wheel transmission mechanism. This machine are applicable to the rubbing of caps of round and flat bottles (Pots) . The structure is simple and easy to adjust. When changing the bottle type, there is no need to change the accessories.
Parameters of horizontal automatic capping machine
| 1 | Capacity | ≤7000 bottles/hour |
| 2 | Suitable bottle | Φ35-95mm H 80-230mm |
| 3 | Suitable cap | Φ25-50mm height 15-40mm |
| 4 | Air pressure | 0.5-0.7 Mpa |
| 5 | Power | ～220V 50Hz/2.4KW |
| 6 | Weight | Around 850Kg |
| 7 | Machine size | 2000×900×1960mm(L×W×H) |
Configurations of horizontal automatic capping machine
| S/N | Name | Brand | Remarks |
| 1 | Frequency converter | Schneider | |
| 2 | Relay | Schneider | |
| 3 | Breaker | Schneider |  |
Features of horizontal automatic capping machine
1 The whole machine adopts Schneider's latest low energy frequency converter, which is safer. 20% lower energy consumption than other brands.
2 One time forming synchronous belt and special capping wheel, lower quick-wear parts consumption.
