Place of Origin:
made in China
Brand Name:
JWIM
Certification:
CE,CO,ISO
Model Number:
DGD-280A（Double Hopper）

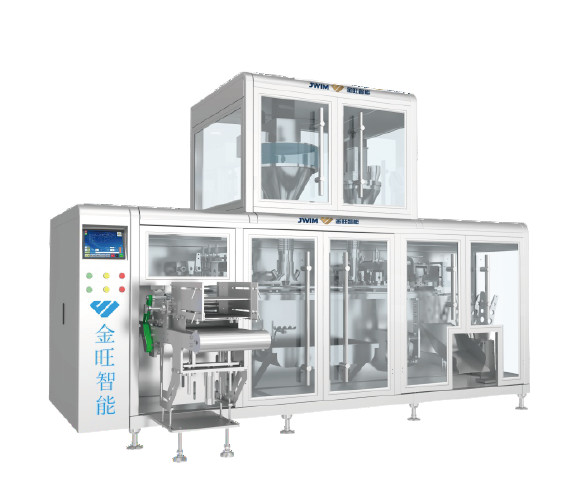

50g-1000g Prefabricated Bag Granule Automatic Pouch Packaging Machine Double Hopper
1. Introduction of Automatic Pouch Packaging Machine
DGD-280A full-automatic horizontal bag feeding bagging machine is our in-line online weighing bagging machine, which can be equipped with an online weighing and filling function and vacuum pumping function. The whole machine includes a bag-taking mechanism, bag opening mechanism, air blowing mechanism, filling mechanism, heat sealing, cold sealing, and shaping mechanism. The coordinated action of each mechanism is completed through the mechanical connecting rod and cam structure. Under the programmable control of PLC, the functions of bag-taking → bag opening → detection → filling 1 → filling 2 (optional weighing) → sealing → finished product are realized.
The machine has a reasonable design, novel appearance, and complete dust removal system, which meets the production requirements of safety and environmental protection. At the same time, by changing the filler, the automatic filling of powder, particle, water agent, suspension agent, and other materials can be realized on the machine. It is applicable to the packaging production of all kinds of prefabricated bag products.
2. Parameters of DGD-280A (Double Hopper) Pouch Packing Machine
| Productive Power. | 16-35 bags / min |
| Applicable Bag Size | W120-280mm L180-380mm |
| Packaging Capacity | ≤1000g |
| Filling Precision | ±1g(100g)；≤±2g(200-300g)；≤±3g(300-500g)；≤±3g(500-1000g) |
| Air Pressure | 0.5-0.7MPA 500L/min |
| Power | AC380V 50Hz/5.5KW |
| Equipment Size | 3665×2420×2800mm(L×W×H) |
3. Features of Prefabricated Bag Packing Machine
a) The equipment is suitable for the production of all kinds of prefabricated bags, with beautiful packaging and molding.
b) High capacity: linear structure, easy maintenance, high speed, 30% faster than the capacity of the rotary bagging machine.
c) Environmentally friendly: a material collection tank is added under the blanking device of the host machine (convenient for manual cleaning and material recycling).
d) High precision: rough filling and filling while weighing are adopted to ensure the high precision of products. (Optional functional module)
About US
Jiangsu Jinwang Intelligent Sci-Tech Co., Ltd (JWIM) was established in May 2005. JWIM is a professional manufacturer engaged in the agricultural and animal husbandry intelligent industry. We are a high-tech enterprise integrated with R&D, manufacturing, marketing, and service.
Our company focuses on the agriculture and animal husbandry industry, and so far it has obtained more than 100 patent certificates, among which are 8 invention patents and 8 utility model patents of JWIM intellectual formulation workshop. Our products have been exported to more than 50 countries all over the world. We have provided professional services to more than 3,000 agricultural and animal husbandry customers.
