Place of Origin:
made in China
Brand Name:
Jinwang
Certification:
CE,CO,ISO
Model Number:
CCG1000-16TH
50ml-1000ml High Speed Liquid Pesticide Filling Machine
Main Technical Parameters
| 1 | Filling Capacity | 1000mL:4000 bottles/hour *Filling water, (capacity is related to different products) |
| 2 | Applicable Bottle Size | Round bottle:Φ40－95mm H 80－250mm |
| 3 | Filling range, filling nozzles | 50-1000mL; 20 nozzles |
| 4 | Accuracy | ±1g(100mL) ±2g(1000mL)(*Filling water) |
| 5 | Height of Feeding Port | 2300mm |
| 6 | Feeding Port Diameter | Dn40 |
| 7 | Nozzle Diameter | Φ18mm |
| 8 | Minimum Bottle Opening | ≥Φ22mm |
| 9 | Air Pressure | 0.6-0.8MPa |
| 10 | Power Source | ～380V/60Hz/3.55KW |
| 11 | Dimension | 2835×1490×2480mm(L×W×H) |
| 12 | Weight | around1200Kg |
| 13 | Bottle Feeding Direction | From left to right |
Overview:

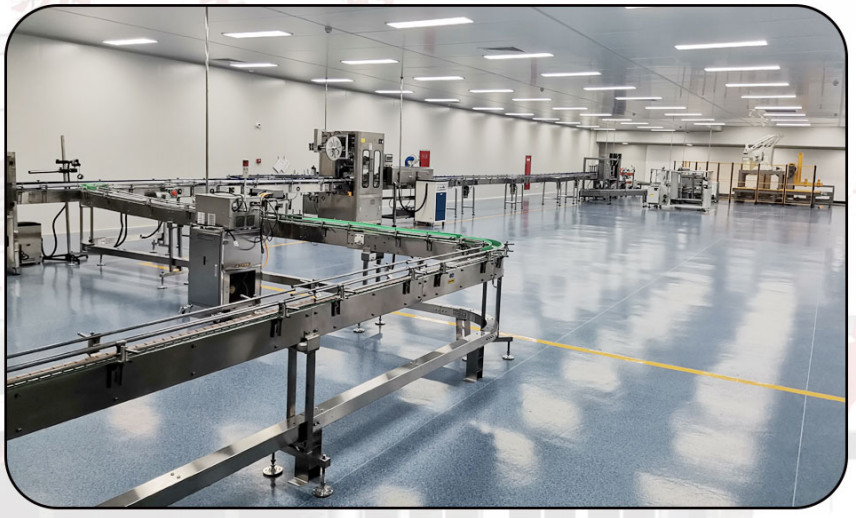

The production line is designed and manufactured in accordance with the latest veterinary drug GMP standards and is suitable for the automated production of various 50-1000ml bottled oral liquids. Packaging process: automatic bottle unscramble, automatic filling, automatic capping, automatic check weighing, sealing, coding, aluminum foil sealing detection, automatic labeling, two-dimensional code collection and association, automatic box opening, automatic bottle loading into the boxes, and automatic carton sealing.
Jiangsu Jinwang Intelligent Sci-tech Co., Ltd, founded in 2005, is headquartered in Changzhou, Jiangsu. JINWANG is a pioneer in Turnkey Agrochemical Solutions to various formulation forms for customers with an aim of providing sustainable and cost-effective manufacturing in a dynamic market. We have been providing packaging equipment to over 3000 agrochemicals factories worldwide over nearly 2 decades. We can provide pesticide preparation plant design, equipment selection, manufacturing, and inspection before shipment and a full range of professional services to customers at home and abroad.
About Us
Our scientific approach towards designing and executing Agrochemical Facilities creates optimized and flexible manufacturing facilities that cater to all future requirements of our customers. We are a family of experts who have a common vision of providing the right solutions to our clients who produce quality pesticides, thereby improving millions of lives across the world.
Service
1. Personalization
• 2. Assistance
• 3. Remote Support
In light of the risks surrounding Covid-19, at Jinwang we have developed remote support procedures to keep our customers’ orders and production progressing.
We are completing machine FAT’s and demo’s via video conference call and undertaking remote installations to get new machines up and running ASAP.
Documents can be screen-shared, and our teams can connect with your teams to provide the relevant training
Why Choose Us?
Why should choose to work with us is not because that how good we are boasting ourselves or how cheap our product seems to be.
It is because jinwang offer can bridge the needs, and our machines can address your pain and our product is able to achieve your desired result and performance.
It is because our market positioning matches yours and our commitment resonates with you.
It is because our competence to work out a proposal that springs a “before VS after” clears your worries.
It is because our market performance and customer referral allow for your joined trust. So I am sure price itself cannot be the only factor that stops you from exploring us who might surprise you in a good way.
Send your inquiry directly to us
