2g-200g Sachet Preformed Pouch Filling Sealing Machine Automatic

Product Details:
Place of Origin: made in China
Brand Name: Jinwang
Certification: CE,CO,ISO
Model Number: DGD-180B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden cases
Delivery Time: 15-90 work days
Payment Terms: L/C, T/T
Supply Ability: 1 Osets per month
Specifications Product Description Request A Quote
Specifications
Specifications
Name: Automatic Horizontal Sachet Filling Sealing Machine
Model: DGD-180B
Packing Speed: 2100-3300 Bags Per Hour
Packing Volume: 2g-200g
Filling Err: ±1g
Air Source: 0.6-0.8 Mpa Stable And Clean Air
Air Consumption: 500L/min
Power Source: 380V 50Hz
Power: 4.5KW
Weight: 1900kg
External Dimension: 2766×2045×2340 (L×W×H)mm
High Light:

Sachet Preformed Pouch Filling Sealing Machine

,

2g-200g Preformed Pouch Filling Sealing Machine

,

sachet filling and sealing machine

Product Description

2g-200g Automatic Preformed Pouch Packaging Machine Horizontal Sachet Filling Sealing Machine

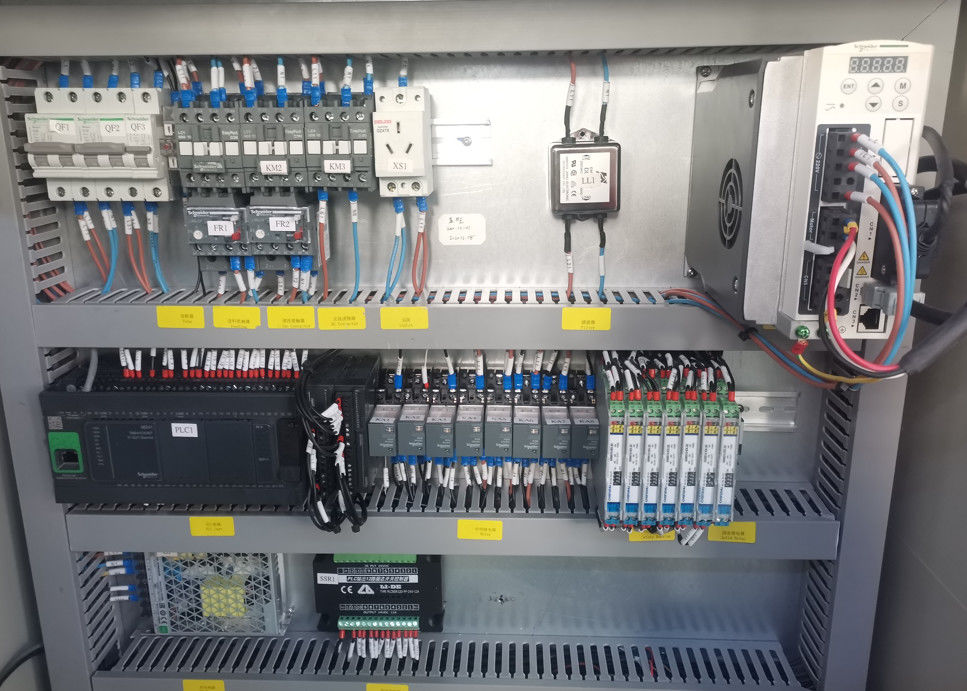

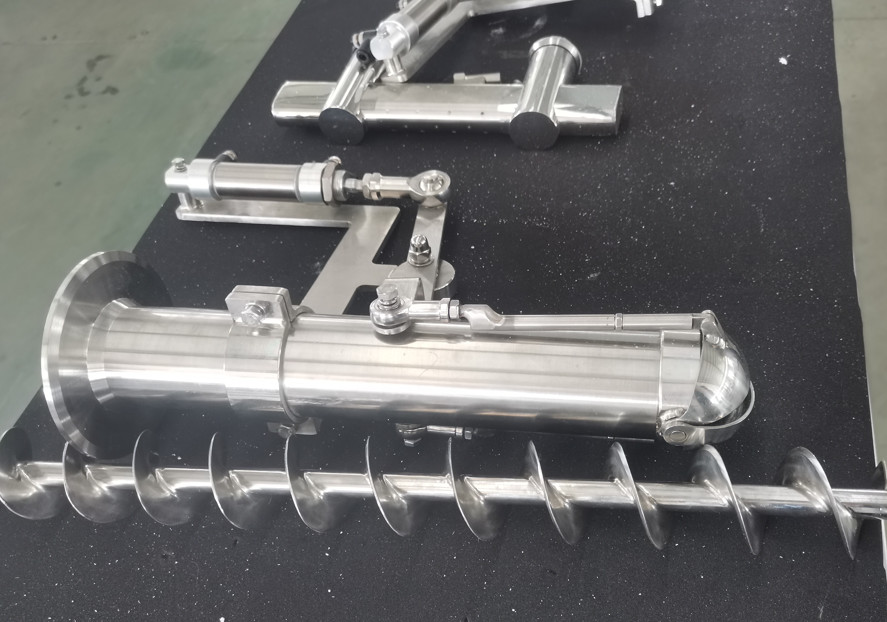

DGD-180B Automatic Horizontal Preformed Bag Packaging Machine is independently developed by our company. With more than ten years of accumulation and precipitation by industry customers, it has created a stable and reliable intelligent packaging equipment that meets GMP standards. Using the integrated programmable control system, realize the process automation of bag taking→ bag opening→ inspection→ filling, sealing, and finished products are realized.  The machine has a reasonable design and a novel appearance. The automatic filling of various materials such as powder, premix, and granules can be packed on this machine by replacing the filler. Integral 304 stainless steel frame with glass door cover, good sealing performance.



2g-200g Sachet Preformed Pouch Filling Sealing Machine Automatic 0



Technical Parameters

1 Production Capacity 35- 55bag/min *packing speed depends on packing material
2 Applicable Bag W80-180mm L110-250mm
3 Packing Volume ≤200g *packing volume depends on density and packing size
4

Filling Precision

(with loadcell)

±1g (100g) *depends on the material

5 Power 4.5KW
5 Power Source 3P/AC380V/50Hz
6 Duster Pipe Φ98mm
7 Air Pressure 0.6-0.8MPa
8 External Dimension 2766×2045×2340mm(L×W×H)
9 Weight 1900Kg




Process Flowchart

2g-200g Sachet Preformed Pouch Filling Sealing Machine Automatic 1



2g-200g Sachet Preformed Pouch Filling Sealing Machine Automatic 2
