1 Kg 5 Kg Pouch Packing Machine Automatic Vertical Packing Machine

Product Details:
Place of Origin: made in China
Brand Name: Jinwang
Certification: CE,CO,ISO
Model Number: JW-VP73
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden cases
Delivery Time: 15-90 work days
Payment Terms: L/C, T/T
Supply Ability: 1 Osets per month
Specifications Product Description Request A Quote
Specifications
Specifications
Name: 1-5KG Vertical Pouch Packing Machine
Model: JW-VP73
Capacity: 600-1800 Bags Per Hour
Bag Size: W140-350mm, L120-450mm
Packing Range: ≤5000g
Filling Err: ±1g
Air Source: 0.6-0.8 Mpa Stable And Clean Air
Air Consumption: 840L/min
Power Source: ~380V 50Hz
Power: 6KW
Weight: 2500kg
External Dimension: 3350×2500×2800 (L×W×H)mm
High Light:

1 kg pouch packing machine Vertical

,

5 kg pouch packing machine Vertical

,

Vertical Pouch Packing Machine

Product Description

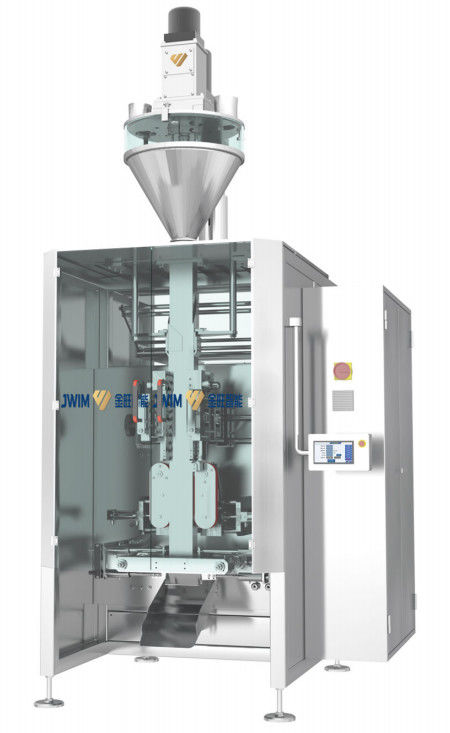

1-5KG Vertical Pouch Packing Machine

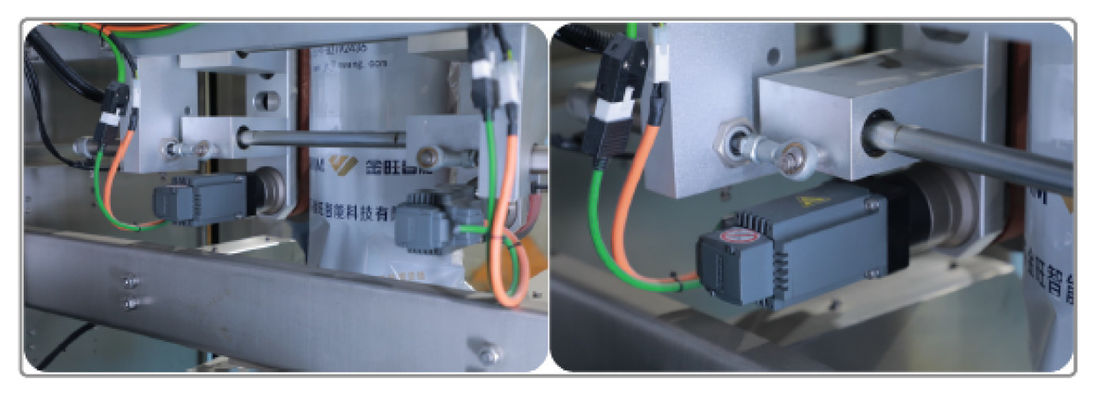

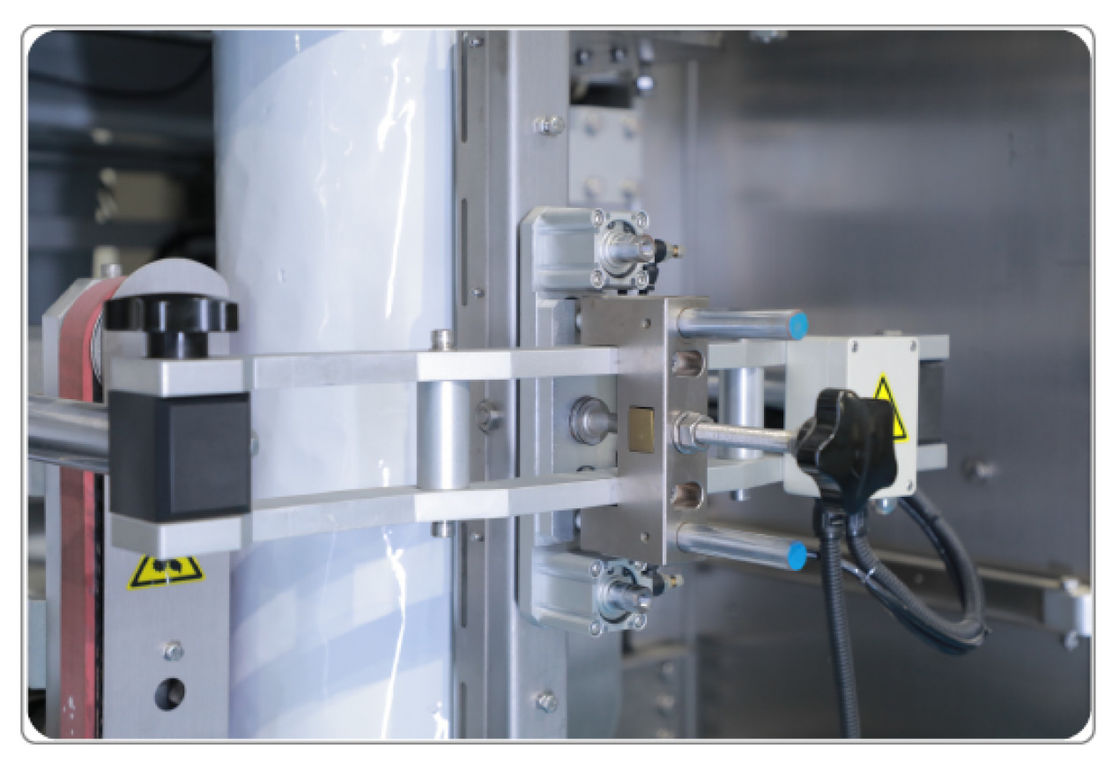

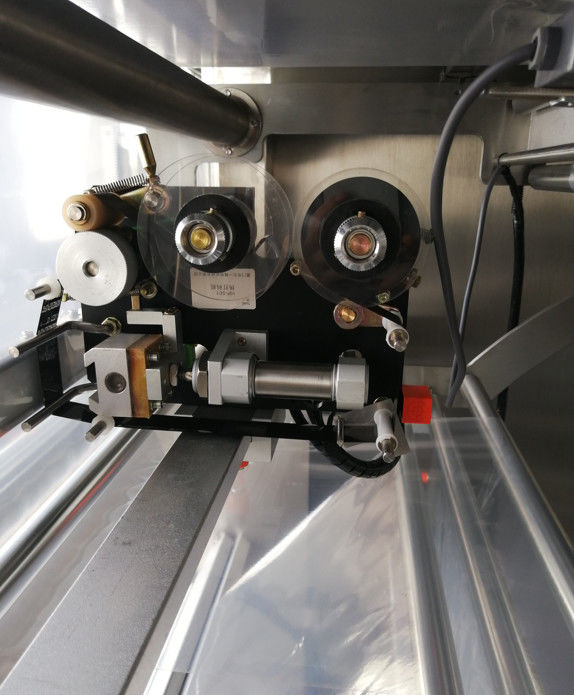

The JW-VP73 vertical packaging machine adopts Siemens PLC's full computer control system, man-machine interface, and large touch screen for easy operation. Adopt servo film transport system, horizontal sealing, vertical sealing, pneumatic control, accurate positioning, excellent performance of the whole machine, perfect automatic alarm protection function, reducing loss to a minimum, the high-speed automatic metering device can automatically complete the weighing, The whole process of feeding, bag making, filling, date printing, counting, and finished product output.



Technical Parameters

Items Content
Capacity 600-1800bag/hour (it will be affected by film material, packing weight and bag length, and so on)
Accuracy

*≤±1%, depending on the measuring equipment & materials

Bag Size Length 120-450mm
Width 140-350mm
Film Pulling Belt Double-belt pulling film
Bag type Pillow Bag, punching bag
Reel film width Max. 730mm; Inner roller hole: φ75mm
Thickness of film 0.04-0.13mm
Air consumption 0.8Mpa 0.3cmb/min
Main power/voltage 6KW/ 380V 50Hz
Dimension 3350*2250*2800mm
Net Weight 2500 KG
Packing Volume 1-5kg

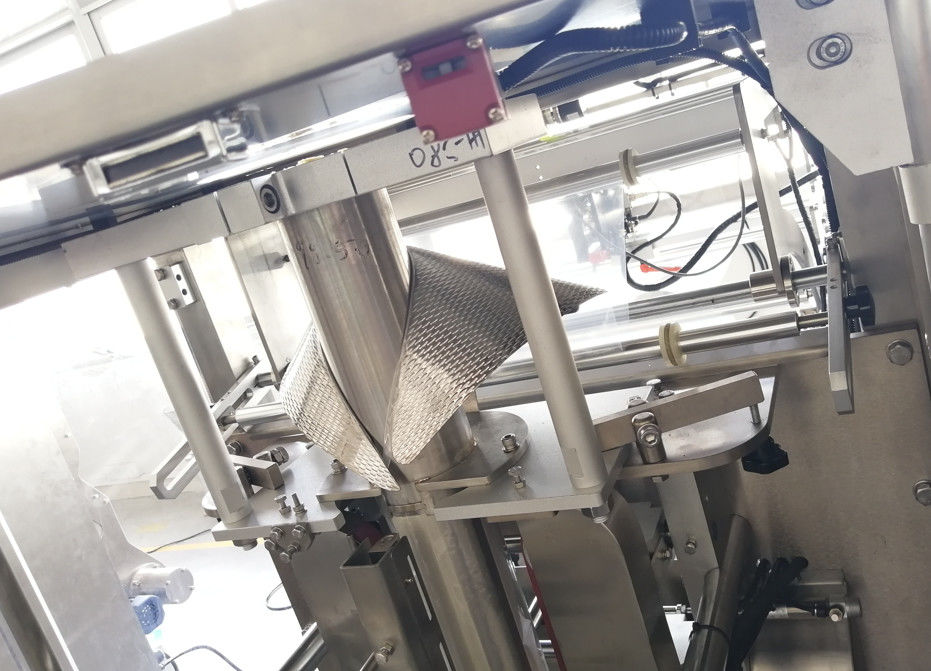

1 Kg 5 Kg Pouch Packing Machine Automatic Vertical Packing Machine 0



1 Kg 5 Kg Pouch Packing Machine Automatic Vertical Packing Machine 1
