3-7cartons Min Auto Carton Packing Machine ISO9001

Product Details:
Place of Origin: Changzhou, China
Brand Name: JWIM
Certification: CE, ISO9001
Model Number: KZJ-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden cases
Delivery Time: 15-90 work days
Payment Terms: L/C, T/T
Supply Ability: 1 Osets per month
Specifications Product Description Request A Quote
Specifications
Specifications
Machine: KZJ-1 Automatic Carton Packing Machine With 3-7 Cartons/minute
Material: Carbon Steel & SUS304
Capacity: 3-7 Cartons/minute
Applicable Carton Size: L: 250-500mm W: 200-400mm H: 80-400mm
Applicable Bottle Size: Φ40-90mm H: 80-260mm
Control System: France Schneider
Servo System: France Schneider
High Light:

7cartons Min Auto Carton Packing Machine

,

ISO9001 carton packaging machine

,

carton box wrapping machine

Product Description

KZJ-1 Automatic Carton Packing Machine with 3-7 cartons/minute



Introduction:

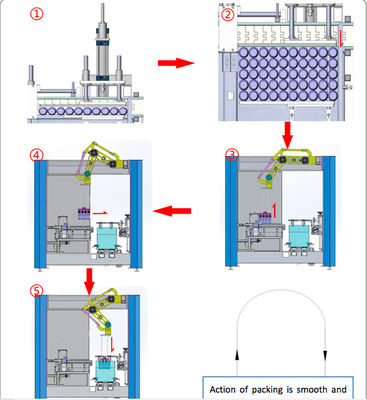

KZJ-1 Automatic Carton Packing Machine is an improved packing machine. It is equipped with motion controller + mechanical arm to make the progress smoothly. The capacity is 30% increased than normal machine. This machine is suitable for automatic bottle packing with finished carton. It makes automatic secondary packaging to reality and can be used for automatic bottle production in food, daily chemical, medicine, agrochemical industry.



Features:

1. Cost Saving: Manual saving and increasing the production efficiency. It can replace 2-3 packing workers.

2. Wide Applied Range: It is suitable for packing materials such as plastic, glass, aluminum bottles and box.

3. Double servo drive mechanical catcher+imported brand motion controller to make the progress smoothly. The capacity is 30% increased than normal machine.

4. Quick Change-over: You can change the bottle size by changing different packing mold (bottle catcher, sucking disc, holder). You need to provide bottles, caps and cartons for us to make the packing mold.

5. Safety door switch added. The machine will be stop when the door opens to make sure the safety of workers and machine.

6. Equipped with imported system+ Schneider electrical components. Higher capacity and machine is more stable.



Techncial Parameters:

Model KZJ-1
Packing Speed 3-7 cartons/minutes (board excluded)
Applicable Carton Size L: 250-500mm W: 200-400mm H: 80-400mm
Applicable Bottle Size Φ40-90mm H: 80-260mm
Air Pressure 0.6-0.8MPA
Power Source 380V, 50HZ, 5.5KW
Dimension 2000×2100×2120mm (L×W×H)
Weight 1800Kg



Allocations:

No. Name Brand Picture
1 Counting sensor Sick 司克
2 Touch screen Schneider 施耐德PLC1触摸屏 (2)
3 Solenoid Valve FTEC 亚德客电磁阀 (无底)
4 Circuit Breaker Schneider 施耐德空开3P
5 Frequency converter Schneider 施耐德变频器2
6 Alarm Light Schneider 施耐德警示灯
7 Button Schneider 施耐德开关2
8 Proximity switch LEUZE 奥托尼克斯接近开关
9 Press switch SMC SMC压力开关(1)
10 Power Switch Schneider 施耐德开关电源 (2)
11 Cylinder FTEC 亚德客气缸
