100ml Liquid Automatic Pouch Filling And Sealing Machine packing machine

Product Details:
Place of Origin: made in China
Brand Name: Jinwang
Certification: CE,CO,ISO
Model Number: DXD-130D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: wooden cases
Delivery Time: 15-90 work days
Payment Terms: L/C, T/T
Supply Ability: 1 set per month
Specifications Product Description Request A Quote
Productive Power: 40-60bags / Min
Applicable Bag Size: Single Bag: 70 × 100mm (minimum); 140× 180mm Max
Applicable Bag Type: Single Bag
Packaging Capacity: ≤100ml
Roll Film Size: Inner Diameter: Φ 70-80mm Outer Diameter: ≤ Φ 500mm
Filling Precision: ±1%
Air Pressure: 840L/min
Power: AC380V 50Hz/5KW
Equipment Size: 2750×1000×1510mm(L×W×H)
High Light:

automatic liquid pouch filling and sealing machine


liquid pouch filling and sealing machine


automatic bag filling and sealing machine

Product Description

≤100ml/5kw/Roll film/Single Bag/Automatic Pouch Packaging Machine(DXD-130D)



1. Description of the Automatic Pouch Packaging Machine


  DXD-130D full-automatic horizontal bagging machine consists of the motor film release, bag forming, bag bottom sealing, vertical sealing, servo bag pulling, shearing, bag opening and filling, bag transfer, bag top sealing, and other mechanisms. Each cam on the main shaft is driven by the motor to complete the coordinated action of each mechanism, and the position signal is fed back by the encoder on the main shaft. Under the programmable control of PLC, the function of film roll → bag forming → bag making → filling → sealing → finished product conveying is realized. Finally, it is packed or boxed manually.
  The machine has a reasonable design and novel appearance. It adopts standard stripe sealing and changes the filler. It can realize the automatic filling of powder, particle, suspending agent, emulsion, water agent, and other materials on the machine. The whole machine is made of SUS304 stainless steel, which has a good anti-corrosion effect on highly corrosive materials. Plexiglass cover prevents dust leakage, which is more environmentally friendly and pollution-free.

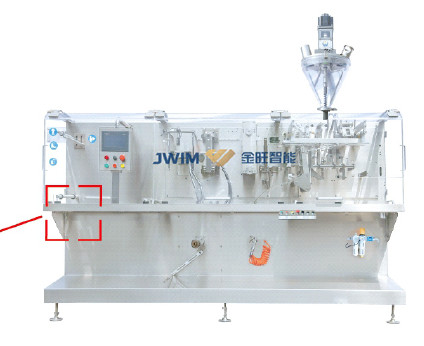

100ml Liquid Automatic Pouch Filling And Sealing Machine  packing machine 0


2. Parameters of the Automatic Pouch Packaging Machine


Productive Power 40-60 bags / min * actual capacity depends on packaging materials
Applicable Bag Size Single bag: 70 × 100mm (minimum); 140× 180mm Max
Applicable Bag Type Single Bag
Packaging Capacity ≤100ml
Roll Film Size Inner Diameter: Φ 70-80mm Outer Diameter: ≤ Φ 500mm
Filling Precision ±1%
Air Pressure 840L/min
Power AC380V 50Hz/5KW
Equipment Size 2750×1000×1510mm(L×W×H)


3. Features of the Automatic Pouch Packaging Machine


a. A  simple and efficient operating system and integrated intelligent system make your operation easier and complete with one click.

b. Temperature control integrated module: real-time monitoring of temperature changes, the operation is clear at a glance. So as to effectively control the heat sealing mechanism, ensure the sealing reliability and make the packaged products easy to use and good-looking.

c. Servo bag-pulling system, specification replacement, one key input, less packaging material loss.

d. Weighing feedback system: the measurement adjustment tentacle is available to reduce the waste of materials (This function is optional)

e. Schneider Electric System (PLC programmable controller, man-machine interface, servo system, frequency converter, switching power supply, etc.) is mainly configured for the whole machine. Safer, more reliable, more efficient, and environmentally-friendly (bring you more economic energy loss).

f. Multiple safety protection (Shenshi color code detection, Japan SMC vacuum generator, air source processor with air pressure detection, and power phase sequence protector) to ensure the stability and reliability of equipment operation to the greatest extent.

g. In order to prevent sticking, bag stacking, material sticking, and other phenomena of hot block parts on the equipment after long-term use, special spraying shall be adopted on the surfaces of the bottom seal, vertical seal, top seal, and other parts to avoid the above situations.

h. Jinwang packaging is rooted in the agrochemical industry with more than ten years of experience. The whole machine frame is made of SUS304 stainless steel, with excellent corrosion resistance; The cover of organic glass can prevent dust leakage and make it more environmentally friendly and pollution-free.

i. All connecting rod parts of the machine are made of SUS304 stainless steel casting, which has strong firmness and no deformation. Other manufacturers generally use welded connecting rods, which are easy to break and deform.

j. On the equipment, we have reserved connectors for powder, water, viscosity, granule, and other filling devices. At the same time, the software is also reserved for design. When users change the filling device, they only need to install the connector and use the function in the touch screen.

k. The central control box is installed in the middle of the equipment, which is beautiful, generous, and convenient for operation and maintenance. Workers do not need to run back and forth during operation, which can effectively improve work efficiency. In addition, it is equipped with an independent operation button box, which has the functions of dose fine-tuning, debugging, and inching, and the operation is more convenient.

l. When a roll of film is used up, there is no need to pull out the remaining roll of film on the equipment. Just bond it with the new role of film on this device to continue to start up and reduce the loss of packaging materials( This function is optional)

m. The independent tearing mechanism is adopted, and the cylinder drives the cutter to achieve the tearing effect, which is easy to tear and beautiful. The effect of the use is far beyond the tearing of the hot block, and a debris collection device is set on the tearing device(This function is optional)

100ml Liquid Automatic Pouch Filling And Sealing Machine  packing machine 1
