≤ 100ml (single bag); ≤50 × 2 = 100 ml (double bag)/5kw/Roll film/Automatic Pouch Packaging Machine(DXD-180F)

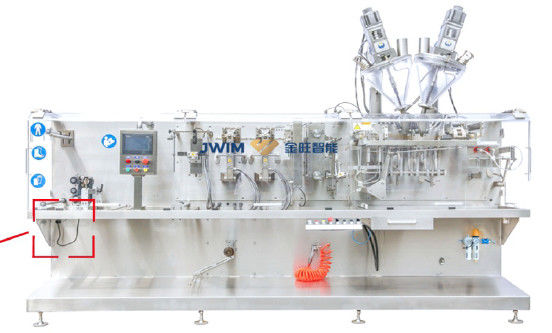

1.Description of the Automatic Pouch Packaging Machine
DDX-180F type automatic horizontal bag loader consists of motor film release, bag forming, bag bottom sealing, vertical seal, servo bag pulling, cutting, bag opening inspection, bag opening filling, bag transfer, bag dust removal, bag top sealing and other mechanisms. The coordination action of each mechanism is completed by motor driving the cams on the spindle, and the position signal is fed back by encoder on the spindle, under the programmable control of PLC, The function of film roll, bag forming, bag making, bag opening inspection, filling, bag dust removal, sealing and finished product transportation is realized. Finally, the box is packed or packed manually.
The machine is designed reasonably and has a new appearance. It can be used to seal with standard stripes. The automatic filling of powder, particles, suspension, emulsion, water agent and other materials can be realized by changing the filling device. The whole machine is made of SUS304 stainless steel, which has good anti-corrosion effect on the materials with strong corrosiveness. Plexiglass cover prevents dust leakage, which is more environmentally friendly and pollution-free.
2.Parameters of the Automatic Pouch Packaging Machine
| Productive Power | 40-60 bags / min (single bag)( 40-60) x2 = 80-120 bags / min (double bag) |
| Applicable Bag Size | Single bag: 70 × 100mm (minimum); one hundred and eighty × 220mm (max.) Duplex bag: (70 + 70) × 100mm (min.) (90+90) × 160mm (max.) |
| Applicable Bag Type | Single Bag/Double Bag |
| Packaging Capacity | Routine: ≤ 100ml (single bag); ≤50 × 2 = 100 ml (double bag) |
| Roll Film Size | Inner Diameter: Φ 70-80mm Outer Diameter: ≤ Φ 500mm |
| Filling Precision | ±1% |
| Air Pressure | 840L/min |
| Power | AC380V 50Hz/6KW |
| Equipment Size | 4175×1045×1590mm(L×W×H) |
3.Features of the Automatic Pouch Packaging Machine
(a)Bag opening detection: automatic detection function, mechanical bag opening device to ensure 100% bag opening. If the bag is not opened or the bag is incomplete, no feeding, no heat sealing, no waste of materials, and save production costs for users( This function is optional)
(b)Bag mouth dust removal device: bag wiping dust removal function, motor driven to remove dust to ensure the success rate of sealing( This function is optional)
(c)Unique double scissors device: the full-automatic horizontal bagging machine adopts the form of double scissors, which improves the production capacity. For single bag filling, the production capacity is doubled on the original basis( This function is optional)
(d)The static elimination rod eliminates static electricity at the roll film to ensure more stable bag opening( This function is optional)
(e)Servo bag pulling system: specification replacement, one key input, less packaging material loss( This function is optional)
(f)In order to prevent sticking, bag sticking, material sticking and other phenomena of hot block parts on the equipment after long-term use, special spraying shall be adopted on the surfaces of bottom seal, vertical seal, middle seal, top seal and other parts to avoid the above situations.
(g)Weighing feedback system: measurement adjustment tentacles are available to reduce material waste (this function is optional).
(h)The versatility of the filling device: the equipment has reserved the connectors for powder, water, viscosity, granule and other filling devices, and the software is also reserved. Users can only install the connectors when changing the filling device, and can be used in the touch screen.
(i)The central control box is installed in the middle of the equipment, which is beautiful, generous and convenient for operation and maintenance. Workers do not need to run back and forth during operation, which can effectively improve work efficiency. In addition, it is equipped with an independent operation button box, which has the functions of dose fine-tuning, debugging and inching, and the operation is more convenient.
(j)Automatic greasing machine: pulsarlube-m automatic greasing machine imported from the United States is adopted to avoid the trouble of untimely manual maintenance cycle and prolong the service life of the mechanism( This function is optional)
(k)Jinwang packaging is rooted in the agrochemical industry with more than ten years of experience. The whole machine is made of SUS304 stainless steel with excellent corrosion resistance; Plexiglass cover prevents dust leakage, which is more environmentally friendly and pollution-free.
(l)All connecting rod parts of the machine are made of SUS304 stainless steel casting, which has strong firmness and no deformation. Other manufacturers generally use welded connecting rods, which are easy to break and deform.
(n)When a roll of film is used up, there is no need to pull out the remaining roll of film on the equipment. Just bond it with the new roll of film on this device to continue to start up and reduce the loss of packaging materials( This function is optional)
(o)An independent tearing mechanism is adopted, and the air cylinder drives the cutter to move back and forth to achieve the tearing effect. It is easy to tear and beautiful. Its use effect is far beyond the hot block tearing, and a fragment collection device is set on the tearing device. The pipeline collection chip collecting bucket with Diamond Tear mouth is convenient and fast (this function is optional)
(p)The hob processed with special steel is selected, and the Italian kangmaosheng rodless cylinder is used to drive the rolling mechanism to move back and forth, so as to achieve the virtual cutting effect, easy to tear and beautiful, and its use effect is far beyond the thermal virtual cutting.
(q)Temperature control integrated module: real-time monitoring of temperature changes, the operation is clear at a glance. So as to effectively control the heat sealing mechanism, ensure the sealing reliability and make the packaged products easy to use and good-looking.
(r)Multiple safety protection (Shenshi color code detection, Japan SMC vacuum generator, air source processor with air pressure detection and power phase sequence protector) to ensure the stability and reliability of equipment operation to the greatest extent.
(s)Schneider Electric System (PLC programmable controller, man-machine interface, servo system, frequency converter, switching power supply, etc.) is mainly configured for the whole machine. Safer, more reliable, more efficient and environmentally friendly (bring you more economic energy loss).
(t)Safety door switch: automatic shutdown protection when opening the door during production, which can effectively prevent accidents( This function is optional)
