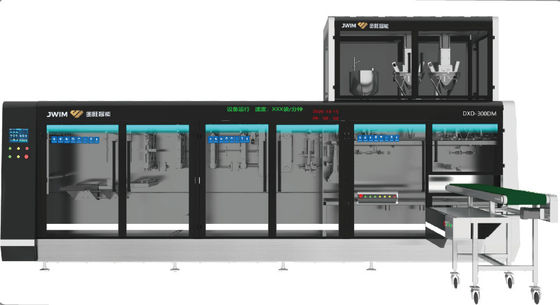

90Bags Full Automatic Pouch Filling And Sealing Machine Triple Bag Sachet Packing Machine
1. Description of the Automatic Pouch Packing Machine
DXD-300DM full-automatic horizontal bagging machine consists of motor film releasing, bag forming, bag bottom sealing, vertical sealing, servo bag pulling, shearing, bag opening inspection, bag opening and filling, bag transfer, bag mouth dust removal, bag top sealing, and other mechanisms. The coordinated action of each mechanism is completed by the cam on the main shaft driven by the motor, and the position signal is fed back by the encoder on the main shaft under the programmable control of PLC, The functions of film roll → bag forming → bag making → bag opening inspection → filling → bag touching and dust removal → sealing → finished product transportation are realized. Finally, it is packed or boxed manually. It can be applied to triple bag filling and improve production capacity. The machine has a reasonable design and novel appearance. It adopts standard stripe sealing and changes the filler. It can realize the automatic filling of powder, particle, suspending agent, emulsion, water agent, and other materials on the machine. The frame of the whole machine is made of 304 stainless steel, which has a good anti-corrosion effect on highly corrosive materials. Toughened glass cover prevents dust leakage, which is more environmentally friendly and pollution-free.
2. Parameters of the Automatic Pouch Packing Machine
| Productive Power | 45 bags / min (single bag) 45x2 bags / min (double bag) 30x3 bags (triple bag) |
| Applicable Bag Size | Single bag: 85 × 100mm (min) 180 × 220mm (max.) Duplex bag: (60 + 60) × 100mm (min) (90 + 90) × 220mm (max.) Triple bag: minimum (70 + 70 + 70) × 90mm; Maximum (100 + 100 + 100) × 220mm |
| Packaging Capacity | 100ml × 3 (max) |
| Roll Film Size | Inner Diameter: Φ 70-80mm Outer Diameter: ≤ Φ 500mm |
| Filling Precision | ±1% |
| Air Pressure | 840L/min |
| Power | AC380V 50Hz/6KW |
| Equipment Size | 5465×1040×2423mm(L×W×H) |
3. Features of the Automatic Pouch Packing Machine
a) The whole line operation status (data) is presented in real-time to understand the production capacity and equipment operation status in real-time.
b) Digitization: the operation status and data of the whole line are presented in real-time, which is clear at a glance, and the production data is displayed in real-time and dynamically, which is convenient for production management. The equipment is equipped with three color light bands, green operation, blue standby, and red shutdown alarm.
c) Optimization of bag opening system: optimize the bag opening system by adding an electrostatic removal mechanism to neutralize the charge on the object by eliminating the airflow of a large number of positive and negative charges generated by the electrostatic elimination fan, so as to achieve the purpose of eliminating static electricity and reduce the unsuccessful bag opening caused by static electricity.
d) All connecting rod parts of the machine are made of SUS304 stainless steel casting, which has strong firmness and no deformation. Other manufacturers generally use welded connecting rods, which are easy to break and deform.
e) Upgrade the servo bag-pulling system: the front support plate can be opened to make the film threading operation and maintenance more convenient. The precision of bag-pulling is more stable and accurate; Specification replacement, one key input, less packaging material loss.s.
f) The vertical seal and middle seal ironing block parts adopt a quick handle adjustment structure, which is simple to operate and adjust and saves adjustment time.
g) The versatility of the filling device: the equipment has reserved the connectors for powder, water, viscosity, granule, and other filling devices, and the software is also reserved. Users can only install the connectors when changing the filling device and can be used in the touch screen.
h) When a roll of film is used up, there is no need to pull out the remaining roll of film on the equipment. Just bond it with the new role of film on this device to continue to start up and reduce the loss of packaging materials (This function is optional)
i) An independent tearing mechanism is adopted, and the air cylinder drives the cutter to move back and forth to achieve the tearing effect. It is easy to tear and beautiful. Its use effect is far beyond the hot block tearing, and a fragment collection device is set on the tearing device( This function is optional)
j) Multiple safety protection (Shenshi color code detection, Japanese SMC vacuum generator, air source processor with air pressure detection, and power phase sequence protector) to ensure the stability and reliability of equipment operation to the greatest extent.
k) Threshold alarm: the safety door switch is added to the equipment to open and stop the door during production(This function is optional)
l) Temperature control integrated module: real-time monitoring of temperature changes, the operation is clear at a glance. So as to effectively control the heat sealing mechanism, ensure the sealing reliability and make the packaged products easy to use and good-looking.
m) Schneider Electric System (PLC programmable controller, man-machine interface, servo system, frequency converter, switching power supply, etc.) is mainly configured for the whole machine. Safer, more reliable, more efficient, and environmentally friendly (bring you more economic energy loss).
