Place of Origin:
made in China
Brand Name:
JWIM
Certification:
CE,CO,ISO
Model Number:
CZ-4Y

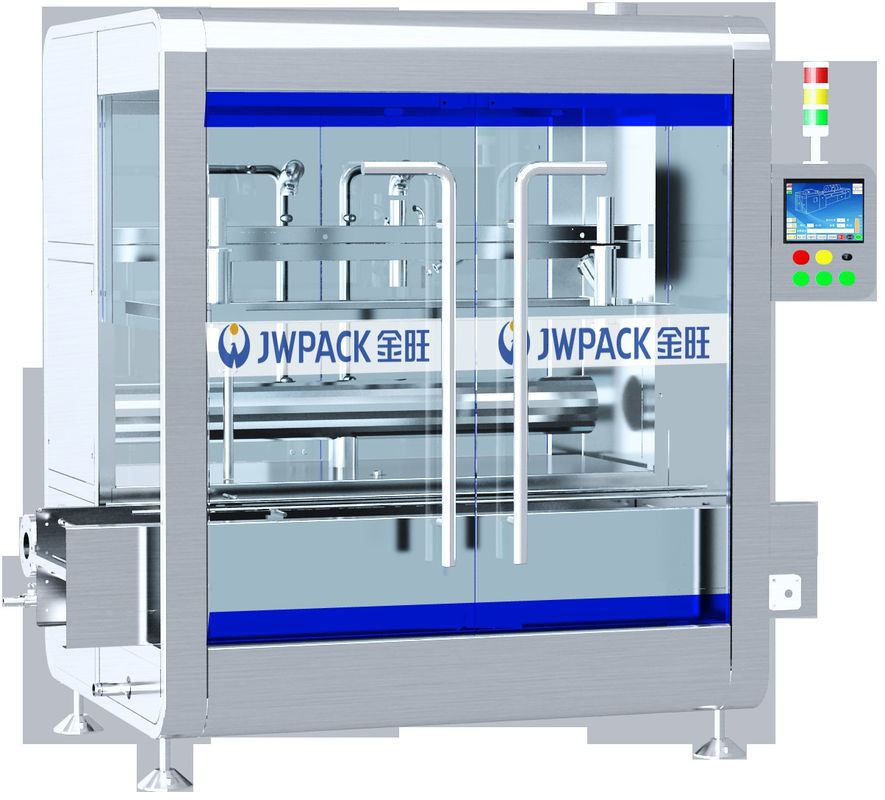

Fully Automatic Weighing-Type Filling Machine Linear Scale Platform Fast, Slow Filling Mechanism Weighing And Filling
CZ-4Y fully automatic weighing-type filling machine
General information:
CZ-4Y automatic weighing filling machine consists of linear scale platform (with roller path), chain rod inlet and exit mechanism, fast, slow filling mechanism, material cylinder, weighing control instrument and programmable control unit. The liquid filling scale can meet the needs of automatic weighing and filling of multiple liquids.
Technical parameters:
| 1 | Fill speed | ≤ 350 barrels / h (18Kg) (water as medium) |
| 2 | Measurement accuracy | ± 0.2% (Water as the medium) |
| 3 | Bottle type | Minimum of 200 × 140 × 320mm Maximum 290 × 260 × 400mm (L × W × H) |
| 4 | Fill range | 5-30Kg. |
| 5 | Air source pressure | 0.6-0.8MPa. |
| 6 | Power Supply / Power | ~380V 50Hz/1.0KW. |
| 7 | Overall dimensions | 2235 × 1410 × 2085mm (L × W × H) |
| 8 | Weight | About 1,200 Kg |
Equipment dimension drawing:
Equipment advantages:
1, high accuracy: using the weighing filling system (Mettler-Toledo METTLER TOLEDO weighing sensor) to ensure the high accuracy of filling measurement. Use a unique ball walking bottle way to ensure a smooth bottle exit after filling.
2, designed for the oil industry is faster and stable.
3, adopts the fast and slow filling valve, which effectively ensures the high accuracy of filling measurement.
4, has an independent cylinder controlled residual droplet collection tank under the filling head, tetrafluoride blocking plug, to ensure that the material does not leak outside the bottle mouth after the filling head is closed.
5, electric control system adopts French Schneider configuration, integrated electric control system, more stable, reliable, safe and low energy consumption.
6, host has its own cache barrel for a more stable supply.
Main configuration of the equipment:
| No ial |
First name |
Brand name |
|
1 |
Weing sensor |
METTLER TOLEDO. Mettololedo |
|
2 |
Programmable controller CPU. |
Schneider. Schneider |
| 3 | Touch-screen |
Schneider. Schneider |
| 4 | Converconverter |
Schneider. Schneider |
| 5 | Count photoelectric |
SICK. Schker |
| 6 | Switch on the power supply |
Schneider. Schneider |
| 7 | Pressure switch | SMC. |
| 8 | Cylinder |
FTEC. Eptai |
| 9 | Solenoid valve |
FTEC. Eptai |
| 10 | Button |
Schneider. Schneider |
| 11 | Warning lamp |
Schneider. Schneider |
| 12 | Circuit breaker |
Schneider. Schneider |
