SS304 Frame Piston Filling Machine 8 Heads 80ml-1L With Schneider Control System

Product Details:
Place of Origin: Changzhou, China
Brand Name: JWIM
Certification: CE. ISO9001
Model Number: CCG1000-8AJ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Case Packing, 40HQ FCL or LCL
Delivery Time: 20 Working Days after receiving the bottle & cap samples
Supply Ability: 30 sets/month
Specifications Product Description Request A Quote
Specifications
Specifications
Material: Stainless Steel 304
Filling Head Number: 6/8/12/16/20
Control System: France Schneider
Filling Range: 80ml-1000ml
Optional Function: Weight Feedback System
Filling Type: Piston Filling
External Dimension: 1795*1240*2068mm
Weight: 1000KG
Packing: Wooden Case Packing
Warranty: 1 Year
High Light:

SS304 Frame Piston Filling Machine

,

Schneider Control System Piston Filling Machine

,

8 Heads Piston Liquid Filling Machine

Product Description

SS304 Frame Piston Filling Machine 8 Heads 80ml-1L With Schneider Control System

Introduction

  CCG 1000-8AJ Automatic Piston Filling Machine is the latest generation of improved volume filling machine, which is suitable for the packaging of various water agents and high viscosity products. The whole machine is of in-line structure, driven by servo motor and volume metering filling principle, which realizes high precision of filling dosage. It adopts PLC control, human-machine interface, and the whole machine is easy to operate. The whole machine adopts an arc frame, which is beautiful and generous. High precision electronic scale automatic weighing data transmission system is selected to make dose adjustment more convenient and quick.



Technical Parameters:

1 Capacity

100ml: ≤3000 BPH 500ml: ≤2000 BPH

1000ml:≤1500 BPH

Capacity differs from product, drum, and product characteristic

2 Applicable Bottle Size

Round Bottle: Φ40-95mm Height:80-230mm

Flat/Square Bottle: L: 40-95mm W: 40-95mm H: 80-230mm

3 Filling Volume 50-1000ml
4 Filling Precision

±1g (50-200ml) ±1.5g (200-500ml)

±2g (1000ml)

Capacity differs from product, drum, and product characteristic

5 Product Feeding Height 2012mm
6 Product Feeding Diameter DN40
7 Filling Nozzle Diameter Φ18mm
8 Min Opening Diameter ≥Φ22mm
9 Air Pressure 0.6-0.8MPa
10 Power Source ~380V 50Hz/3.55KW
11 External Dimension 1795×1240×2068mm (L×W×H)
12 Weight About 1000kg

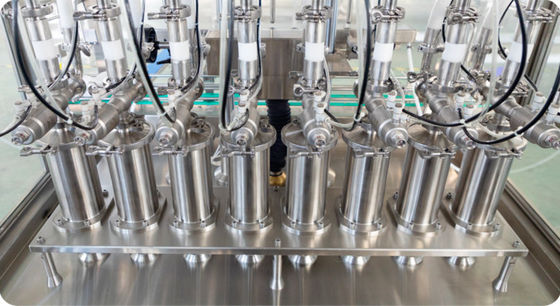

SS304 Frame Piston Filling Machine 8 Heads 80ml-1L With Schneider Control System 0
