Product Details:
|
|
| Place of Origin: | Changzhou, China |
|---|---|
| Brand Name: | JWIM |
| Certification: | CE, ISO9001 |
| Model Number: | GX-12-6B |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Packaging Details: | Wooden Case Packing |
| Delivery Time: | 30 Working Days |
| Supply Ability: | 20 sets/month |
Introduction

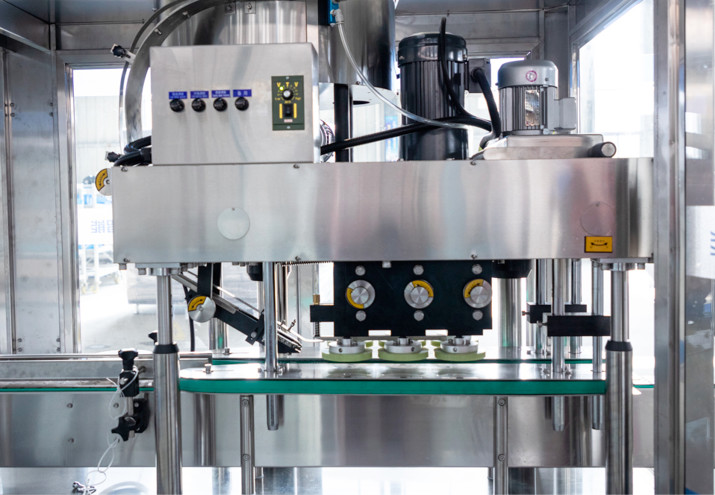

GX-12-6B Automatic Integrated Filling Capping Machine, filling part is driven by servo motor and volume metering filling principle, which realizes high precision of filling dosage. It adopts PLC control, all the operations can be done in the touch screen. Capping part is making up with cap supply, cap scratch, pressing, clamping and conveyor.
The machine has compact structure, small occupation area, integrated filling and capping in one, SUS304 frame and toughened glass door cover which is more safe, environmental-friendly and easy for cleaning.
Technical Parameters:
| 1 | Capacity |
20ml: ≤4000 BPH Capacity differs from product, drum and product characteristic |
| 2 | Applicable Bottle | Diameter: Φ20-60mm Height:50-150m |
| 3 | Applicable Cap | Cap Diameter: Φ20-50mm Height:15-40m |
| 4 | Filling Precision |
±1%-±1.5% Capacity differs from product, drum and product characteristic |
| 5 | Product Feeding Height | 1980mm |
| 6 | Product Feeding Diameter | Φ26mm |
| 7 | Filling Nozzle External Diameter | Φ9mm |
| 8 | Min Opening Diameter | ≥Φ13mm |
| 9 | Air Pressure | 0.6-0.8MPa |
| 10 | Power Source | ～380V 50Hz/3.8KW |

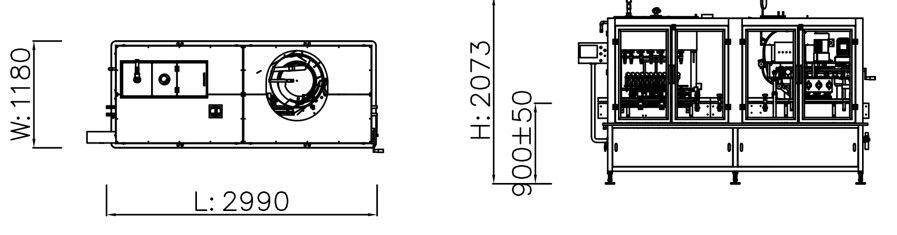

| 11 | External Dimension | 2990×1180×2073mm(L×W×H) |
| 12 | Weight | About 1000kg |
Allocations:
