Place of Origin:
Made in China
Brand Name:
Jinwang
Certification:
CE,CO,ISO
Model Number:
DXD-180D
1. Introduction of Machine

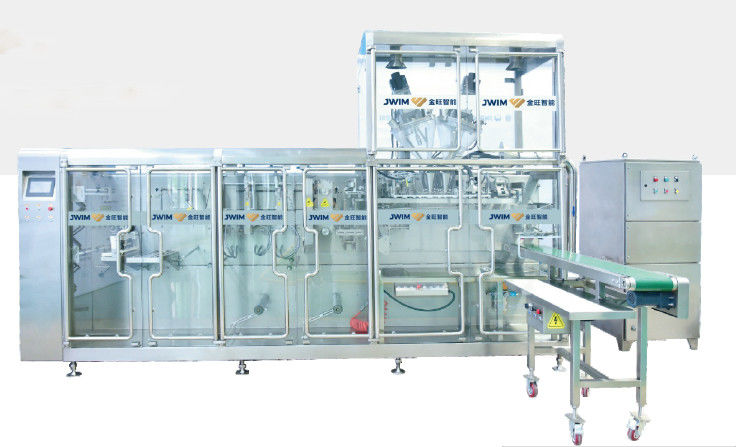

DXD-180D Automatic Horizontal Pouch Packing Machine contains motor film releasing, film-forming, bag bottom sealing, middle sealing, vertical sealing, servo bag pulling, shearing, bag opening, and filling, bag transfer, bag top sealing, and other mechanisms.
The machine has a reasonable design and novel appearance. It adopts standard stripe sealing and changes the filler. It can realize the automatic filling of powder, granule, suspending agent, emulsion, water agent, and other materials on the machine.
2. Parameters of Horizontal Pouch Packing Machine
| Model | DGD-180D |
| Capacity |
40-60Pouches/Min (Single pouch) (40-600)×2=80-120Pouches/Min (Double pouches) |
| Applicable Pouches Size |
Single pouch:70×100mm(Min)； 180×220mm(Max) Double pouches: (70+70)×100mm(Min) (90+90)×160mm(Max) |
| Precision | ±1% |
| Roll film size |
Inner diameter:Φ70-80mm Outer diameter:≤Φ500mm |
| Dust removal pipe diameter | Φ59mm |
| External Dimension | 3456×1000×1510mm(L×W×H) |
| Weight | About 1950Kg |
3. Electrical Configurations
| NO. | Name | Brand |
| 1 | PLC | Schneider |
| 2 | Touch Screen | Schneider |
| 3 | Frequency converter | Schneider |
| 4 | Servo system | Schneider |
| 5 | Color mark detector | SUNX |
| 6 | Switching power supply | Schneider |
| 7 | Vacuum generator | SMC |
| 8 | Cooling Fan | SUNON |
| 9 | Encoder | OMRON |
| 10 | Button | Schneider |
| 11 | MCB | Schneider |
4. Features of Rotary Packaging Machine
a) Real-time monitoring of temperature changes, Central operation control, Servo bag pulling system, and Schneider Electric System
b) Special spraying, SUS304 frame and rod parts, and Plexiglass cover
c) Parts for safety: SUNX color mark detection, Japan SMC vacuum generator, air source processor with air pressure detection, and power phase sequence protector
d) Reserved connectors for fillers
e) Optional functions: Film changing and bag connecting device, Diamond tear, and weighing feedback system
5. Advantages of linear pouch packaging machine
High efficiency, safety, and environmental protection
a) Simple and efficient system
Our machine can help you make the packaged products good-looking, ensure sealing reliability, improve production efficiency, and cut the loss of packaging material.
b) Safe production
Multiple safety protection ensures the stability and reliability of machine operation; SUS304 frame and rod parts have strong firmness and resist corrosion; Special spraying prevents the situation of bag sticking and material sticking; Plexiglass cover prevents dust leakage.
c) Universality of filling device
Reserved connectors for fillers help you change the filler easily by installing the connector and using the function in the touch screen.
