Pesticide and fertilizer spindle automatic capping machine 6000 bottles/hour

Pesticide and fertilizer spindle automatic capping machine 6000 bottles/hour

Spindle Automatic Bottle Capper 2.4KW

100cpm Capacity Automatic Bottle Capper

6000 Bottles Per Hour Automatic Capper

Place of Origin:

made in China

Brand Name:

Jinwang

Certification:

CE,CO,ISO

Model Number:

FXZ-6J

Contact Us
Request A Quote
Product Details
Capacity:
≤100cpm(50/100/400mL)
Applicable Bottle:
Φ35-95mm,H80-300mm
Applicable Cap:
Φ25-50mm,H15-40mm
Air Pressure:
0.5-0.7MPa
Power Supply:
1P/220V/50Hz
Power:
2.4KW
Gross Weight:
850KG
External Dimension:
2000×900×1960mm(L×W×H)
Speed:
Up To 6000 Bottles Per Hour
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiation
Packaging Details
wooden cases
Delivery Time
15-90 work days
Payment Terms
L/C, T/T
Supply Ability
1 oset per month
RELATED PRODUCTS
Contact Us
Contact Now
Product Description

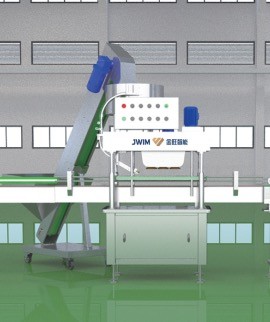

Pesticide and fertilizer spindle automatic capping machine 6000 bottles/hour





1. Product Descripetion



The FXZ-6J Automatic spindle capper is soft rubber spindle cappers designed to automatically place and tighten a wide variety of screw and lug-type closures onto containers. Each tightening spindle is spring-loaded and driven by a torque-sensitive individual motor for the increased disk to cap contact and reduced disk wear. The unique design eliminates the need for transmissions, belts, pulleys, and universal shafts which reduces the size of the machine lowers maintenance time and expands the capability and adjustability of the capper.

Pesticide and fertilizer spindle automatic capping machine 6000 bottles/hour 0





2. Specifications of the Capping Machine





a Capacity ≤100cpm(50/100/400mL)
b Applicable Bottle Φ35-95mm,H80-300mm
c Applicable Cap Φ25-50mm,H15-40mm
d Air Pressure 0.5-0.7MPa
e Power Supply 1P/220V/50Hz
f Power 2.4KW
g Gross Weight 850KG
h External Dimension 2000×900×1960mm(L×W×H)





3. Features of the Capping Machine



a. Jinwang FXZ series cappers work well for closing a wide range of containers with a variety of cap types and sizes.

b. Centrifugal bowl cap orientation
c. Spring loaded spindles for better cap grip and less disc wear
d. Individual spindle speed settings
e. Adjustable angle gripper belts
f. the Whole machine uses the Schneider brand which can make sure the stability of the machine. Heavy-duty stainless steel frame.
g. Ten years sales quantity is over thousands set due to its simple operation.
h. The tightening wheel and belt are of specific processes, it helps to realized lower consumption.

i. Nitrogen Charging device is the optional item

Pesticide and fertilizer spindle automatic capping machine 6000 bottles/hour 1Pesticide and fertilizer spindle automatic capping machine 6000 bottles/hour 2





4. Service



a. Personalization
b. Assistance
c. Remote Support
In light of the risks surrounding Covid-19, at Jinwang we have developed remote support procedures to keep our customers’ orders and production progressing.
We are completing machine FAT’s and demo’s via video conference call and undertaking remote installations to get new machines up and running ASAP.
Documents can be screen-shared, and our teams can connect with your teams to provide the relevant training

Pesticide and fertilizer spindle automatic capping machine 6000 bottles/hour 3



5. About Us



Jiangsu Jinwang Intelligent Sci-tech Co., Ltd, founded in 2005, is headquartered in Changzhou, Jiangsu. JINWANG is a pioneer in Turnkey Agrochemical Solutions to various formulation forms for customers with an aim of providing sustainable and cost-effective manufacturing in a dynamic market. We have been providing packaging equipment to over 3000 agrochemicals factories worldwide over nearly 2 decades. We can provide pesticide preparation plant design, equipment selection, manufacturing, and inspection before shipment and a full range of professional services to customers at home and abroad.



JWIM products focus on the agriculture and animal husbandry industry, so far it has obtained more than 100 patent certificates, among them JWIM intellectual formulation workshop has 8 invention patents and 8 utility model patents. The products have been exported to more than 50 countries at home and abroad. We have provided professional services to more than 3,000 agricultural and animal husbandry customers.

Pesticide and fertilizer spindle automatic capping machine 6000 bottles/hour 4
