Liquid Detergent Pesticide Solvent Bottle Filling Machine 24 Bpm 7.5KW

Product Details:
Place of Origin: made in China
Brand Name: jinwang
Certification: CE,ISO,GMP
Model Number: GX-16-8AH
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden cases
Delivery Time: 15-90 work days
Payment Terms: L/C, T/T
Supply Ability: 1 set per month
Specifications Product Description Request A Quote
Specifications
Specifications
Product Name: GX-16-8AH Following Type Pesticide Filling Machine
Design: High Speed Train Design
Frame: SS304
Nozzle: SS316
Power: 7.5 KW
Nozzle Number: 16
Capping Head: 8
Nozzle Diameter: Φ18mm
Minimum Bottle Opening: ≥Φ22mm
Machine Weight: 4000kg
High Light:

Solvent Bottle Filling Machine 24 Bpm

,

Detergent Bottle Filling Machine 7.5KW

Product Description

Liquid Detergent Pesticide Filling Machine 24 Bpm Bottle Filling Machine Solvent Filling Machine 7.5KW





1. Description of the Liquid Detergent Pesticide Filling Machine



GX-16-8AH filling and capping 2 in 1 machine can perfectly finish the filling and capping process in different kinds of area, such as pesticide, fine chemical, daily chemical, fertilizer, oil and other industries,Following Tpye Pesticide Filling Machine Descripption

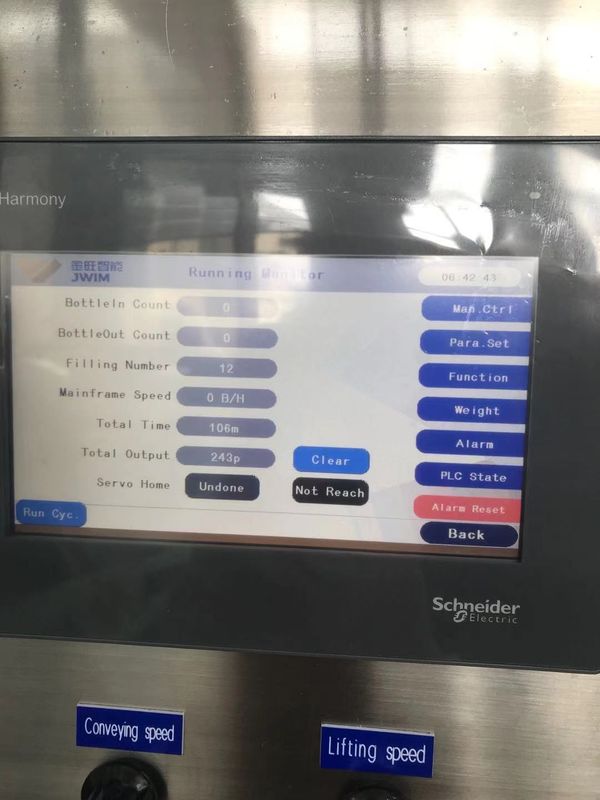

1 Touch screen operation
2 PLC programmable control
3 Accurate sensor,automatic filling materials
4 Filling accuracy 1%
5 Pistons are chrome treated and ground
6 Anti-drip filling nozzie
7 No bottle no filling,automatic shutdown of accumulated bottles
8 Easy to clean
9 Shell 304 material,contact 316 material
10 With glass protective over



Liquid Detergent Pesticide Solvent Bottle Filling Machine 24 Bpm 7.5KW 0

Liquid Detergent Pesticide Solvent Bottle Filling Machine 24 Bpm 7.5KW 1

Liquid Detergent Pesticide Solvent Bottle Filling Machine 24 Bpm 7.5KW 2



2. Pesticide Filling Machine Parameters





1 Capacity ≤9000 Bottles/hour for 100ml size bottle
2 Bottle size Φ30-100mm height 80-250mm
3 Cap size Φ20-80mm height 20-40mm
4 Accuracy ≤±1g(200ml);≤2g(200-1000ml)*water as example
5 Feeding port height 2380mm
6 Feeding port diameter Dn90
7 Nozzle diameter Φ18mm
8 Minimum bottle opening ≥Φ22mm
9 Air pressure 0.6-0.8MPa
10 Power ~380V 50Hz/7.5KW
11 Machine size 5310×1790×2437mm(L×W×H)
12 Machine weight Around 4000kg



Liquid Detergent Pesticide Solvent Bottle Filling Machine 24 Bpm 7.5KW 3

Liquid Detergent Pesticide Solvent Bottle Filling Machine 24 Bpm 7.5KW 4



3.Service

a. Personalization
b. Assistance
c. Remote Support
In light of the risks surrounding Covid-19, at Jinwang we have developed remote support procedures to keep our customers’ orders and production progressing.
We are completing machine FAT’s and demo’s via video conference call and undertaking remote installations to get new machines up and running ASAP.
Documents can be screen-shared, and our teams can connect with your teams to provide the relevant training

Liquid Detergent Pesticide Solvent Bottle Filling Machine 24 Bpm 7.5KW 5

Liquid Detergent Pesticide Solvent Bottle Filling Machine 24 Bpm 7.5KW 6
