Product Details:
|
|
| Place of Origin: | made in China |
|---|---|
| Brand Name: | jinwang |
| Certification: | CE,CO,ISO |
| Model Number: | FXZ-6J |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | wooden cases |
| Delivery Time: | 15-90 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1 set per month |
Pesticide and fertilizer linear automatic spindle capping machine Spindle capping machine
1. Introduction of the Spindle Capper Machine

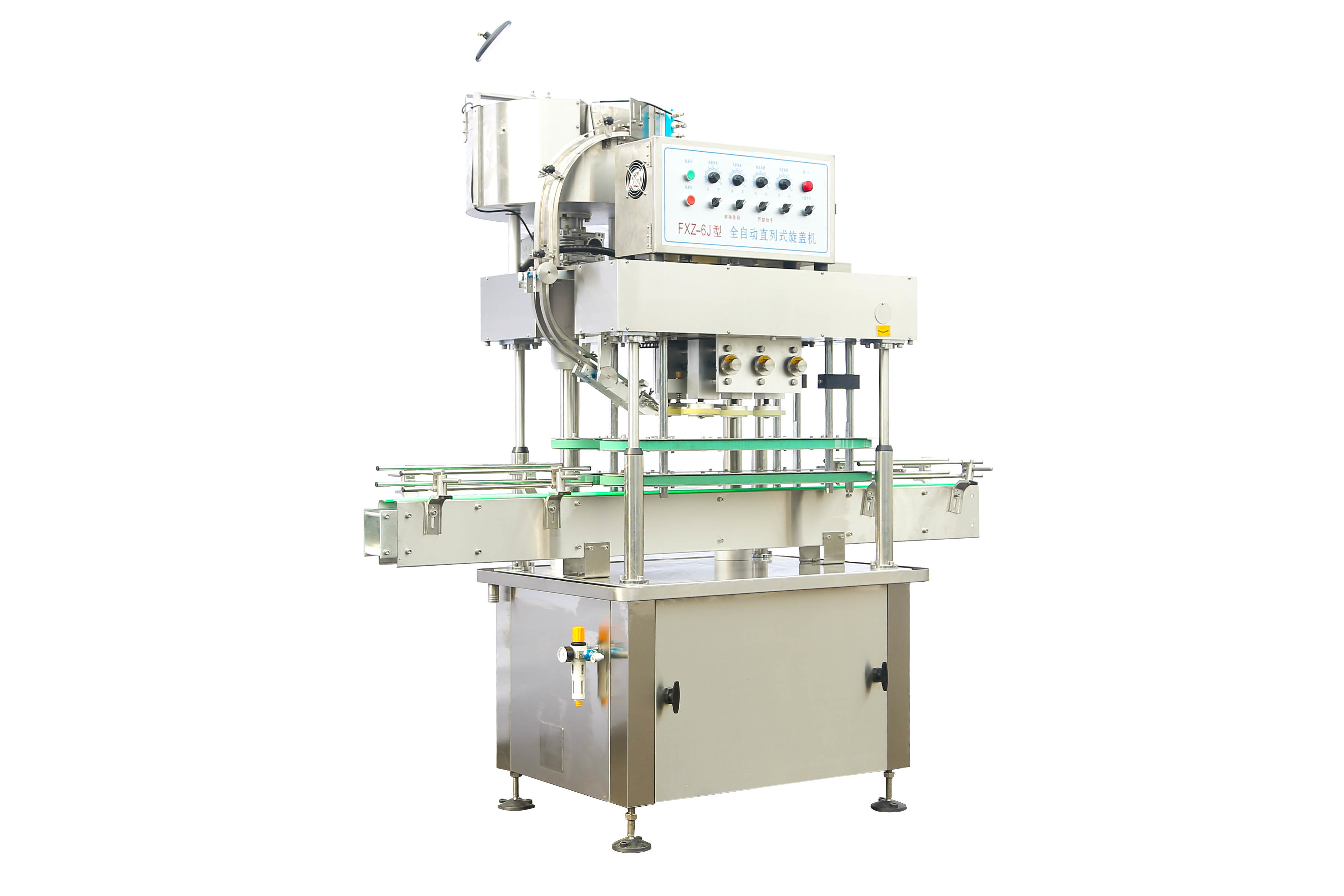

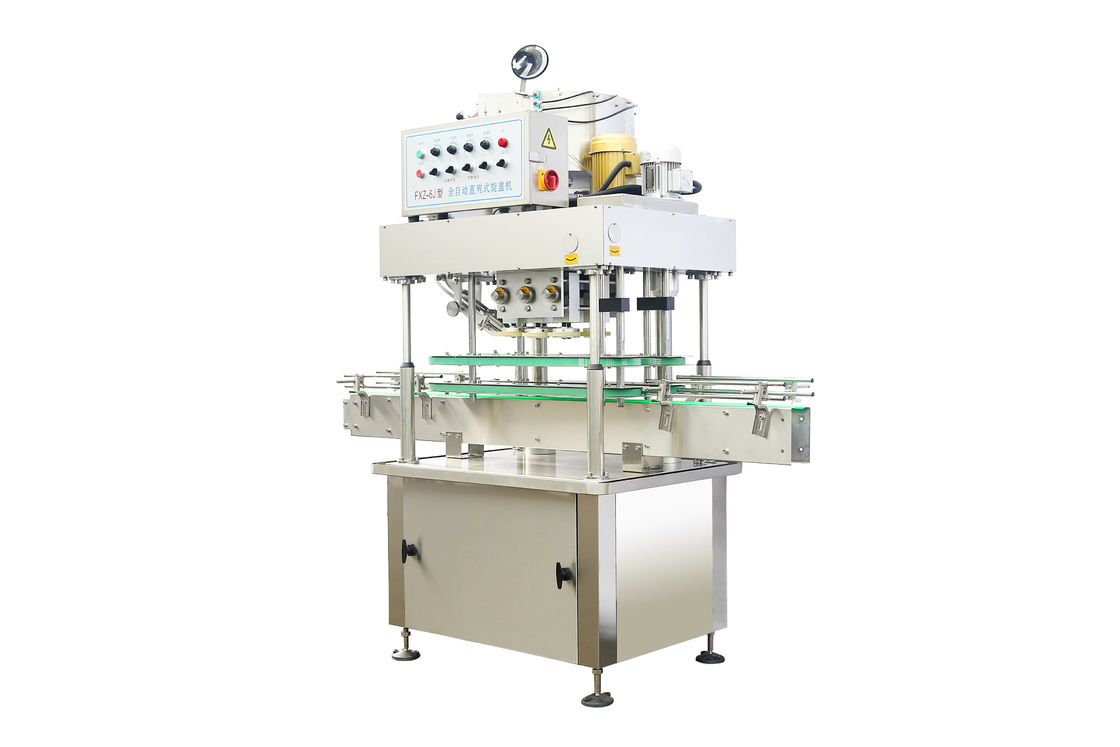

The FXZ-6J Automatic spindle capper is soft rubber spindle cappers designed to automatically place and tighten a wide variety of screw and lug-type closures onto containers. Each tightening spindle is spring-loaded and driven by a torque-sensitive individual motor for the increased disk to cap contact and reduced disk wear. The unique design eliminates the need for transmissions, belts, pulleys, and universal shafts which reduces the size of the machine lowers maintenance time and expands the capability and adjustability of the capper.
2. Technical Parameters of the Spindle Capper Machine
| 1 | Capacity | ≤100cpm(50/100/400mL) |
| 2 | Applicable Bottle | Φ35-95mm,H80-300mm |
| 3 | Applicable Cap | Φ25-50mm,H15-40mm |
| 4 | Air Pressure | 0.5-0.7MPa |
| 5 | Power Supply | 1P/220V/50Hz |
| 6 | Power | 2.4KW |
| 7 | Gross Weight | 850KG |
| 8 | External Dimension | 2000×900×1960mm(L×W×H) |
3. Key Features of the Spindle Capper Machine
1. Jinwang FXZ series cappers work well for closing a wide range of containers with a variety of cap types and sizes.
2. Centrifugal bowl cap orientation
3. Spring loaded spindles for better cap grip and less disc wear
4. Individual spindle speed settings
5. Adjustable angle gripper belts
6. the Whole machine uses the Schneider brand which can make sure the stability of the machine. Heavy-duty stainless steel frame.
7. Ten years sales quantity is over thousands set due to its simple operation.
8. The tightening wheel and belt are of specific processes, it helps to realized lower consumption.
9. Nitrogen Charging device is the optional item
