Product Details:
|
|
| Place of Origin: | made in China |
|---|---|
| Brand Name: | jinwang |
| Certification: | CE,CO,ISO |
| Model Number: | LP-200D |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | negotiation |
| Packaging Details: | wooden cases |
| Delivery Time: | 15-90 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1 set per month |

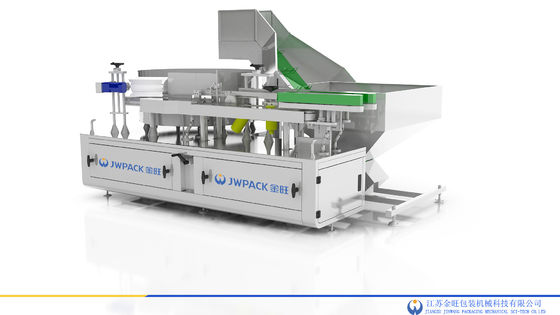

2Kw glass Bottle Unscrambler Machine Feeder High speed 6000 Bph
1. Introduction of 80-1000ml bottle unscrambler machine
LP-200D full-automatic bottle unscrambler machine consists of elevator, bottle sorting turntable, bottle rejecting parts, bottle sorting parts, reversed bottle rejecting parts and electric box. The adjustment is simpler and the specification adjustment can be completed within 10 minutes.
2. Parameters of 80-1000ml bottle unscrambler machine
| 1 | Speed of Unscrambling | 100mL:≤10000 Bottles/Hour 500mL:≤6000 Bottles/Hour |
| 2 | Applicable Bottle Size | Φ45-95mm |
| 3 | Applicable Bottle Height | 80-240mm |
| 4 | Air Pressure | 0.5-0.7MPa |
| 5 | Power Source | ～200V 50Hz / 2KW |
| 6 |
Size (Bottle elevator included) |
3600×1813×1800 mm(L×W×H) |
| 7 |
Size (Bottle elevator excluded) |
2850×1513×1300 mm(L×W×H) |
| 8 | Weight | Around 800Kg |
3. Advantages of 80-1000ml bottle unscrambler machine
1 Compact structure, less land occupation, simple, one key adjustment in the touch screen. Good versatility. 50-1000ml bottles can be suitable.
2 Molds do not needed when you change different size. What you need to do is to change the quantity of belts in rotary plate and to adjust the distance between different unscrambling parts. You can adjust the distance between belts by adjusting crank. Hand cranking and scaling are convenient.
