CCG5000-6TS
1200BPH Pesticide Filling Line Machine 1-5L 6 Nozzles Packing Machine Drillling And Milling
1. Introduction

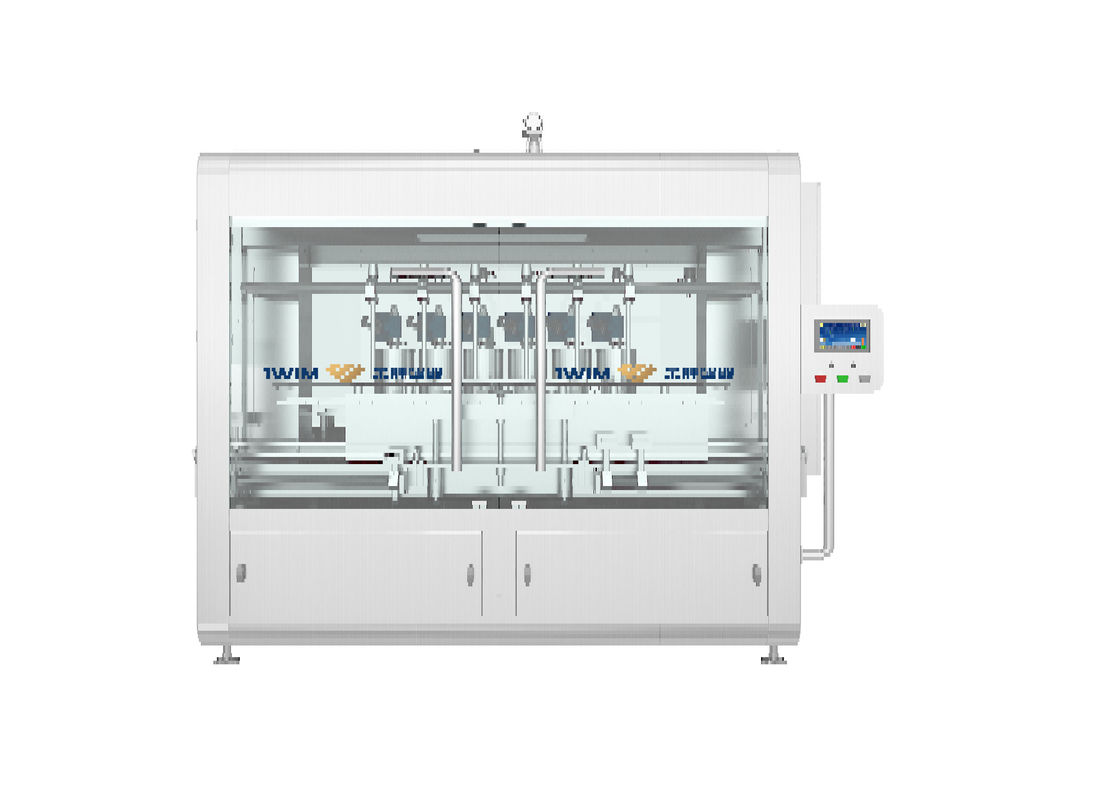

CCG5000-6TS Automatic Piston Filling Machine is suitable for the packaging of various water agents and high viscosity products. The whole machine is of in-line structure, driven by servo motor and volume metering filling principle, which realizes high precision of filling dosage. It adopts PLC control, human-machine interface, and the whole machine is easy to operate.
2. Machine Dimension
3. Technical Parameters of 1200BPH Pesticide Filling Line Machine
| 1 | Capacity |
1000ml: ≤1200 BPH 5000ml:≤600 BPH Capacity differs from product, drum and product characteristic |
| 2 | Applicable Bottle Size |
Round Bottle: Φ80-140mm Height:140-340mm Flat/Square Bottle: L: 80-200mm W: 80-140mm H: 140-340mm |
| 3 | Filling Volume | 1000ml-5000ml |
| 4 | Filling Precision |
Precision differs from product, drum and product characteristic |
| 5 | Product Feeding Height | 2550mm |
| 6 | Product Feeding Diameter | DN40 |
| 7 | Filling Nozzle Diameter | Φ26mm |
| 8 | Min Opening Diameter | ≥Φ30mm |
| 9 | Air Pressure | 0.6-0.8MPa |
| 10 | Power Source | ～380V 50Hz/2.2KW |
| 11 | External Dimension | 2365×1600×2750mm(L×W×H) |
| 12 | Weight | About 2100kg |
4. Allocations of CCG5000-6TS Automatic Piston Filling Machine
| No. | Name | Brand |
| 1 | PLC | Schneider |
| 2 | HMI | Schneider |
| 3 | Inverter | Schneider |
| 4 | Servo System | Schneider |
| 5 | Counting Sensor | SICK |
| 6 | Proximity Switch | Schneider |
| 7 | Power Switch | Schneider |
| 8 | Pressure Gauge | SMC |
| 9 | Cylinder | FTEC |
| 10 | Solenoid Valve | FTEC |
| 11 | Button | Schneider |
| 12 | Alarm Light | Schneider |
| 13 | Circuit Breaker | Schneider |
5. Features
a) It is widely used for the automatic filling from 1L-5L in agrochemical, animal medicine, chemical, fertilizer, personal care products, oil, and other related industries.
b)The filling unit uses a piston-off structure, it can completely discharge the product in the tank, effectively avoiding cross-contamination. This structure also makes the sealing ring changing easier.
c)Jinwang uses PLC control, servo motor drives the synchronous belt+stable operated double screw rod lifting structure to make sure the high precision of piston movement and filling. The synchronous belt will not break with embedded metal wire. At present, first-class packaging manufacturers are using this structure. Compared with similar products on the market, it adopts a common motor + encoder and chain drive structure. After a long time of usage, the tensile chain will affect the filling accuracy and equipment stability.
