Place of Origin:
Made in China
Brand Name:
Jinwang
Certification:
CE, ISO
Model Number:
FX-1D

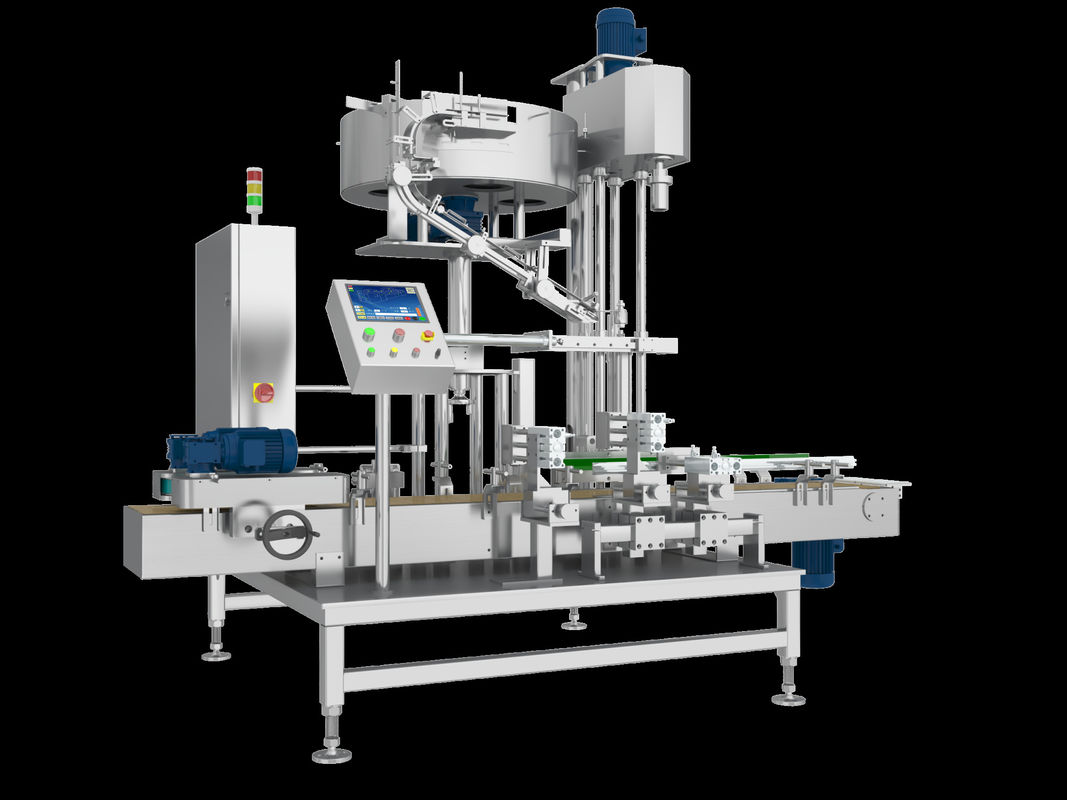

1. Introduction of FX-1D single head capping machine
FX-1D single head capping machine is composed of cap sorting &conveying mechanism, cap grabbing & capping mechanism, conveying mechanism, and control system. The whole machine has a simple structure and convenient adjustment. It is suitable for automatic capping of 5-30l barrels.
2. Parameters of Capping Machine
1 | Capacity | ≤500 barrels/hour |
2 | Distance from liquid level to the bottle mouth | ≥200mm |
3 | Qualified rate | ≥99% |
4 | Applicable bottle size | Min:140×200×320mm Max:260×290×410mm |
5 | Applicable cap size | Φ35-75mm H20-40mm |
6 | Air pressure | 0.6MPa |
7 | Power supply | ~220V 50Hz |
8 | Power | 2.0KW |
9 | Machine weight | 800Kg |
10 | Machine size | 2195×1490×1950mm(L×W×H) |
3. Electrical configurations
S/N | Name | Brand |
1 | PLC | Schneider |
2 | Touch screen | Schneider |
3 | Frequency converter | Schneider |
4 | Counting sensor | Sick |
5 | Switching Mode Power Supply | Schneider |
6 | Pressure switch | SMC |
7 | Cylinder | FTEC |
8 | Solenoid valve | FTEC |
9 | Buttons | Schneider |
10 | Breaker | Schneider |
3. Key Features of Automatic Capping Machine
a. Easy to Set-up
b. Easy to Adjust
c. Less than 500 Barrels/Hour
d. Stainless Steel and Anodized Aluminum Construction
e. Touchscreen Display & Navigation
f. Calculates and Displays the Production Rate
4. Advantages
a. It is widely used in the automatic capping of 5-30l square and flat bottles in pesticide, fine chemical industry, daily chemical industry, fertilizer, oil, and other industries.
b. It adopts Schneider configuration and integrated electric control system, which is more stable, reliable, safe, green, and low energy consumption.
c. High-precision: The cap is screwed by an independent motor, and the torque is adjustable without damaging the cap, so as to ensure that the torque of the cover is constant, and the qualified rate is 100%.
d. The mold automatically positions the cap, the screwing process is stable and without bottle shaking.
e. The enlarged cap sorter is easy to adjust and suitable for all kinds of general cap types.
