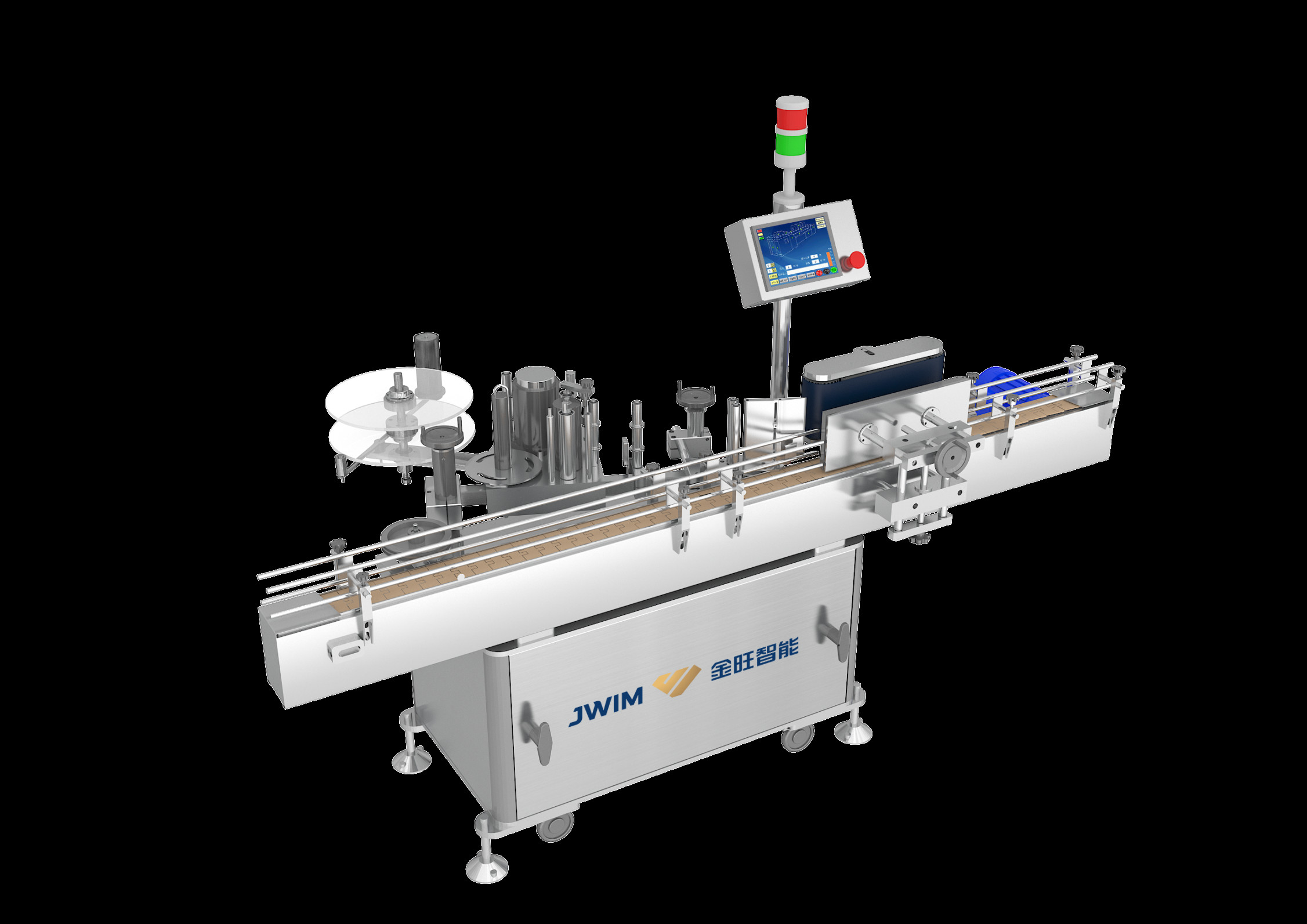

Wine Self Adhesive Automatic Sticker Labeling Machine 7200pcs/H

Wine Self Adhesive Automatic Sticker Labeling Machine 7200pcs/H

7200pcs/H Automatic Sticker Labeling Machine

Self Adhesive Automatic Sticker Labeling Machine

Servo Motor Automatic Wine Bottle Labeler

Place of Origin:

made in China

Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
Product Name:
Suitable For Bottle Diameter:
Φ35-95 Mm
Label Height:
20-140 Mm
Lag Length:
50-320 Mm
Marking Accuracy:
± 1 Mm
Production Capacity:
≤ 7,200 Bottles / H
Power Supply:
~220 V, 50 Hz
Total Power:
1.7 KW
Approximately 350 Kg
Overall Dimensions:
2500 × 1000 × 1700 Mm (long × Wide × High)
Payment & Shipping Terms
Minimum Order Quantity
1 set
Packaging Details
Wooden cases
Delivery Time
15-90 work days
Payment Terms
L/C, T/T
Supply Ability
1 set per month
Contact Us
Contact Now
Product Description

7200pcs/h Automatic Sticker Labeling Machine Self-adhesive Wine Automatic Bottle Labeler


1. Overview of the Automatic Sticker Labeling Machine


  TN-150A intelligent dry adhesive labeling machine adopts programmable control, touch human-machine interface, and servo drive labeling. The whole machine is convenient and intuitive, and has rich help functions and fault display functions. Automatic sticker labeling for various round containers.

Wine Self Adhesive Automatic Sticker Labeling Machine 7200pcs/H 0


2. Characteristics of the Automatic Sticker Labeling Machine


2.1 Servo motor drive labeling mechanism is controlled by PLC program to ensure high speed and high accuracy


2.2 The marking parts adopt a handle-dimensional spatial adjustment mechanism, even if the tapered bottle can be adjusted.


2.3 Adopt the double split bottle wheel structure of the independent motor to make the spacing of the bottle to be labeled more accurate and consistent.


2.4 The independent motor rolling structure is adopted to make the synchronization between the rolling mark and the marking consistent and greatly improve the marking accuracy.


2.5 The bid transmitter adopts the golden steel sand imported from foreign countries, and the drive roller structure: the excellent friction and non-skid characteristic ensures the lasting stability of the bid delivery function.


2.6 The whole machine combines the roller with the foot to make the equipment move more effortlessly and conveniently.


2.7 The center seat of the label plate is made of soft polyurethane and can meet the label volume with different sizes in the label volume within a certain range.


2.8 With winding labels on the equipment to facilitate the change of operators.

Wine Self Adhesive Automatic Sticker Labeling Machine 7200pcs/H 1


3. Technical parameters  of  Automatic Sticker Labeling Machine


3.1 Suitable for bottle diameter: Φ35-95 mm


3.2 Label height: 20-140 mm


3.3 Lag length: 50-320 mm


3.4 marking accuracy: ± 1 mm


3.5 Production Capacity: ≤ 7,200 bottles / h


3.6 power supply: ~220 V, 50 Hz


3.7 Total power: 1.7 kW


3.8 Weight: approximately 350 kg


3.9 overall dimensions: 2500 × 1000 × 1700 mm (long × wide × high)

Wine Self Adhesive Automatic Sticker Labeling Machine 7200pcs/H 2


4. Equipment configuration table



No. Name Location Brand name
1 Programmable controller Japan The Omron
2 Servo system France Schneider
3 Touch screen Japan The Omron
4 Converconverter Japan The Omron
5 Check the bottle of photoelectric Japan Oppz
6 Switch on the power supply France Schneider
