Linear Bottle Cap Screwing Automatic Capping Machine 7000BPH 2.4KW 50ML-1000ML

Product Details:
Place of Origin: China
Brand Name: Jinwang
Certification: CE, ISO
Model Number: FXZ-6J
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 15-90 working days
Payment Terms: L/C, T/T
Supply Ability: 1 set/month
Specifications Product Description Request A Quote
Specifications
Specifications
Name: FXZ-6J Automatic Capping Machine
Capping Speed: Max 7000 Bottles/hour
Voltage: 220V
Automatic Grade: Automatic
Type: Capping Machine
External Dimension: 2000*900*1960mm(L*W*H)
Weight: About 850kg
Applicable Bottle Size: Φ35-95mm, H80-230mm
Power: 2.4KW
Warranty: 1 Year
High Light:

Automatic Capping Machine 7000BPH

,

2.4KW Linear Automatic Capping Machine

,

50ML Linear Bottle Screw Capping Machine

Product Description

7000BPH 2.4KW 50ML-1000ML Automatic Linear Bottle Cap Screwing Capping Machine

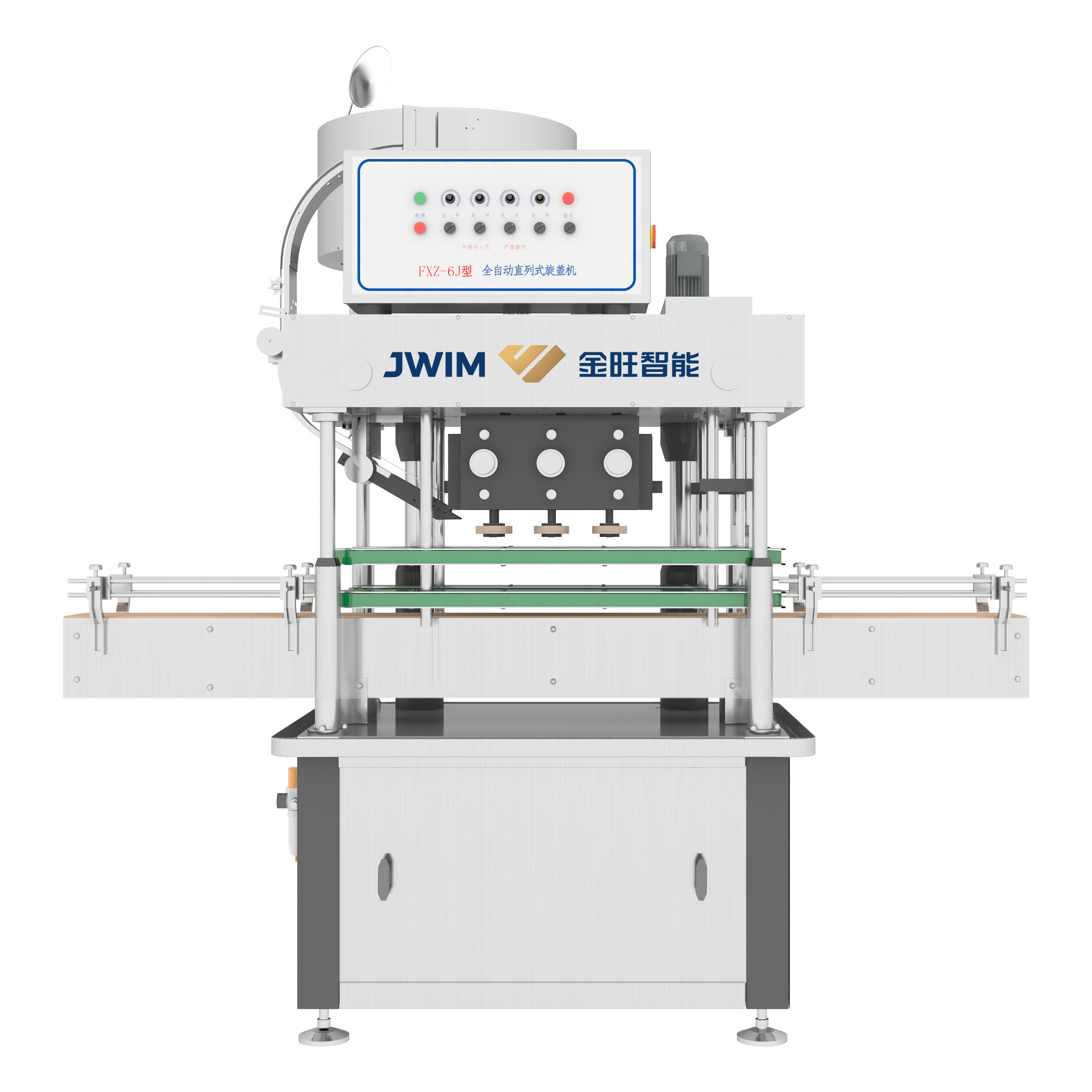

1. Product Introduction of FXZ-6J Automatic Bottle Capping Machine



FXZ-6J is a fully automatic in-line capping machine, suitable for capping of bottles less than one liter, with a maximum capacity of 7000 bottles per hour depending on the size of the bottle. The machine includes a rational cap barrel and a cap drop slot, a bottle clamping transmission mechanism, and a capping wheel transmission mechanism. During the horizontal movement of the bottle under the action of the bottle clamping belt, the action of scraping, pressing and screwing the cap is completed.

Linear Bottle Cap Screwing Automatic Capping Machine 7000BPH 2.4KW 50ML-1000ML 0

Linear Bottle Cap Screwing Automatic Capping Machine 7000BPH 2.4KW 50ML-1000ML 1



2. Technical Parameters of FXZ-6J Screwing Bottle Capping Machine



Capacity



≤7000 BPH

*The actual production capacity varies according to the product size and packaging material.



Applicable Bottle Size



≤1L: Φ35-95mm, height 80-230mm



Cap Size



Φ20-50mm, height 15-40mm



Power Supply



~220V, 50Hz



Weight



850kg



Machine Size



2000*900*1960mm(L*W*H)







3. Working Process



Linear Bottle Cap Screwing Automatic Capping Machine 7000BPH 2.4KW 50ML-1000ML 2



① Cap sorting (cap sorting by rotary table, front cap goes into cap falling groove, reverse cap will be kicked back to cap sorter)
② Bottle feeding (before entering the capping station, use the belt to clamp the bottle and feed the bottle separately)
③ Scrape the cap (scraping the cap at the bottle mouth to fix the cap)
④ Screw cap (use 3 groups of wheels to screw the cap)
⑤ Bottle out (after capping, the bottle out of the equipment)



4. Advantages of FXZ-6J Automatic Bottle Capping Machine



① Good versatility. It can meet the capping production of most bottle types in the industry.

Linear Bottle Cap Screwing Automatic Capping Machine 7000BPH 2.4KW 50ML-1000ML 3



② Cost-effective. The machine is a classic model, simple and practical.

Linear Bottle Cap Screwing Automatic Capping Machine 7000BPH 2.4KW 50ML-1000ML 4



③ Schneider Electric. The whole machine adopts Schneider's latest low-energy inverter, which is safer. 20% lower energy consumption than other brands.

Linear Bottle Cap Screwing Automatic Capping Machine 7000BPH 2.4KW 50ML-1000ML 5



5. Why Choose Us?



Our company(JWIM) focuses on the agriculture and animal husbandry industry, and so far it has obtained more than 100 patent certificates, among which are 8 invention patents and 8 utility model patents of JWIM intellectual formulation workshop. Our products have been exported to more than 50 countries all over the world. We have provided professional services to more than 3,000 agricultural and animal husbandry customers.



We have an after-sales team of 200 service engineers, including 50 overseas after-sales service engineers, serving Vietnam, Indonesia, Thailand, the Philippines and other countries all over the world. The global Internet service center can provide remote services to help customers solve problems online.
