Place of Origin:
CHINA
Brand Name:
JWIM
Certification:
CE,ISO
Model Number:
FX-6AS

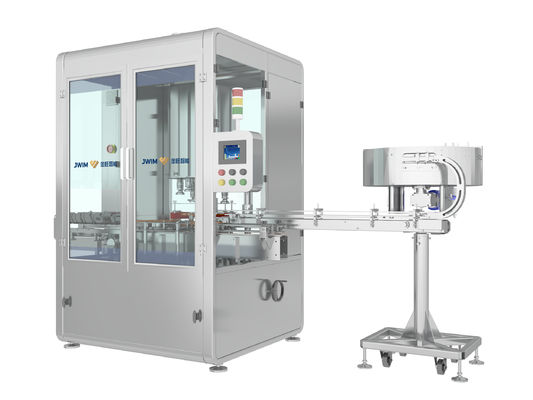

Introduction of Rotary Automatic Capping Machine
This machine combines bottle-feed, cap-sorter, cap-elevator, capping altogether in one. The rotary structure catches the caps in the certain position, which is very stable and reliable. When compared with foreign capping machine, it also boasts high capping efficiency, high qualification, and wide application. It is applicable to various size of glass and plastic bottles and caps.
Parameters of Rotary Automatic Capping Machine
| 1 | Speed | ≤6500 bottles/hour(100mL) |
| 2 | Qualified rate | ≥99.5% |
| 3 | Suitable bottle size |
Round bottle Φ40-90mm H 80-230mm Square bottle L 45－110mm W 45－60mm H 80－230mm |
| 4 | Cap size | Φ25-60mm H20-40mm |
| 5 | Capping head | 6 heads |
| 6 | Air pressure | 0.6-0.8 Mpa |
| 7 | Power supply | ～380V 50Hz/4.0KW |
| 8 | Machine weight | Around 1600Kg |
| 9 | Machine size | 1995×1300×2246mm(L×W×H) |
Featuresof Rotary Automatic Capping Machine
1 Fast-loading mold design, mold replacement without tools, mold engraving marking according to different bottles, replacement is more convenient and fast, bottle type switching time is shorter.
2 All transmission parts are equipped with clutch protection switch. When the bottle input-output star wheel is jammed or the spindle torque is overloaded, the system will automatically disconnect and stop the machine,then sound the alarm. so as to protect the equipment from damage and improve the service life. Other similar capping machines on the market do not have this function.
